4301932
4289523
4289534
1
1
2
3
4
5
6
7
8
21
23
23
23
24
25
25
26
26
27
28
29
29
29

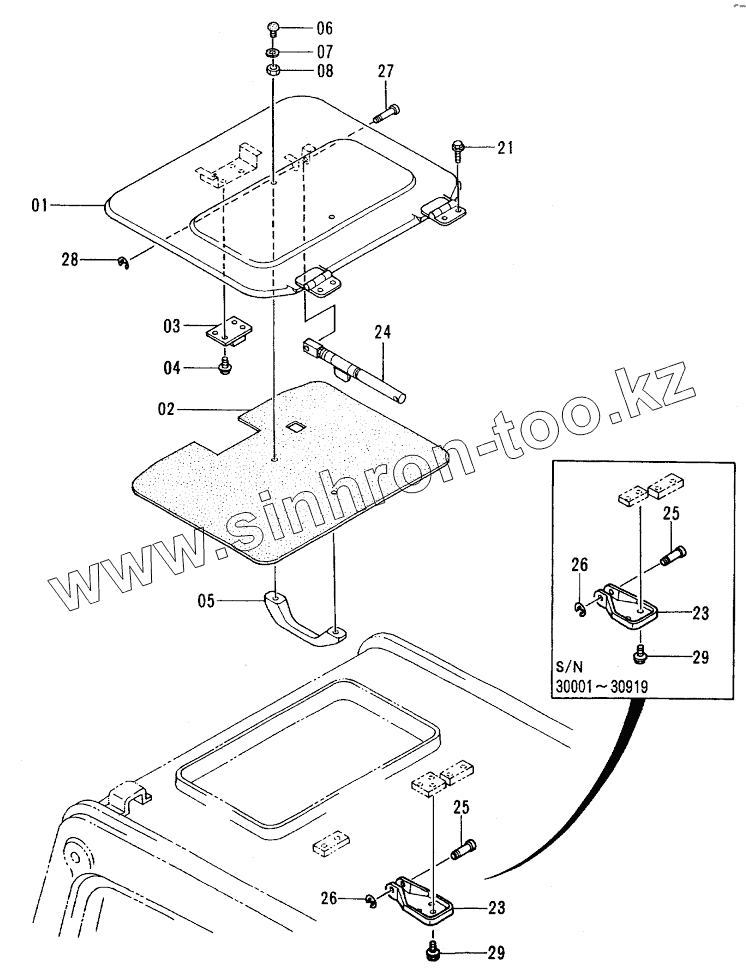

Позиция на иллюстрации
Заводской номер детали
Название детали
4301932
4301932
ROOF ASSY
4289523
4289523
ROOF ASSY
4289534
4289534
ROOF STAY ASSY
1
4295556
COVER
1
4301933
COVER
2
4295557
TRIM, PAD
3
4204578
LOCK
4
J680516
SCREW, SEMS
5
4204579
HANDLE
6
4204580
STOPPER
7
4204581
RUBBER
8
M500504
NUT
21
4295487
BOLT, SEMS
23
4295553
BRACKET
23
4310280
BRACKET
24
4295554
LOCK
25
4295555
PIN
26
4295653
RING
27
4295555
PIN
28
4295653
RING
29
J010612
BOLT
29
J010612
BOLT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
