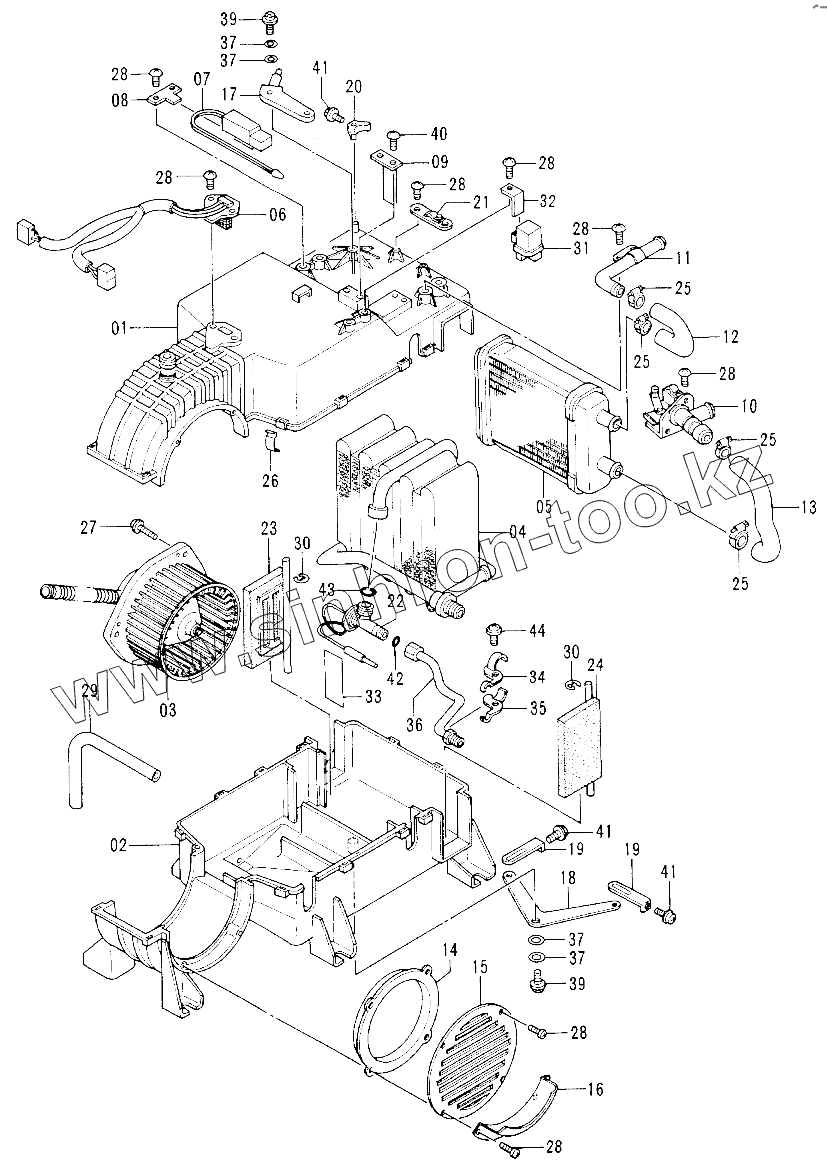

Каталог запасных частей к технике: Hitachi EX-100-2. AIR-CON. UNIT
4291306
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
25
25
25
26
27
28
28
28
28
28
28
28
28
29
29
30
30
31
32
33
34
35
36
37
37
37
37
39
39
40
41
41
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4291306 | 4291306 | AIR-CON. | |
| 1 | 4297393 | CASE | |
| 2 | 4297394 | CASE | |
| 3 | 4295534 | MOTOR | |
| 4 | 4297395 | EVAPORATOR | |
| 5 | 4295535 | CORE, HEATER | |
| 6 | 4295536 | RESISTOR | |
| 7 | 4297396 | AMP | |
| 8 | 4297397 | BRACKET | |
| 9 | 4297398 | BRACKET | |
| 10 | 7295537 | VALVE | |
| 11 | 4297399 | PIPE | |
| 12 | 4297400 | HOSE | |
| 13 | 4297401 | HOSE | |
| 14 | 4297402 | COVER | |
| 15 | 4295541 | COVER | |
| 16 | 4295542 | COVER | |
| 17 | 4297403 | LEVER | |
| 18 | 4297404 | LEVER | |
| 19 | 4297405 | LEVER | |
| 20 | 4297406 | CAM | |
| 21 | 4297407 | BRACKET | |
| 22 | 4297408 | VALVE | |
| 23 | 4297409 | DOOR | |
| 24 | 4297410 | DOOR | |
| 25 | 4295543 | CLAMP | |
| 26 | 4295544 | CLAMP | |
| 27 | 4296797 | SCREW, SEMS | |
| 28 | 4296798 | SCREW | |
| 29 | 4297411 | HOSE | |
| 29 | 4300068 | HOSE | |
| 30 | 4146370 | RING | |
| 31 | 4297413 | RELAY | |
| 32 | 4297414 | BRACKET | |
| 33 | 4297415 | TAPE | |
| 34 | 4297416 | CLAMP | |
| 35 | 4297417 | CLAMP | |
| 36 | 4297418 | PIPE | |
| 37 | 4297419 | SPACER | |
| 39 | J460510 | SCREW, SEMS | |
| 40 | 4298654 | SCREW | |
| 41 | J460308 | SCREW, SEMS | |
| 42 | 4298652 | O-RING | |
| 43 | 4298653 | O-RING | |
| 44 | J460514 | SCREW, SEMS |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
