Каталог запасных частей к технике: Hidromek HMK 62SS. WINDOWS, FRONT - REAR (C00025 -)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30

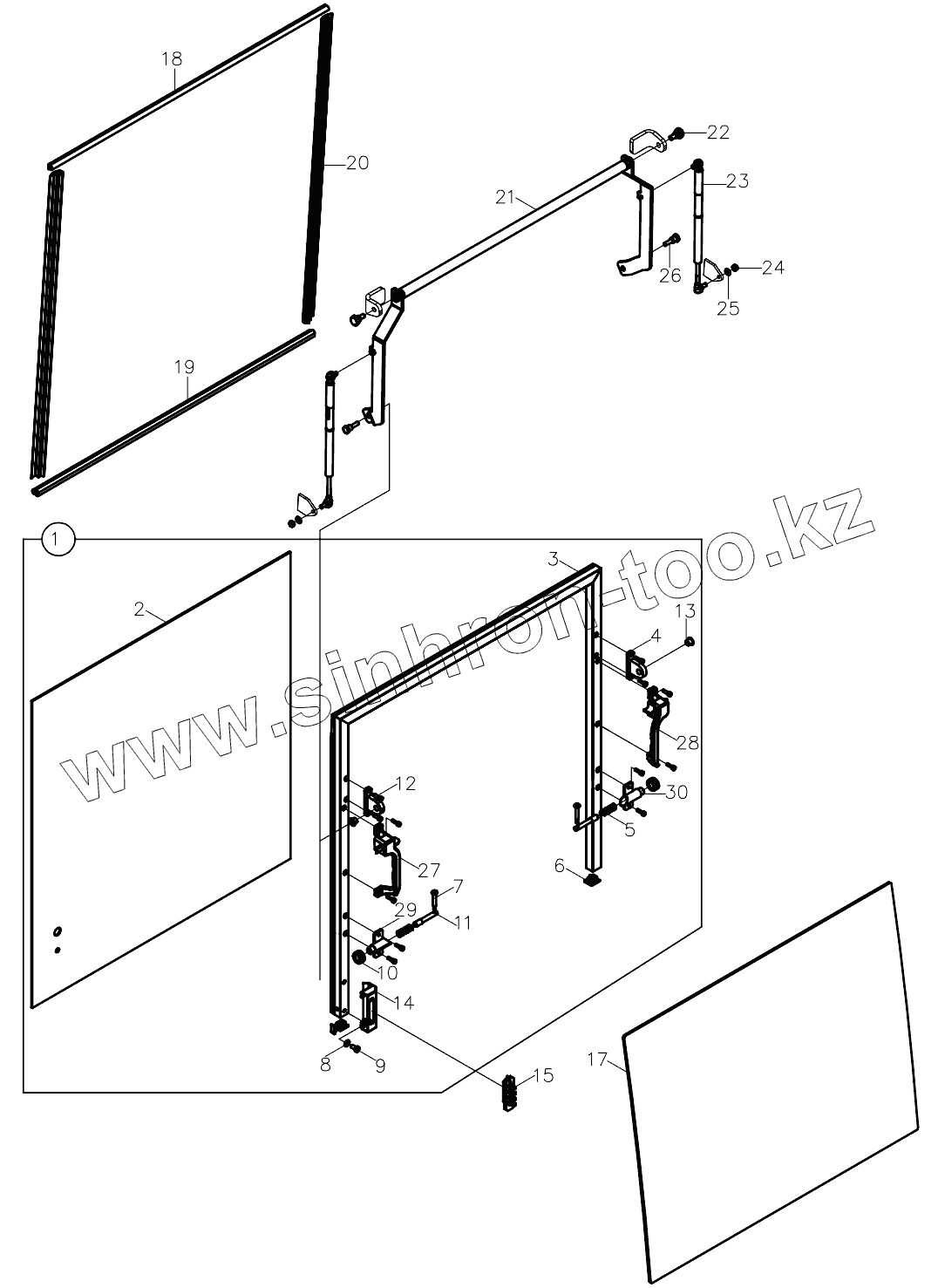

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | M116000400 | BACKHOE SIDE, REAR WINDOW COMPL. | |
| 2 | M116003100 | BACKHOE SIDE, REAR WINDOW | |
| 3 | M116003800 | FRAME, REAR WINDOW | |
| 4 | M116005900 | REAR WINDOW MECHANISM BRACKET SLIDE | |
| 5 | M116004400 | SPRING | |
| 6 | M116018600 | COVER | |
| 7 | M116004500 | MECHANISM LEVER | |
| 8 | N03/0100017 | Washer, Pln. | |
| 9 | N01/0222090 | BOLT M8x16 | |
| 10 | N09/0404903 | BEARING | |
| 11 | M116004700 | MECHANISM PIN | |
| 12 | N01/5870316 | BOLT | |
| 13 | F99/14898 | BUSHING | |
| 14 | M116003900 | SWITCH MONTING PLATE | |
| 15 | 554/00601 | Switch | |
| 16 | 554/00611 | Switch | |
| 17 | M116000300 | GLASS, FRONT | |
| 18 | M11/6004900 | STRIP, REAR UPPER | |
| 19 | M116004800 | STRIP, REAR LOWER | |
| 20 | S3300656 | STRIP | |
| 21 | M116001600 | GLASS REAR MECHANISM | |
| 22 | 813/00165 | BOLT | |
| 23 | M116001700 | DAMPER | |
| 24 | N02/5900062 | Washer, Pln. | |
| 25 | N03/0100017 | Washer, Pln. | |
| 26 | M116002500 | BOLT | |
| 27 | S3300645 | FRAME, HANDLE, RIGHT | |
| 28 | S3300640 | FRAME, HANDLE, LEFT | |
| 29 | M116005700 | REAR WINDOW SLIDE LATCH, LEFT | |
| 30 | M116005800 | REAR WINDOW SLIDE LATCH, RIGHT | |
| 31 | M116016200 | COVER |
