1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16

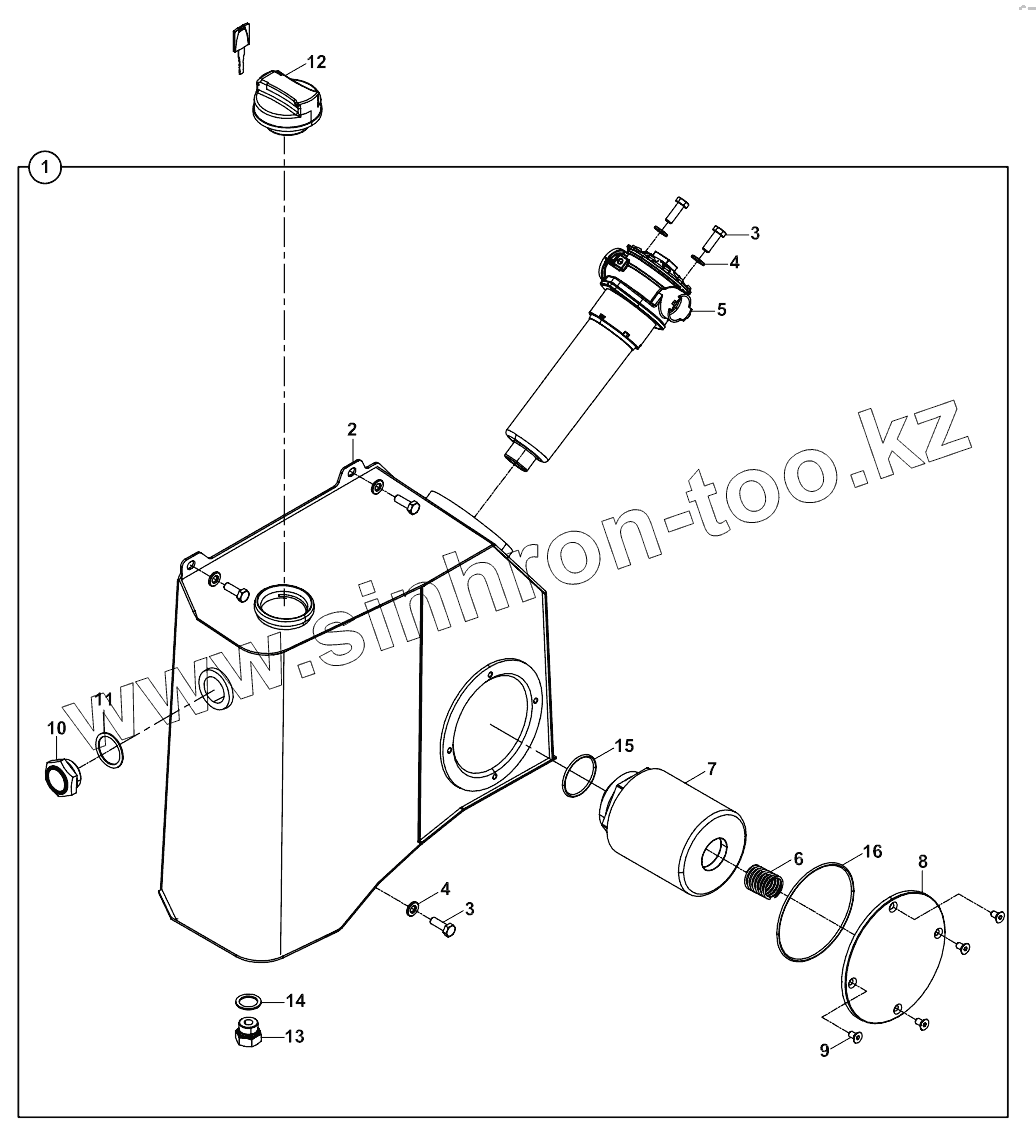

Позиция на иллюстрации
Заводской номер детали
Название детали
1
M113400100
TANK HYDRAULIC, ASSY
2
M113400200
TANK HYDRAULIC
3
N01/0380566
Bolt, Hex.
4
N03/0810015
Washer
5
M113402500
FILTER, RETURN
6
M113402400
SPRING
7
M113401900
FILTERI SUCTION
8
M113401600
COVER
9
N04/4320484
Screw
10
F99/14030
Indicator, oil lever
11
F99/15160
GASKET
12
F99/15022
Cap, hyd Filler
13
814/03010
PLUG
14
N03/0000025
WASHER
15
N10/2005735
O-RING
16
N10/2014235
O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
