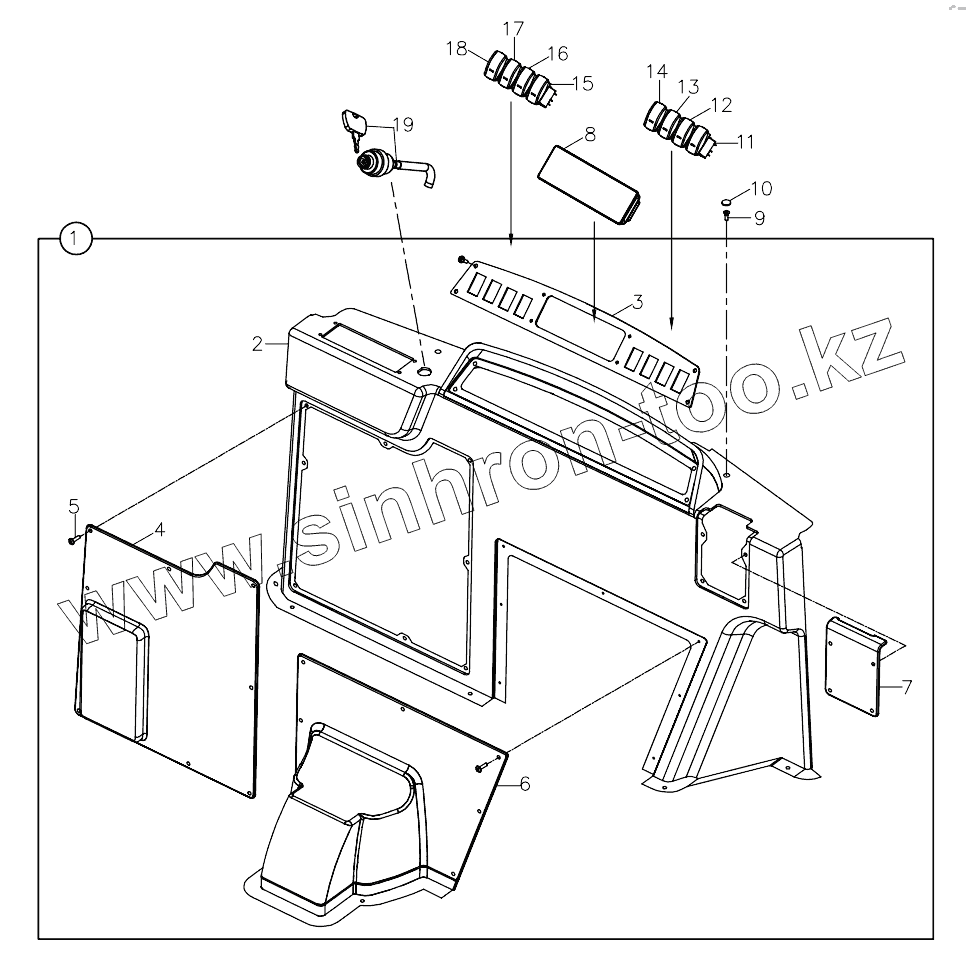

Каталог запасных частей к технике: Hidromek HMK 62SS. RIGHT INSTRUMENT PANEL
1
2
3
4
5
6
7
8
9
10
11A
11B
12A
12B
13A
13B
14A
14B
15A
15B
16A
16B
17A
18A
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | M116100300 | RIGHT INSTRUMENT PANEL ASSY | |
| 2 | M116101100 | RIGHT INSTRUMENT PANEL | |
| 3 | M116101500 | SWITCH MOUNTING BRACKET | |
| 4 | M116101200 | ELECTRICAL SERVICE COVER | |
| 5 | N04/9601886 | Bolt | |
| 6 | M116101300 | HYDRAULIC HOSE SERVICE COVER | |
| 7 | M116101400 | HAND THROTTLE COVER | |
| 8 | M117402100 | DASHBOARD, LCD | |
| 9 | N04/9602042 | Bolt | |
| 10 | F99/15090 | Cover | |
| 11A | 520/20000 | Switch, Beacon | |
| 11B | 520/31000 | Button, beacon | |
| 12A | 520/20600 | SWITCH | |
| 12B | 520/31015 | BUTTON, REAR WORKING LIGHTS | |
| 13A | 520/20600 | SWITCH | |
| 13B | 520/31070 | Button, headlight and tail light | |
| 14A | 520/06500 | Switch, screen washer | |
| 14B | 520/31050 | Button, drive | |
| 15A | 520/06500 | Switch, screen washer | |
| 15B | 520/31042 | BUTTON, WIPER, FRONT | |
| 16A | 520/20000 | Switch, Beacon | |
| 16B | 520/31085 | BUTTON, HAZARD WARNING LIGHT | |
| 17A | 520/21051 | SWITCH+BUTTON, BRAKE | |
| 18A | 520/21061 | SWITCH+BUTTON, HYD-AUX | |
| 19 | 520/08112 | STARTER SWITCH |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
