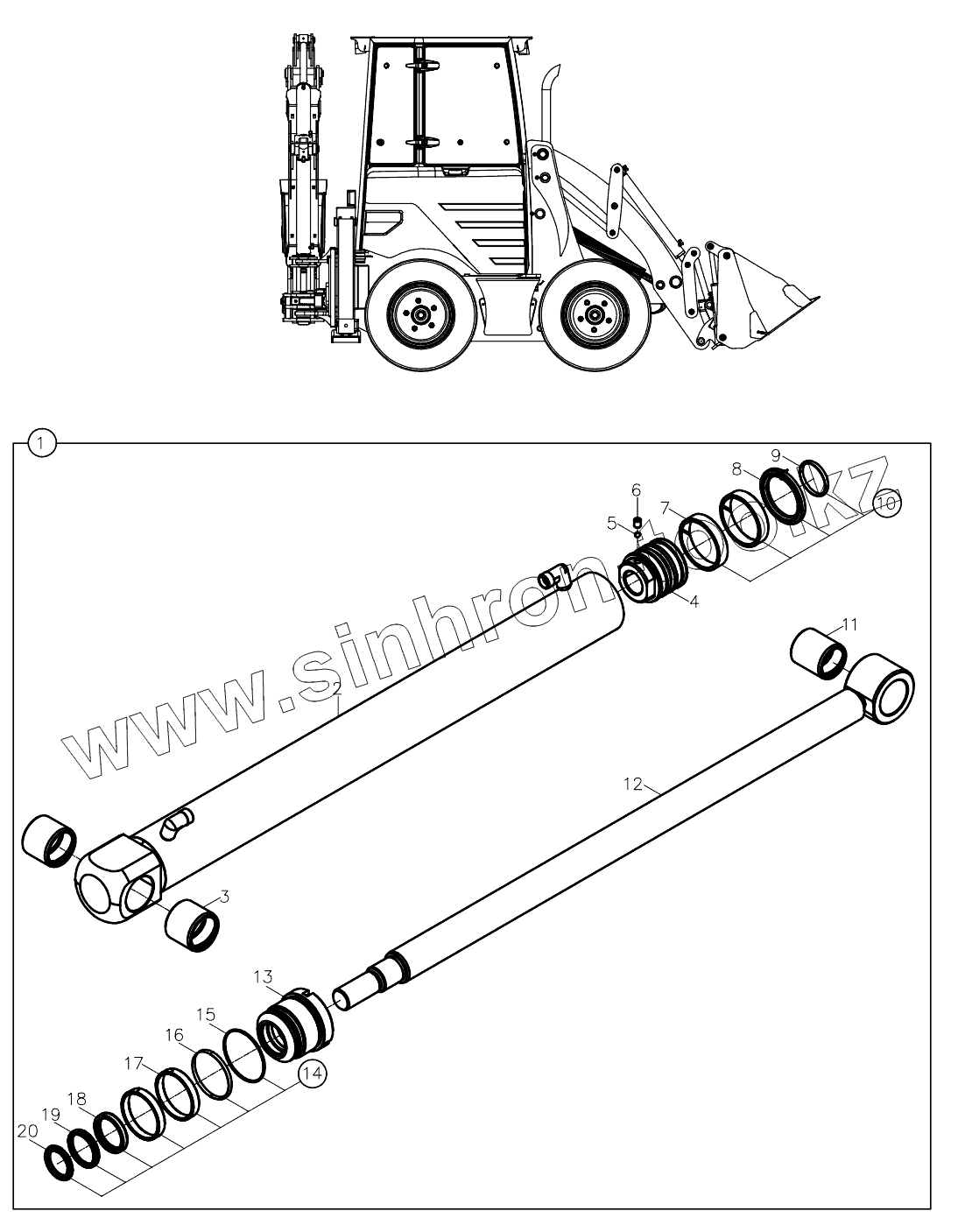

Каталог запасных частей к технике: Hidromek HMK 62SS. RAM, LIFT, RIGHT, LOADER
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
102B Maestro-ZF (2012)
102S MAESTRO (2012)
HMK 102B (2005)
HMK 102B ALPHA (2017)
HMK 102S (2005)
HMK 102S ALPHA (2017)
HMK 200W (2005)
HMK 220LC-2 (2006)
HMK 230LC3 (2019)
HMK 300LC (2019)
HMK 62SS
Схема
>
Не выбрано
SHOVEL, CLAM (C00001 - C00019)
SHOVEL, CLAM (C00020 -)
QUICK COUPLER
QUICK COUPLER
BUCKET, BACKHOE
CHASSIS
BONNET- ENGINE PANEL- NOSE GUARD- BUMPER- FRONT GRILLE CHASSIS MOUN. (C00001 - C00024)
BONNET- ENGINE PANEL- NOSE GUARD- BUMPER- FRONT GRILLE CHASSIS MOUN. (C00025 -)
PANEL, ENGINE, RIGHT SIDE (C00001 - C00024)
PANEL, ENGINE, RIGHT SIDE (C00025 -)
PANEL, ENGINE, LEFT SIDE (C00001 - C00024)
PANEL, ENGINE, LEFT SIDE (C00025 -)
BONNET (C00001 - C00024)
BONNET (C00025 -)
FENDER, LEFT
FENDER, RIGHT
TANK, HYDRAULIC
TANK, FUEL
OPERATOR CAB, LEVERS MECHANISM
DOOR AND WINDOW SIDE, RIGHT
DOOR AND WINDOW SIDE, LEFT
WINDOWS, FRONT - REAR (C00001 - C00024)
WINDOWS, FRONT - REAR (C00025 -)
WIPER SYSTEM
CAB INTERIOR TRIMMING AND ROOF
FRONT TRIM
RIGHT INSTRUMENT PANEL
INSIDE PLATED, LEFT (C00001 - C00024)
INSIDE PLATED, LEFT (C00025 -)
SEAT
LIGHTS AND ACCESORIES
LOADER ATTACHMENT MOUNTING
LOADER MOUNTING
SHOVEL LEVELLING MECHANISM
STABILISER, SIDESHIFT (C00001 - C00001)
STABILISER, SIDESHIFT (C00002 -)
KINGPOST CARRIAGE
SWING CARRIAGE
MAIN BOOM
DIPPER-TIPPING LINK/LEVER-RAM MOUNTING
HAND THROTTLE AND ACCELERATOR PEDAL
HAND THROTTLE AND ACCELERATOR PEDAL
BACKHOE CONTROL, DIRECTIONAL VALVE ELEMENTS
RAM, LIFT, RIGHT, LOADER
RAM, LIFT, LEFT, LOADER
RAM, SHOVEL, RIGHT, LOADER
RAM, SHOVEL, LEFT, LOADER
RAM, CLAMSHOVEL, RIGHT- LEFT, LOADER
RAM, STABILISER (RIGHT)
RAM, STABILISER (LEFT)
RAM, SLEW SWING (RIGHT- LEFT)
RAM, MAIN BOOM, BACKHOE
RAM, DIPPER, BACKHOE
RAM, BUCKET, BACKHOE
FRONT AXLE
REAR AXLE
WHEEL & TYRE ASSEMBLY, FRONT, REAR
WHEEL DRIVES
ENGINE, V2403-M-T-E3B-EU(TIER4)
CRANKCASE
OIL PAN
CYLINDER HEAD
GEAR CASE
HEAD COVER
OIL FILTER
DIPSTICK AND GUIDE
OIL PUMP
OIL FILLER FLANGE
MAIN BEARING CASE
CAMSHAFT AND IDLE GEAR SHAFT
PISTON AND CRANKSHAFT
FLYWHEEL
FUEL CAMSHAFT AND GOVERNOR SHAFT
IDLE APPARATUS
ENGINE STOP LEVER
STOP SOLENOID
INJECTION PUMP
GOVERNOR
GOVERNOR
NOZZLE HOLDER AND GLOW PLUG
FUEL FILTER
FUEL PUMP (MECHANICAL)
ALTERNATOR AND PULLEY
ALTERNATOR (COMPONENT PARTS)
STARTER
STARTER (COMPONET PARTS)
OIL SWITCH AND THERMOMETER
WATER FLANGE AND THERMOSTAT
WATER PUMP
RADIATOR
FAN
RESERVE TANK
VALVE AND ROCKER ARM
INLET MANIFOLD
EXHAUST MANIFOLD
TURBO- CHARGER
OIL PIPE (TURBO CHARGER)
OIL COOLER
GLOW LAMP AND TIMER
ACCESSORIES AND SERVICE PARTS
ENGINE ASSEMBLY
ENGINE PUMP ASSEMBLY
AIR FILTER AND MOUNTINGS
DRIVE MOTORS
DRIVE MOTORS CASE
EXHAUST ASSEMBLY (C00001 - C00051)
EXHAUST ASSEMBLY (C00052 -)
RADIATOR - OIL COOLER AND FITTINGS (C00001 - C00001)
RADIATOR - OIL COOLER AND FITTINGS (C00002 -)
AIR CONDITIONER, COOLING SYSTEM (C00001 -)
DECAL AND PLATES, OPERATING & MAINTENANCE
DECALS, WARNING
DECAL AND PLATES, MACHINE MODEL & INFORMATION
TOOL KIT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Позиция на иллюстрации
Заводской номер детали
Название детали
1
152/21301
RAM, LIFT
2
209/22140
CYLINDER
3
802/01032
BUSHING
4
201/21060
PISTON
5
N09/9001060
Ball
6
N04/3120686
Pin
7
N10/0586397
GUIDE RING, PISTON
8
N10/3476306
SEAL, PISTON
9
N10/2003935
O-ring, piston
10
S48/80728
SEAL KIT, PISTON
11
802/01034
BUSHING
12
208/45140
ROD
13
202/22065
CAP, END
14
S48/90935
SEAL, KIT, END CAP
15
N10/2006426
O-RING
16
N10/2005835
O-ring, end cap
17
N10/0404597
Ring, We
18
N10/5404805
Scraper
19
N10/7405506
U-cap
20
N10/4405007
U- CAP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
