M111304401
M111304501
M111304601
M111305701
M111304901
1
2
3
4
5
6
7
8
9
10
11
12
13
14

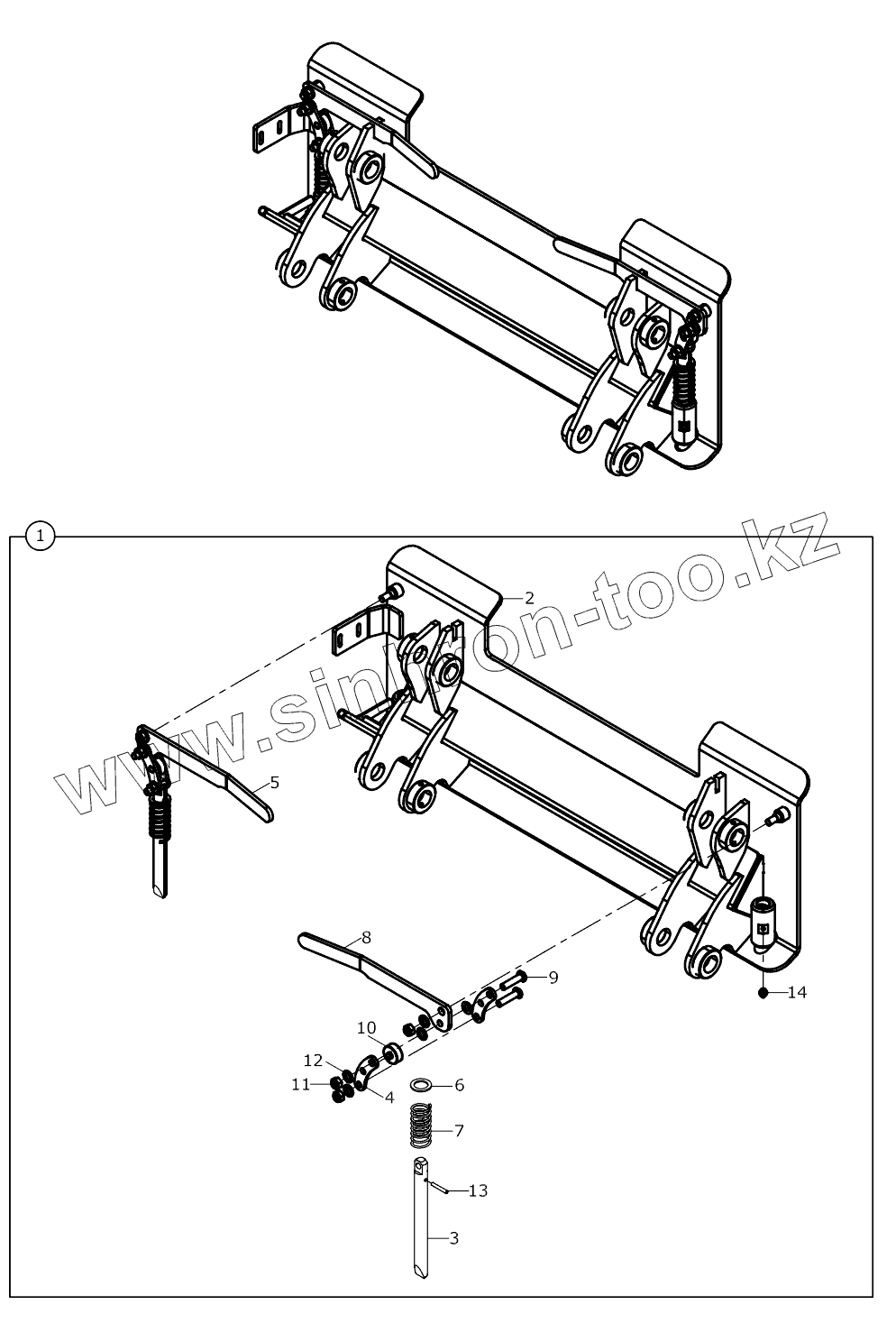

Позиция на иллюстрации
Заводской номер детали
Название детали
M111304401
M111304401
PIN, LOCKING
M111304501
M111304501
LOCKING, HANDLE
M111304601
M111304601
ARM, LOCKING, LEFT
M111305701
M111305701
PIN
M111304901
M111304901
ARM, LOCKING, RIGHT
1
M111302700
QUICK COUPLER ASSEMB.
2
M111302800
QUICK COUPLER
3
M111304400
PIN, LOCKING
4
M111304500
LOCKING, HANDLE
5
M111304600
ARM, LOCKING, LEFT
6
M111304700
WASHER
7
M111304800
SPRING
8
M111304900
ARM, LOCKING, RIGHT
9
M111305600
PIN
10
M111305700
PIN
11
N02//5900122
NUT
12
N03/0810001
Washer
13
N15/6451628
PIN EXPANSION
14
N08/1210020
Lubricants
