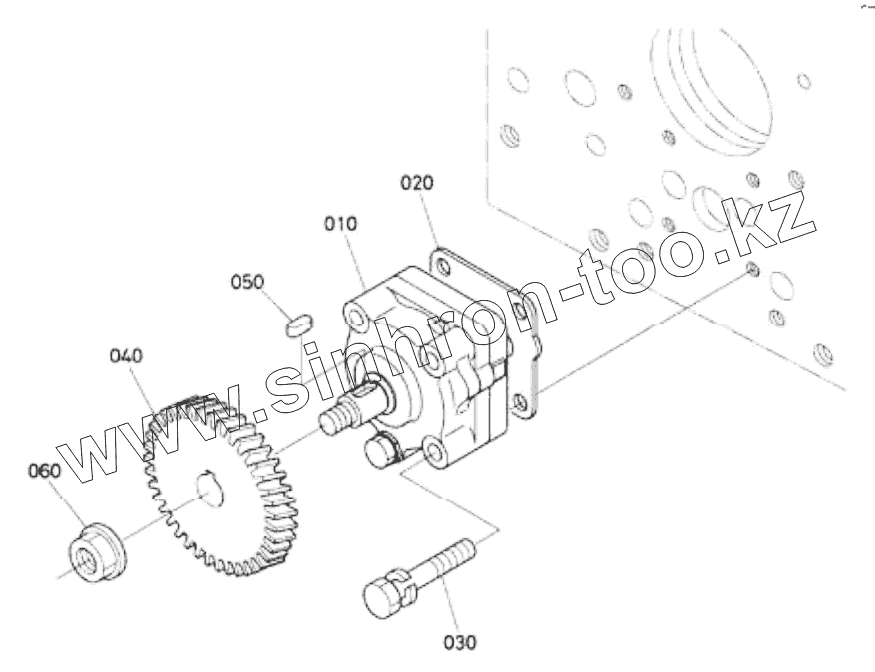

Каталог запасных частей к технике: Hidromek HMK 62SS. OIL PUMP

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано SHOVEL, CLAM (C00001 - C00019) SHOVEL, CLAM (C00020 -) QUICK COUPLER QUICK COUPLER BUCKET, BACKHOE CHASSIS BONNET- ENGINE PANEL- NOSE GUARD- BUMPER- FRONT GRILLE CHASSIS MOUN. (C00001 - C00024) BONNET- ENGINE PANEL- NOSE GUARD- BUMPER- FRONT GRILLE CHASSIS MOUN. (C00025 -) PANEL, ENGINE, RIGHT SIDE (C00001 - C00024) PANEL, ENGINE, RIGHT SIDE (C00025 -) PANEL, ENGINE, LEFT SIDE (C00001 - C00024) PANEL, ENGINE, LEFT SIDE (C00025 -) BONNET (C00001 - C00024) BONNET (C00025 -) FENDER, LEFT FENDER, RIGHT TANK, HYDRAULIC TANK, FUEL OPERATOR CAB, LEVERS MECHANISM DOOR AND WINDOW SIDE, RIGHT DOOR AND WINDOW SIDE, LEFT WINDOWS, FRONT - REAR (C00001 - C00024) WINDOWS, FRONT - REAR (C00025 -) WIPER SYSTEM CAB INTERIOR TRIMMING AND ROOF FRONT TRIM RIGHT INSTRUMENT PANEL INSIDE PLATED, LEFT (C00001 - C00024) INSIDE PLATED, LEFT (C00025 -) SEAT LIGHTS AND ACCESORIES LOADER ATTACHMENT MOUNTING LOADER MOUNTING SHOVEL LEVELLING MECHANISM STABILISER, SIDESHIFT (C00001 - C00001) STABILISER, SIDESHIFT (C00002 -) KINGPOST CARRIAGE SWING CARRIAGE MAIN BOOM DIPPER-TIPPING LINK/LEVER-RAM MOUNTING HAND THROTTLE AND ACCELERATOR PEDAL HAND THROTTLE AND ACCELERATOR PEDAL BACKHOE CONTROL, DIRECTIONAL VALVE ELEMENTS RAM, LIFT, RIGHT, LOADER RAM, LIFT, LEFT, LOADER RAM, SHOVEL, RIGHT, LOADER RAM, SHOVEL, LEFT, LOADER RAM, CLAMSHOVEL, RIGHT- LEFT, LOADER RAM, STABILISER (RIGHT) RAM, STABILISER (LEFT) RAM, SLEW SWING (RIGHT- LEFT) RAM, MAIN BOOM, BACKHOE RAM, DIPPER, BACKHOE RAM, BUCKET, BACKHOE FRONT AXLE REAR AXLE WHEEL & TYRE ASSEMBLY, FRONT, REAR WHEEL DRIVES ENGINE, V2403-M-T-E3B-EU(TIER4) CRANKCASE OIL PAN CYLINDER HEAD GEAR CASE HEAD COVER OIL FILTER DIPSTICK AND GUIDE OIL PUMP OIL FILLER FLANGE MAIN BEARING CASE CAMSHAFT AND IDLE GEAR SHAFT PISTON AND CRANKSHAFT FLYWHEEL FUEL CAMSHAFT AND GOVERNOR SHAFT IDLE APPARATUS ENGINE STOP LEVER STOP SOLENOID INJECTION PUMP GOVERNOR GOVERNOR NOZZLE HOLDER AND GLOW PLUG FUEL FILTER FUEL PUMP (MECHANICAL) ALTERNATOR AND PULLEY ALTERNATOR (COMPONENT PARTS) STARTER STARTER (COMPONET PARTS) OIL SWITCH AND THERMOMETER WATER FLANGE AND THERMOSTAT WATER PUMP RADIATOR FAN RESERVE TANK VALVE AND ROCKER ARM INLET MANIFOLD EXHAUST MANIFOLD TURBO- CHARGER OIL PIPE (TURBO CHARGER) OIL COOLER GLOW LAMP AND TIMER ACCESSORIES AND SERVICE PARTS ENGINE ASSEMBLY ENGINE PUMP ASSEMBLY AIR FILTER AND MOUNTINGS DRIVE MOTORS DRIVE MOTORS CASE EXHAUST ASSEMBLY (C00001 - C00051) EXHAUST ASSEMBLY (C00052 -) RADIATOR - OIL COOLER AND FITTINGS (C00001 - C00001) RADIATOR - OIL COOLER AND FITTINGS (C00002 -) AIR CONDITIONER, COOLING SYSTEM (C00001 -) DECAL AND PLATES, OPERATING & MAINTENANCE DECALS, WARNING DECAL AND PLATES, MACHINE MODEL & INFORMATION TOOL KIT

10

20

30

40

50

60

Позиция на иллюстрации	Заводской номер детали		Название детали
10	M118001880		ASSY PUMP, OIL
20	M118001890		GASKET, OIL PUMP
30	M118001900		BOLT
40	M118001910		GEAR, OIL PUMP DRIVE
50	M118001920		KEY, FEATHER
60	M118001930		NUT, FLANGE

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
