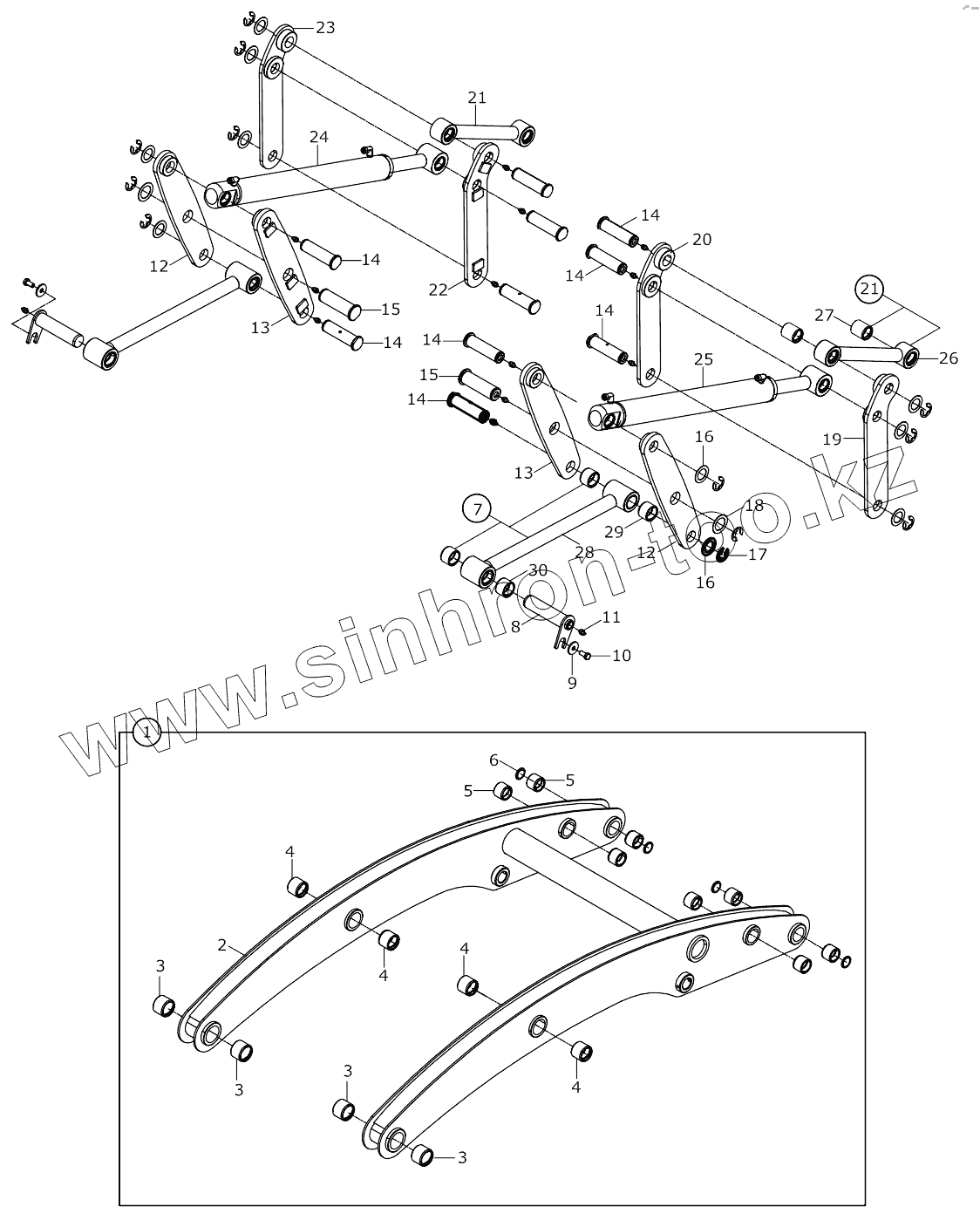

Каталог запасных частей к технике: Hidromek HMK 62SS. LOADER MOUNTING
1
2
3
3
3
3
4
4
4
4
5
5
6
7
8
9
10
11
12
12
13
13
14
14
14
14
14
14
14
15
15
16
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | M111301100 | LOADER ARM ASSY | |
| 2 | M111300200 | ARM, LOADER | |
| 3 | 802/01120 | PIN | |
| 4 | 802/01150 | PIN | |
| 5 | 802/01032 | BUSHING | |
| 6 | N10/5354540 | SEAL | |
| 7 | M111301600 | MECHANISM, ARM, LOADER ASSEMBLY | |
| 8 | 811/03055 | PIN | |
| 9 | 805/00460 | WASHER | |
| 10 | N01/0232822 | Bolt, Hex. | |
| 11 | N08/1210020 | Lubricants | |
| 12 | M111301200 | MECHANISM, ARM, LOADER, REAR EXTERNAL | |
| 13 | M111301400 | MECHANISM, ARM, LOADER, REAR INTERNAL | |
| 14 | 801/05018 | PIN | |
| 15 | 805/05085 | PIN | |
| 16 | M111305300 | WASHER | |
| 17 | N05/0760018 | RETAINING RING | |
| 18 | M111305000 | WASHER | |
| 19 | M111302200 | MECHANISM, ARM, LOADER FRONT RIGHT EXTERNAL | |
| 20 | M111302300 | MECHANISM, ARM, LOADER FRONT RIGHT INTERNAL | |
| 21 | M111302400 | LINK | |
| 22 | M111302100 | MECHANISM, ARM, LOADER FRONT LEFT INTERNAL | |
| 23 | M111301900 | MECHANISM, ARM, LOADER FRONT LEFT EXTERNAL | |
| 24 | RAM | RAM | |
| 25 | RAM | RAM | |
| 26 | M111302500 | LINK | |
| 27 | 802/01034 | BUSHING | |
| 28 | M111301700 | MECHANISM, ARM, LOADER | |
| 29 | 802/01032 | BUSHING | |
| 30 | 802/01147 | BUSHING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
