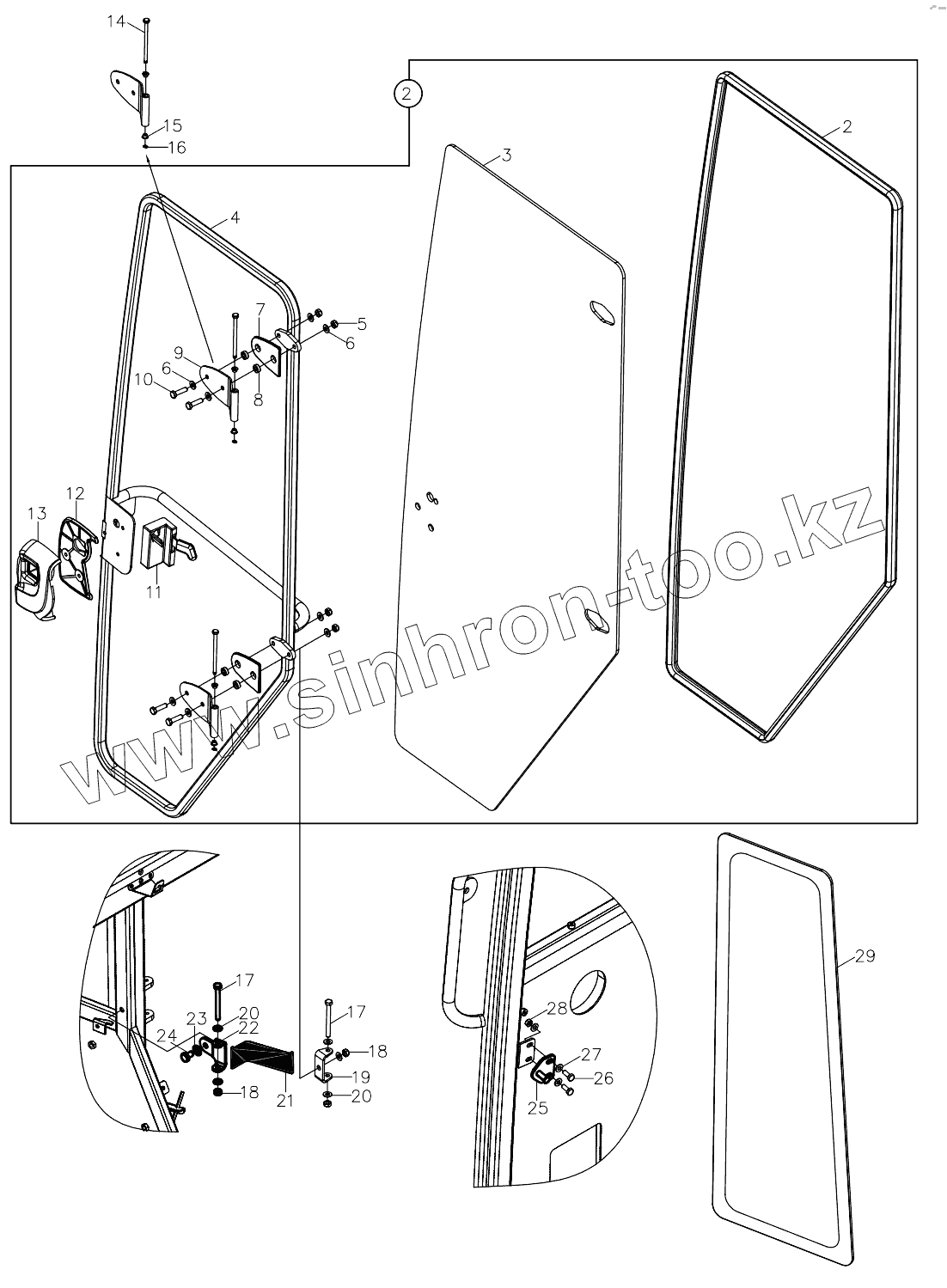

Каталог запасных частей к технике: Hidromek HMK 62SS. DOOR AND WINDOW SIDE, LEFT
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
20
21
22
23
24
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | M116000600 | DOOR, LEFT, ASSY | |
| 2 | M116002800 | STRIP, DOOR | |
| 3 | M116002600 | GLASS DOOR | |
| 4 | M116002700 | DOOR | |
| 5 | N02/5910062 | Nut | |
| 6 | N03/0140017 | Washer, Spr. | |
| 7 | M116003200 | GASKET | |
| 8 | M116003700 | BUSHING | |
| 9 | M116003300 | HINGE PLATE, SIDE WINDOW | |
| 10 | N01/0232162 | Bolt, Hex. | |
| 11 | S91/00631 | Lock, door | |
| 12 | 810/40064 | BASE, HANDLE, LEFT | |
| 13 | S91/00657 | Handle, f type, left | |
| 14 | M116001500 | PIN | |
| 15 | F99/14897 | BUSHING | |
| 16 | N05/0020007 | Retaining Ring | |
| 17 | N01/0380493 | Bolt | |
| 18 | N02/5910062 | Nut | |
| 19 | M116005500 | STAY PLATE, DOOR | |
| 20 | N03/0100017 | Washer, Pln. | |
| 21 | M116000900 | LASHING | |
| 22 | M116005600 | STAY PLATE, DOOR | |
| 23 | N03/0020018 | Washer, Pln. | |
| 24 | N01/0232402 | Bolt, Hex. | |
| 25 | M116002400 | LOCK TOWARD | |
| 26 | N01/0232114 | Bolt, Hex. | |
| 27 | N03/0140017 | Washer, Spr. | |
| 28 | N02/5910062 | Nut | |
| 29 | M116001300 | REAR GLASS, LEFT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
