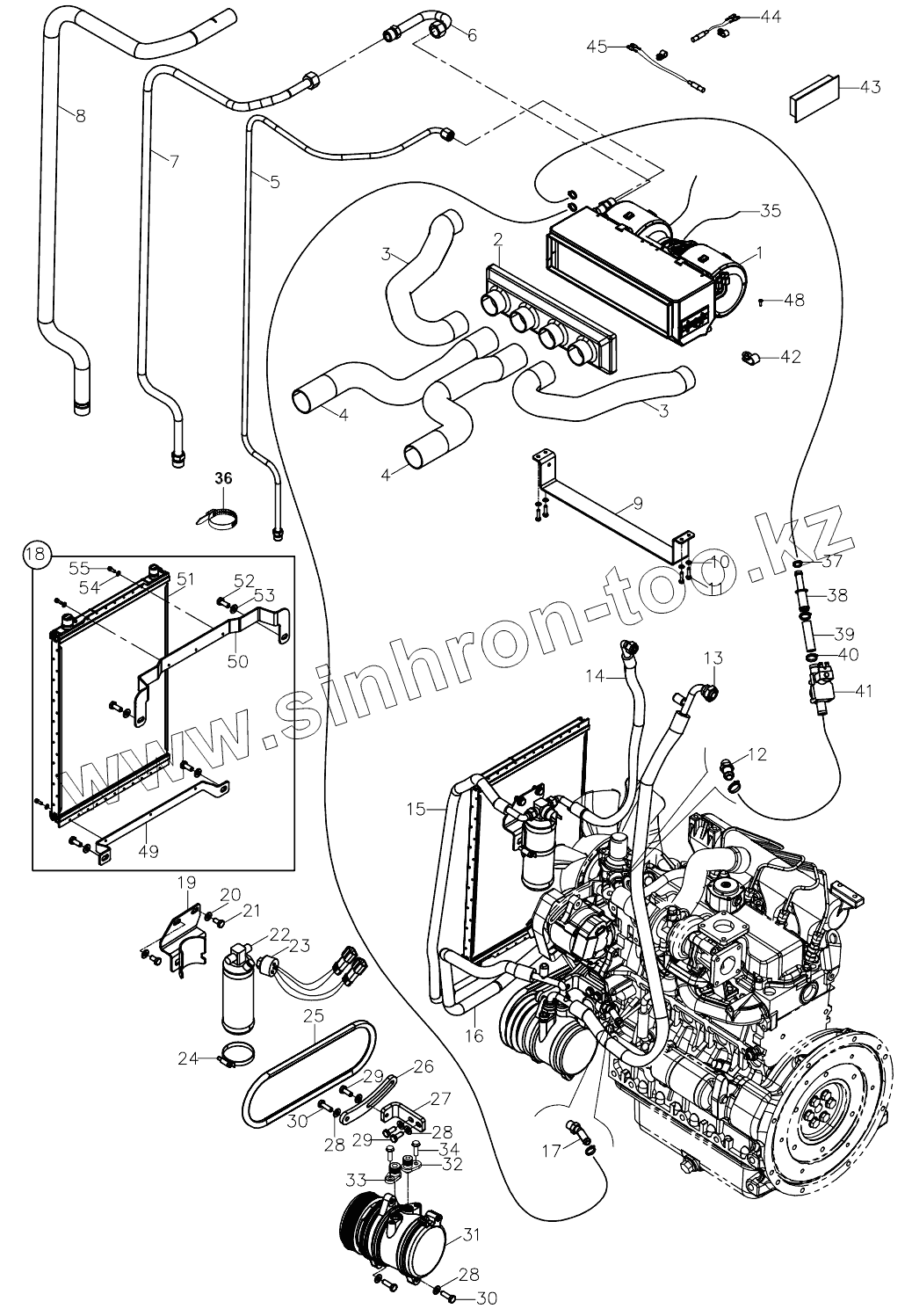

Каталог запасных частей к технике: Hidromek HMK 62SS. AIR CONDITIONER, COOLING SYSTEM (C00001 -)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
29
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
48
49
50
51
52
53
54
55
Позиция на иллюстрации Заводской номер детали Название детали
1 M112701400 EVAPARATOR
2 M112701500 COVER
3 M112701600 HOSE
4 M112701700 HOSE
5 M112702100 PIPE
6 M112702400 PIPE
7 M112702000 PIPE
8 M112702500 INSULATED HOSE
9 M116001800 BRACKET
10 N03/0100011 Washer, Pln.
11 N01/0231226 BOLT
12 M112702900 ADAPTER
13 M112704100 HOSE
14 M112704000 HOSE
15 M112703900 HOSE
16 M112703800 HOSE
17 M112703000 ADAPTER
18 M112702800 CONDENSER ASSY
19 M112700700 BRACKET
20 N03/0100017 Washer, Pln.
21 N01/0232078 Bolt
22 M112703100 Dryer
23 M112703200 SWITCH, AC
24 N07/4050070 Clamp
25 M112701100 BELT, A/C
26 M112700600 BRACKET
27 M112700500 BRACKET
28 N03/0100017 Washer, Pln.
29 N01/0232114 Bolt, Hex.
30 N01/0232138 Bolt, Hex.
31 M112700200 COMPRESSOR
32 M112700400 ADAPTER
33 M112700300 ADAPTER
34 N01/5890458 Bolt
35 799/00120 HOSE
36 510/01810 TIE, CABLE
37 N07/4016027 Clamp
38 M112704300 ADAPTER
39 H06/7030102 HOSE
40 N07/4012020 CLAMP
41 M112704200 TAP, HEATER
42 N07/7002426 Hose holder
43 M112701800 CONTROL PANEL
44 M112703600 SENSOR, SHORT
45 M112703500 SENSOR, LONG
46 H06/7030102 HOSE
47 H06/7030102 HOSE
48 N04/1150349 Bolt
49 M112702600 BRACKET, UPPER
50 M112702701 BRACKET, BOTTOM
51 M112701200 CONDENSER
52 N01/0232114 Bolt, Hex.
53 N03/0100017 Washer, Pln.
54 N03/0020001 Washer
55 N01/5870050 Bolt, Cylinder Head
