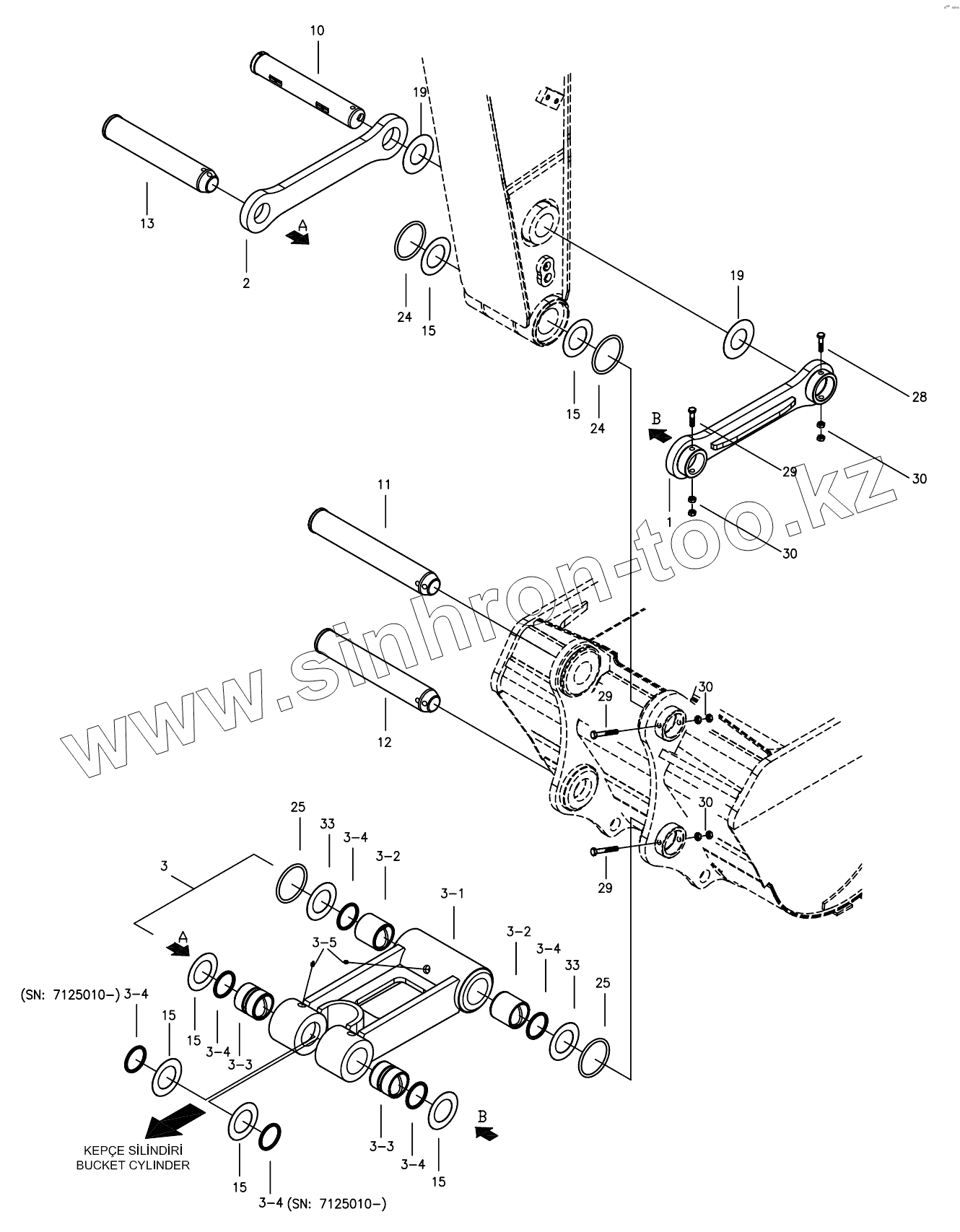

Каталог запасных частей к технике: Hidromek HMK 300LC. WORKING ATTACHMENT CONTROL
1
2
3
3
3_1
3_1
3_1
3_2
3_2
3_3
3_3
3_3
3_3
3_3
3_3
3_4
3_4
3_4
3_4
3_4
3_4
3_4
3_4
3_4
3_4
3_4
3_4
3_5
10
11
12
13
15
15
15
15
15
15
19
19
24
24
25
25
28
29
29
29
30
30
30
30
33
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H255400100 | Yoke W.A., L/H | |
| 2 | H255400200 | Yoke W.A., R/H | |
| 3 | H255400400 | Link Ass'y | |
| 3 | H255400401 | Link Ass'y | |
| 3_1 | H255400500 | Link W.A. | |
| 3_1 | H255400501 | Link W.A. | |
| 3_1 | H255400502 | Link W.A. | |
| 3_2 | H255401100 | Bushing | |
| 3_3 | H255401200 | Bushing | |
| 3_3 | H255401201 | Bushing | |
| 3_4 | N10/5901056 | Seal Dust | |
| 3_4 | N10/5901056 | Seal Dust | |
| 3_5 | N08/1110000 | Grease, Nipple | |
| 10 | H345303301 | Pin | |
| 11 | H255001400 | Pin | |
| 12 | H255001500 | Pin | |
| 13 | H255001600 | Pin | |
| 15 | H255002100 | Shim | |
| 19 | H255002500 | Shim | |
| 24 | H255303400 | O-Ring | |
| 25 | H345303400 | O-Ring | |
| 28 | N01/0381418 | Bolt, Hex. | |
| 29 | N01/0381430 | Bolt, Hex. | |
| 30 | N02/3570314 | Nut, Hex. | |
| 33 | H255002800 | Shim |
