Каталог запасных частей к технике: Hidromek HMK 300LC. WATER PIPE AND THERMOSTAT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано BREAKER PIPING MOUNTING (1) (OP) BREAKER PIPING MOUNTING (2) (OP) BREAKER PIPING MOUNTING (2) (OP) BREAKER MOUNTING (OP) QUICK COUPLING ASSEMBLY (OP) QUICK COUPLING MOUNTING (OP) QUICK COUPLING CYLINDER (OP) DOUBLE ACTING PIPING (1) (OP) DOUBLE ACTING PIPING MOUNTING (2) (OP) DOUBLE ACTING VALVE (OP) BOOM SAFETY LOCK SYSTEM (OP) ARM SAFETY LOCK SYSTEM (OP) OVERLOAD WARNING SYSTEM (OP) RIPPER (OP) BEACON MOUNTING (OP) REAR WORK LAMP MOUNTING (OP) FRONT WORK LAMP MOUNTING (OP) WINDOW GUARD (OP) IMMOBILIZER (OP) COWLING MOUNTING (1) COWLING MOUNTING (2) COWLING MOUNTING (3) COWLING MOUNTING (4) COWLING MOUNTING (5) COWLING MOUNTING (6) UPPER FRAME MOUNTING BATTERY BOX MOUNTING ANTI-SLIP WALKWAY ENGINE MOUNTING SHORT ENGINE ASSEMBLY SERVICE CYLINDER HEAD ASSEMBLY SERVICE CYLINDER BLOCK ASSEMBLY LINER AND PISTON KIT SERVICE CRANKSHAFT ASSEMBLY ENGINE OVERHAUL GASKET KIT ROCKER COVER AND BREATHER CYLINDER HEAD CYLINDER BLOCK OIL PAN - FILLER - GAUGE FLYWHEEL AND HOUSING PISTON - CONNROD - CRANKSHAFT CAMSHAFT - VALVE TIMING GEAR ATTACHING PARTS OIL PUMP AND STRAINER OIL FILTER OIL COOLER OIL LINE FUEL LINE AND WATER SEPARATOR FUEL FД°LTER AND HOSE FUEL INJECTION PUMP GENERAL INJECTION PUMP GOVERNOR (1/2) GOVERNOR (2/2) AUTOMATIC TIMER FUEL FEED PUMP INJECTION PUMP COUPLING INJECTION PIPE AND NOZZLE FUEL RETURN HOSE WATER PUMP AND FAN MOUNTING WATER PIPE AND THERMOSTAT INLET MANIFOLD EXHAUST MANIFOLD TURBOCHARGER STARTER ALTERNATOR AND REGULATOR PLATE AND LABEL CHASSIS HARNESS EQUIPMENT COUPLING ASSEMBLY AIR INTAKE MOUNTING EXHAUST MOUNTING COOLING SYSTEM RADIATOR FUEL TANK MOUNTING AND FUEL LINE FUEL TANK MOUNTING AND FUEL LINE ENGINE CONTROL MOUNTING AIRCONDITION MOUNTING AIRCONDITION MOUNTING HEATER MOUNTING AIRCONDITION UNIT MAIN PIPING MOUNTING (1/3) MAIN PIPING MOUNTING (2/3) MAIN PIPING MOUNTING (3/3) MAIN CONTROL VALVE (1) MAIN CONTROL VALVE (2) MAIN CONTROL VALVE (3) MAIN CONTROL VALVE (4) MAIN CONTROL VALVE (5) MAIN CONTROL VALVE (6) MAIN CONTROL VALVE (7) MAIN CONTROL VALVE (8) HYDRAULIC PUMP GEAR PUMP PROPORTIONAL REDUCING VALVE PUMP REGULATOR REDUCTION GEAR - SWING UNIT SWING MOTOR - SWING UNIT LOWER PIPING MOUNTING REDUCTION GEAR - TRAVEL UNIT MOTOR ASSEMBLY - TRAVEL UNIT TURNING JOINT PILOT PIPING MOUNTING 1 (1/2) PILOT PIPING MOUNTING 1 (2/2) PILOT PIPING MOUNTING 2 (1/2) PILOT PIPING MOUNTING 2 (1/2) PILOT PIPING MOUNTING 2 (2/2) PILOT PIPING MOUNTING 2 (2/2) PILOT PIPING MOUNTING 3 REMOTE CONTROL VALVE (R/L) REMOTE CONTROL VALVE (R/L) PEDAL 3-SOLENOID PRIORITY VALVE 3-SOLENOID VALVE ATTACHMENT PIPING BOOM CYLINDER (R/L) BUCKET CYLINDER ARM CYLINDER HYDRAULIC TANK MOUNTING UPPER DRAIN AND RETURN PIPING MOUNTING UPPER DRAIN AND RETURN PIPING MOUNTING LOWER FRAME MOUNTING UPPER ROLLER LOWER ROLLER IDLER ASSEMBLY ADJUSTER ASSEMBLY TRACK CHAIN ASSEMBLY BOOM MOUNTING ARM MOUNTING GENERAL PURPOSE BUCKET WORKING ATTACHMENT CONTROL LUBRICATION PIPING MOUNTING LUBRICATION PIPING MOUNTING CAB MOUNTING CAB (1) CAB (1) CAB (2) CAB (3) CONSOLE BOX (R/H) CONSOLE BOX (L/H) CAB INTERIROR MOUNTING (1) CAB INTERIROR MOUNTING (1) CAB INTERIOR MOUNTING (2) CAB INTERIOR MOUNTING (2) OPERATOR SEAT ELECTRIC (1) ELECTRIC (1) ELECTRIC (2) ELECTRIC (3) MAIN HARNESS ENGINE HARNESS CAB MAIN HARNESS CAB MAIN HARNESS

10100A

10106

10110

10115

10122

10176

10177B

10177E

10177F

10801

10898B

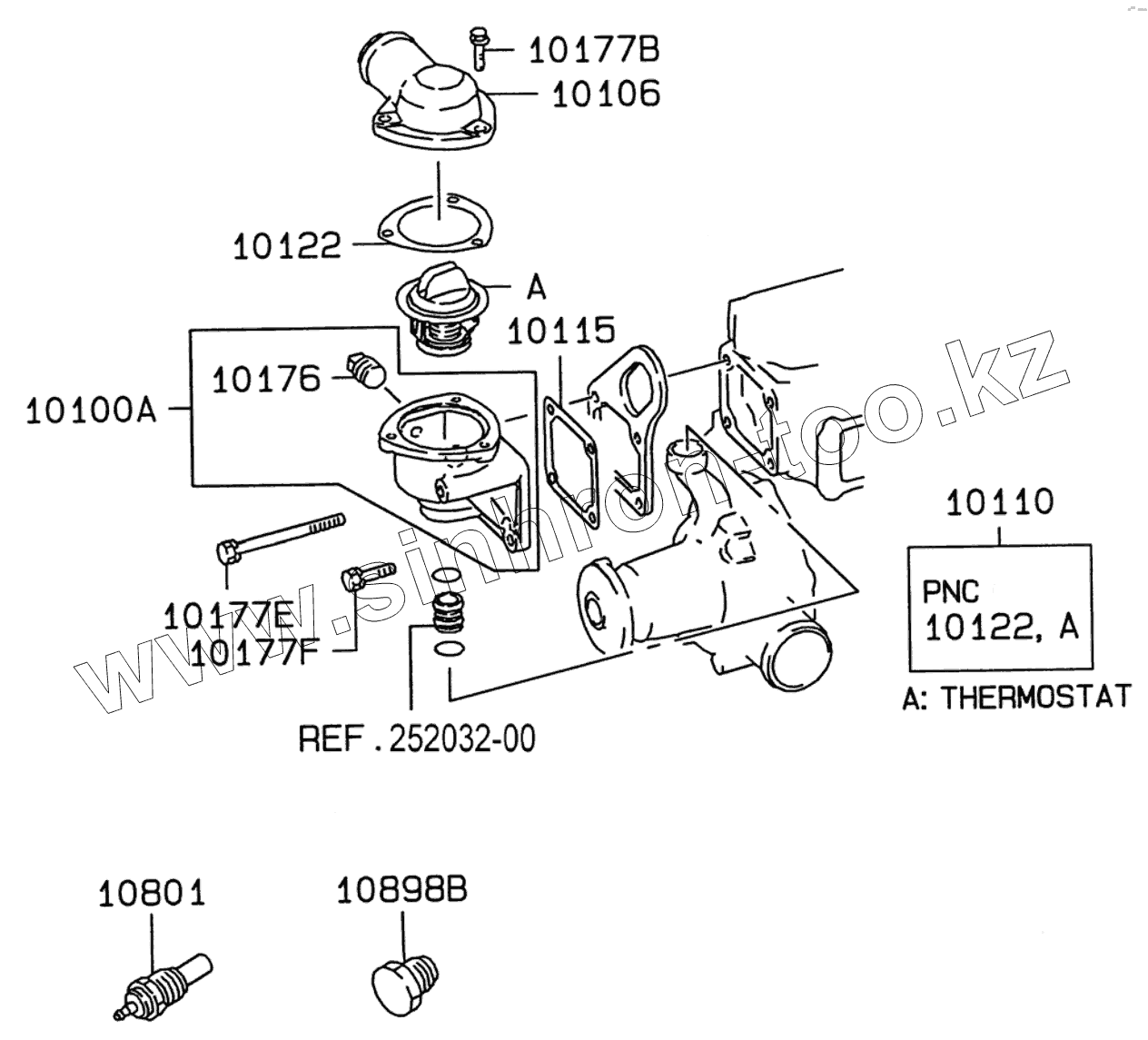

Позиция на иллюстрации	Заводской номер детали		Название детали
10100A	H259001446		Case Ass'y, Therm.
10106	H259001447		Cover, Thermostat
10110	H259001448		Thermostat KIT
10115	H259001170		Gasket, Engine Hanger
10122	H259001450		Gasket, Thr. Cover
10176	H259001451		Plug, Thermostat
10177B	H349003219		Bolt, Oil Cooler
10177E	H259001452		Bolt, Thermostat
10177F	H259001453		Bolt, Thermostat
10801	H259001454		Gauge Unit, Water Temperature
10898B	H349003638		Plug, Gauge

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
