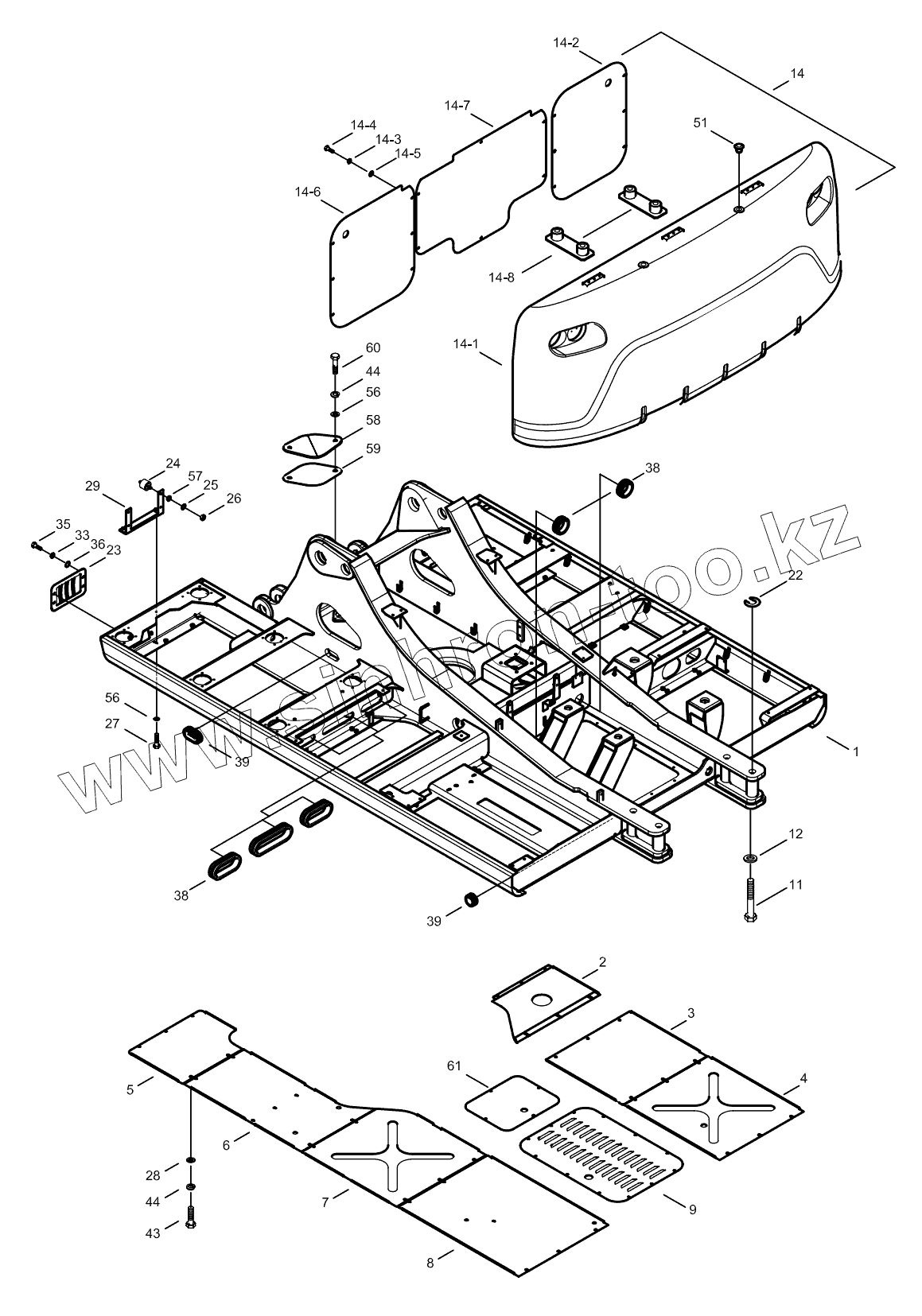

Каталог запасных частей к технике: Hidromek HMK 300LC. UPPER FRAME MOUNTING
1
1
2
2
3
3
4
5
5
6
6
7
7
8
8
9
11
11
12
12
14
14_1
14_1
14_1
14_2
14_3
14_4
14_5
14_6
14_7
14_7
14_8
22
22
23
24
25
26
27
28
29
33
35
36
38
38
39
39
43
44
44
51
56
56
57
58
59
60
61
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H251000100 | Upper Frame WA | |
| 1 | H251000102 | Upper Frame WA | |
| 2 | H251200200 | Cover, Fuel Tank | |
| 2 | H251200201 | Cover, Fuel Tank | |
| 3 | H251200300 | Cover, Hyd. Tank | |
| 3 | H251200301 | Cover, Hyd. Tank | |
| 4 | H251200401 | Cover, Pump | |
| 5 | H251200500 | Cover, Cab, FR | |
| 5 | H251200501 | Cover, Cab, FR | |
| 6 | H251200600 | Cover, Cab, Middle | |
| 6 | H251200601 | Cover, Cab, Middle | |
| 7 | H251200700 | Cover, Cab, RR | |
| 7 | H251200701 | Cover, Cab, RR | |
| 8 | H251200800 | Cover, Air Cln. | |
| 8 | H251200801 | Cover, Air Cln. | |
| 9 | H251200902 | Cover, Engine | |
| 11 | H251201200 | Bolt, Counter W. | |
| 11 | H251201201 | Bolt, Counter W. | |
| 12 | H251201300 | Washer, Pln. | |
| 12 | H251201301 | Washer, Pln. | |
| 14 | H251208400 | Counter Weight Ass'y | |
| 14_1 | H251201500 | Conter Weight WA | |
| 14_1 | H251208500 | Conter Weight WA | |
| 14_1 | H251208501 | Conter Weight WA | |
| 14_2 | H251210800 | Cover, Right | |
| 14_3 | N03/1310010 | Washer, Spr. | |
| 14_4 | N01/0222114 | Bolt, Hex. | |
| 14_5 | N03/0100016 | Washer, Pln. | |
| 14_6 | H251210900 | Cover, Left | |
| 14_7 | H251211001 | Cover, Middle | |
| 14_7 | H251211002 | Cover, Middle | |
| 14_8 | H251205500 | Bracket, Wght Mount. | |
| 22 | H251205300 | Shim | |
| 22 | H251205301 | Shim | |
| 23 | H341201400 | Cover, Lamp | |
| 24 | H341212900 | Rubber, Lamp | |
| 25 | N03/0100013 | Washer, Pln. | |
| 26 | N02/3570158 | Nut, Hex. | |
| 27 | N01/0232462 | Bolt, Hex. | |
| 28 | N03/0020121 | Washer, Pln. | |
| 29 | H341213000 | Plate, Lamp | |
| 33 | N03/1310010 | Washer, Spr. | |
| 35 | N01/0222114 | Bolt, Hex. | |
| 36 | N03/0100016 | Washer, Pln. | |
| 38 | 98Y040120 | Gromet | |
| 39 | 98Y040150 | Gromet | |
| 43 | N01/0232486 | Bolt, Hex. | |
| 44 | N03/1310011 | Washer, Spr. | |
| 51 | H251210100 | Plug | |
| 56 | N03/0100021 | Washer, Pln. | |
| 57 | N03/1310008 | Washer, Spr. | |
| 58 | H341201500 | Cover | |
| 59 | H341201600 | Gasket | |
| 60 | N01/0232438 | Bolt, Hex. | |
| 61 | H341230400 | Cover, Bottom, M.C.V. | |
| 61 | H251211300 | Cover, MCV |
