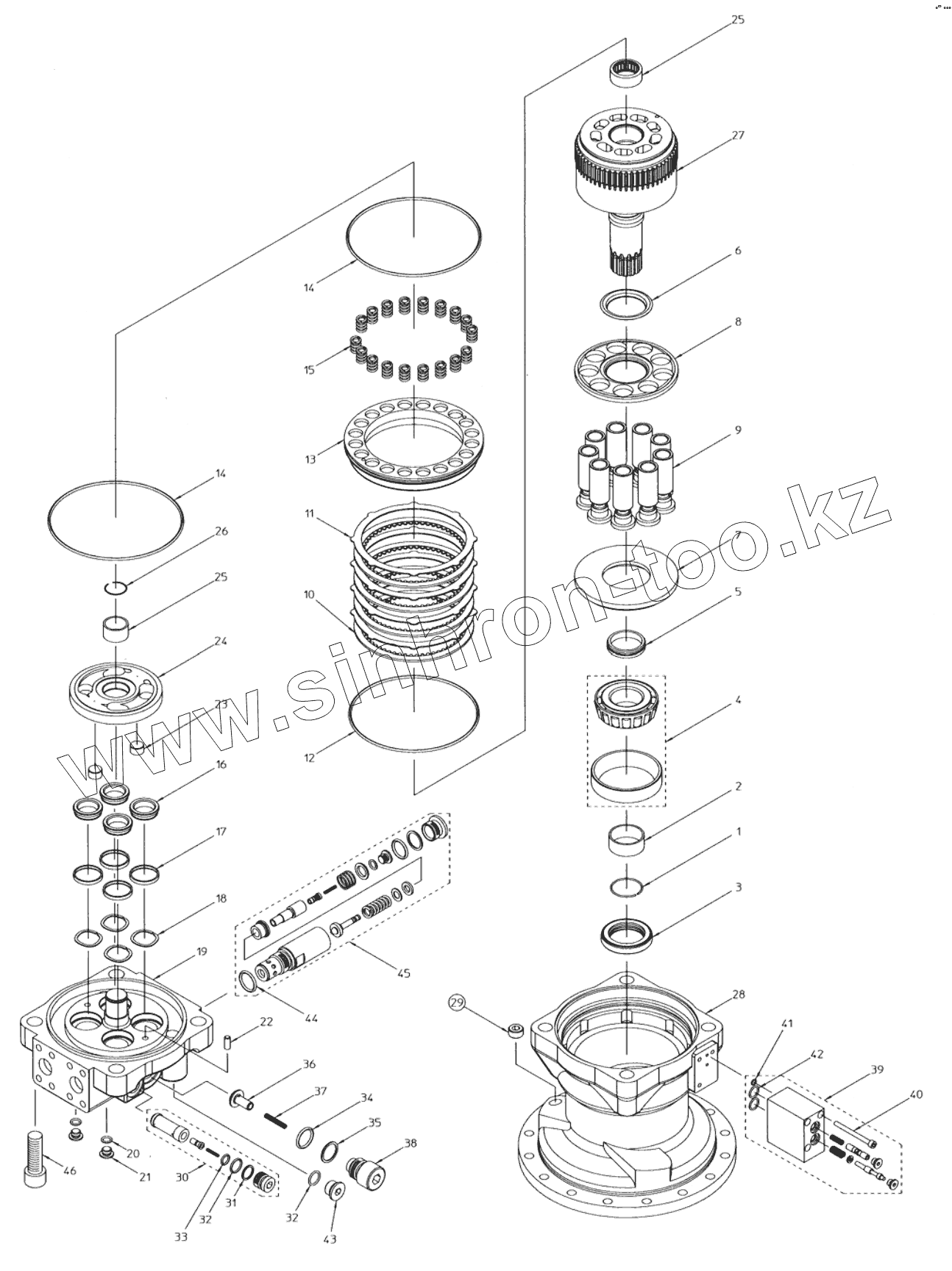

Каталог запасных частей к технике: Hidromek HMK 300LC. SWING MOTOR - SWING UNIT

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
H253002001
H259020023
H253002002
H253002000
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
H253002001 H253002001 Swing Motor Ass'y
H259020023 H259020023 Seal KIT
H253002002 H253002002 Swing Motor Ass'y
H253002000 H253002000 Swing Motor Ass'y
1 H259020001 Snap Ring
2 H349020001 Inner Ring
3 H349020002 Oil Seal
4 H349020003 Tapero Roller Being
5 H349020027 Coll
6 H259020002 Backing Spring
6 H259020002A Backing Spring
7 H259020003 Cam Plate
8 H259020004A Return Plate
8 H259020004 Return Plate
9 H259020005 Piston Ass'y
10 H259020006 Lining Plate
11 H259020007 Plate
12 H349020011 O-Ring
13 H259020008 Piston
14 H259020009 O-Ring
15 H349020014 Spring
16 H259020010 Bush
17 H259020011 Teflon Ring
18 H259020012 Scrowave
19 H259020013 Cover
20 H349020017 O-Ring
21 H349020018 Cap
22 H349020015 Pallel Pin
23 H349020016 Piston
24 H259020014A Balance Plate
24 H259020014 Balance Plate
25 H259020015 Needle Bearing
26 H349020024 Snap Ring
27 H259020016A Cylinder
27 H259020016 Cylinder
28 H259020017 Housing
29 H349020028 Plug
30 H349020030 Bypass Valve Ass'y
31 H349020031 Back Up Ring
32 H349020032 O-Ring
33 H349020033 O-Ring
34 H349020040 O-Ring
35 H349020045 Back Up Ring
36 H349020042 Check
37 H349020043 Spring
38 H349020044 Cap
39 H259020018 Time Delay Valve
40 H349020036 Hex. Socket Bolt
41 H349020037 O-Ring
42 H349020038 O-Ring
43 H259020019 Cap
44 H259020020 O-Ring
45 H259020021 Relief Ass'y
46 H259020022 Hexagon Socket Bolt
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
