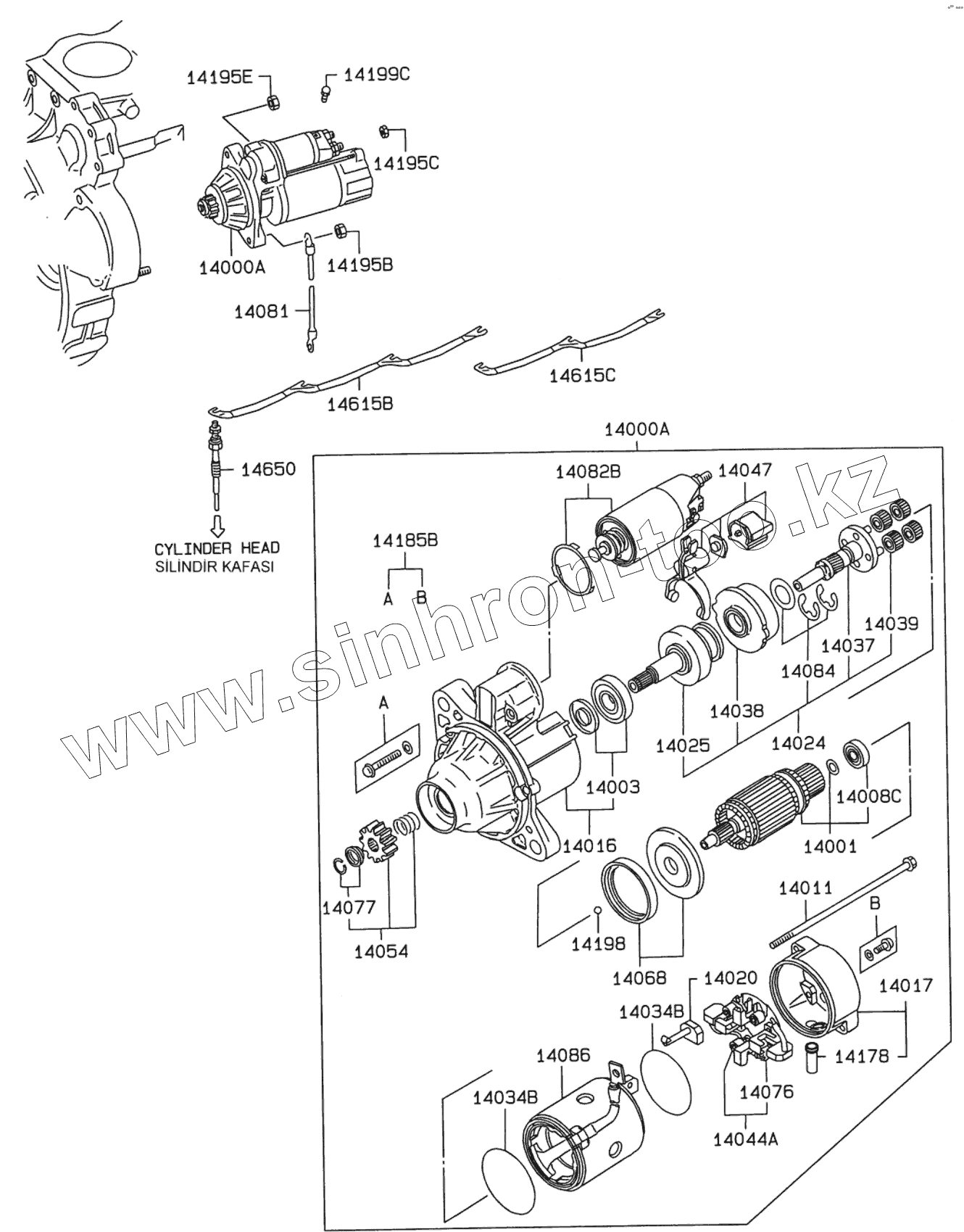

Каталог запасных частей к технике: Hidromek HMK 300LC. STARTER

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано BREAKER PIPING MOUNTING (1) (OP) BREAKER PIPING MOUNTING (2) (OP) BREAKER PIPING MOUNTING (2) (OP) BREAKER MOUNTING (OP) QUICK COUPLING ASSEMBLY (OP) QUICK COUPLING MOUNTING (OP) QUICK COUPLING CYLINDER (OP) DOUBLE ACTING PIPING (1) (OP) DOUBLE ACTING PIPING MOUNTING (2) (OP) DOUBLE ACTING VALVE (OP) BOOM SAFETY LOCK SYSTEM (OP) ARM SAFETY LOCK SYSTEM (OP) OVERLOAD WARNING SYSTEM (OP) RIPPER (OP) BEACON MOUNTING (OP) REAR WORK LAMP MOUNTING (OP) FRONT WORK LAMP MOUNTING (OP) WINDOW GUARD (OP) IMMOBILIZER (OP) COWLING MOUNTING (1) COWLING MOUNTING (2) COWLING MOUNTING (3) COWLING MOUNTING (4) COWLING MOUNTING (5) COWLING MOUNTING (6) UPPER FRAME MOUNTING BATTERY BOX MOUNTING ANTI-SLIP WALKWAY ENGINE MOUNTING SHORT ENGINE ASSEMBLY SERVICE CYLINDER HEAD ASSEMBLY SERVICE CYLINDER BLOCK ASSEMBLY LINER AND PISTON KIT SERVICE CRANKSHAFT ASSEMBLY ENGINE OVERHAUL GASKET KIT ROCKER COVER AND BREATHER CYLINDER HEAD CYLINDER BLOCK OIL PAN - FILLER - GAUGE FLYWHEEL AND HOUSING PISTON - CONNROD - CRANKSHAFT CAMSHAFT - VALVE TIMING GEAR ATTACHING PARTS OIL PUMP AND STRAINER OIL FILTER OIL COOLER OIL LINE FUEL LINE AND WATER SEPARATOR FUEL FД°LTER AND HOSE FUEL INJECTION PUMP GENERAL INJECTION PUMP GOVERNOR (1/2) GOVERNOR (2/2) AUTOMATIC TIMER FUEL FEED PUMP INJECTION PUMP COUPLING INJECTION PIPE AND NOZZLE FUEL RETURN HOSE WATER PUMP AND FAN MOUNTING WATER PIPE AND THERMOSTAT INLET MANIFOLD EXHAUST MANIFOLD TURBOCHARGER STARTER ALTERNATOR AND REGULATOR PLATE AND LABEL CHASSIS HARNESS EQUIPMENT COUPLING ASSEMBLY AIR INTAKE MOUNTING EXHAUST MOUNTING COOLING SYSTEM RADIATOR FUEL TANK MOUNTING AND FUEL LINE FUEL TANK MOUNTING AND FUEL LINE ENGINE CONTROL MOUNTING AIRCONDITION MOUNTING AIRCONDITION MOUNTING HEATER MOUNTING AIRCONDITION UNIT MAIN PIPING MOUNTING (1/3) MAIN PIPING MOUNTING (2/3) MAIN PIPING MOUNTING (3/3) MAIN CONTROL VALVE (1) MAIN CONTROL VALVE (2) MAIN CONTROL VALVE (3) MAIN CONTROL VALVE (4) MAIN CONTROL VALVE (5) MAIN CONTROL VALVE (6) MAIN CONTROL VALVE (7) MAIN CONTROL VALVE (8) HYDRAULIC PUMP GEAR PUMP PROPORTIONAL REDUCING VALVE PUMP REGULATOR REDUCTION GEAR - SWING UNIT SWING MOTOR - SWING UNIT LOWER PIPING MOUNTING REDUCTION GEAR - TRAVEL UNIT MOTOR ASSEMBLY - TRAVEL UNIT TURNING JOINT PILOT PIPING MOUNTING 1 (1/2) PILOT PIPING MOUNTING 1 (2/2) PILOT PIPING MOUNTING 2 (1/2) PILOT PIPING MOUNTING 2 (1/2) PILOT PIPING MOUNTING 2 (2/2) PILOT PIPING MOUNTING 2 (2/2) PILOT PIPING MOUNTING 3 REMOTE CONTROL VALVE (R/L) REMOTE CONTROL VALVE (R/L) PEDAL 3-SOLENOID PRIORITY VALVE 3-SOLENOID VALVE ATTACHMENT PIPING BOOM CYLINDER (R/L) BUCKET CYLINDER ARM CYLINDER HYDRAULIC TANK MOUNTING UPPER DRAIN AND RETURN PIPING MOUNTING UPPER DRAIN AND RETURN PIPING MOUNTING LOWER FRAME MOUNTING UPPER ROLLER LOWER ROLLER IDLER ASSEMBLY ADJUSTER ASSEMBLY TRACK CHAIN ASSEMBLY BOOM MOUNTING ARM MOUNTING GENERAL PURPOSE BUCKET WORKING ATTACHMENT CONTROL LUBRICATION PIPING MOUNTING LUBRICATION PIPING MOUNTING CAB MOUNTING CAB (1) CAB (1) CAB (2) CAB (3) CONSOLE BOX (R/H) CONSOLE BOX (L/H) CAB INTERIROR MOUNTING (1) CAB INTERIROR MOUNTING (1) CAB INTERIOR MOUNTING (2) CAB INTERIOR MOUNTING (2) OPERATOR SEAT ELECTRIC (1) ELECTRIC (1) ELECTRIC (2) ELECTRIC (3) MAIN HARNESS ENGINE HARNESS CAB MAIN HARNESS CAB MAIN HARNESS

Позиция на иллюстрации	Заводской номер детали		Название детали
11899	Н259001477		Seal Ring, Turbochrg.
12500А	Н259001478		Turbocharger Ass'y
12503	Н259001479		Bearing, T/C Shaft
12504	Н259001480		Thrust Bearing, T/C
12520	Н259001481		Cartridge, T/C
12521	Н259001482		Cover, T/C Compressor
12544А	Н259001483		Housing Ass'y, Bearing
12545	Н259001484		Housing, T/C Turbine
12572В	Н259001485		Plate, T/C Turbine Back
12572С	Н259001486		Plate, T/C Turbine Back
12597В	Н259001487		Ring, Turbine Piston
12597С	Н259001488		Ring, Turbine Piston
12606	Н259001489		Shaft&Turbine, T/C
12623	Н259001490		Wheel, T/C Compressor
12769С	Н259001491		Snap Ring, T/C INR
12772	Н259001492		Collar, T/C INR
12778	Н259001493		Nut, T/C
12779В	Н349003652		Nut, T/C
12784В	Н259001494		Gasket, Turbocharger
12798В	Н259001495		Bolt, T/C, INR
12798С	Н259001496		Bolt, T/C, INR
12798D	Н259001497		Bolt, T/C, INR
12799В	Н259001498		Clamp, T/C
12799С	Н259001499		Clamp, T/C

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
