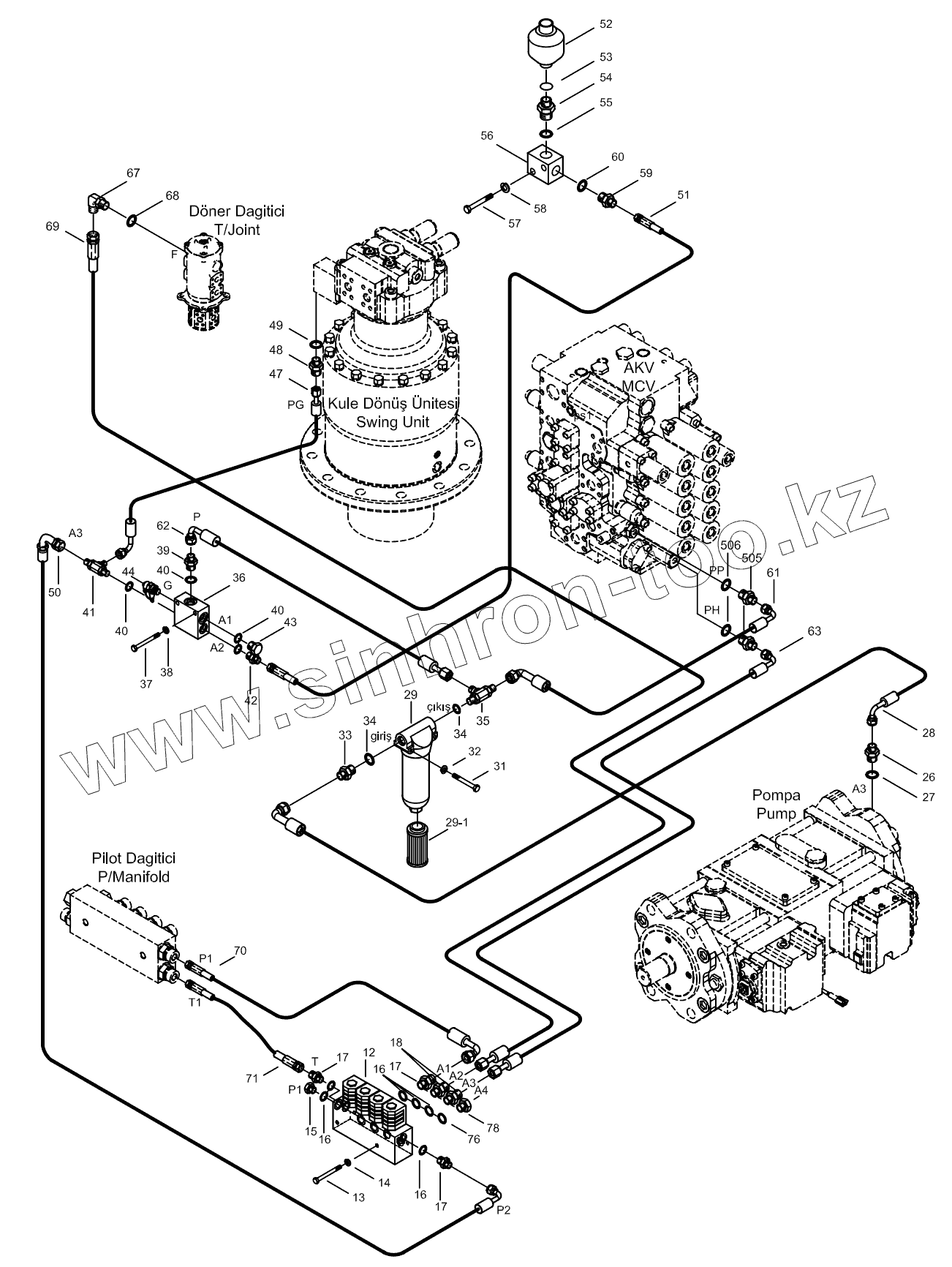

Каталог запасных частей к технике: Hidromek HMK 300LC. PILOT PIPING MOUNTING 2 (2/2)
12
13
14
15
16
16
16
17
17
17
18
26
27
28
29
29_1
31
32
33
34
34
35
36
37
38
39
40
40
40
41
42
43
44
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
67
68
69
70
71
76
78
505
506
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 12 | H343201500 | Valve Solenoid | |
| 13 | N01/03800482 | Bolt, Hex. | |
| 14 | N03/1310010 | Washer, Spr. | |
| 15 | N16/X120004 | Plug | |
| 16 | N10/2001024 | O-Ring | |
| 17 | N16/K114356 | Connector | |
| 18 | N16/K114341 | Connector | |
| 26 | N16/K114343 | Connector | |
| 27 | N10/2001724 | O-Ring | |
| 28 | 99U093218 | Hose Ass'y | |
| 29 | H253201100 | Pilot Filter | |
| 29_1 | H259082003 | Element, Filter | |
| 31 | N01/0370326 | Bolt, Hex. | |
| 32 | N03/1310008 | Washer, Spr. | |
| 33 | N16/K114343 | Connector | |
| 34 | N10/2001724 | O-Ring | |
| 35 | H343201401 | Tee | |
| 36 | H343202300 | Check Valve, Pilot | |
| 37 | N01/0380410 | Bolt, Hex. | |
| 38 | N03/1310010 | Washer, Spr. | |
| 39 | N16/K114357 | Connector | |
| 40 | N10/2001322 | O-Ring | |
| 41 | H343203202 | Tee | |
| 42 | N16/K114348 | Connector | |
| 43 | N16/X120001 | Plug | |
| 44 | F99/70100 | Coupling, Screw | |
| 47 | 97P091243 | Hose Ass'y | |
| 48 | N16/K114341 | Connector | |
| 49 | N10/2001024 | O-Ring | |
| 50 | 97S092264 | Hose Ass'y | |
| 51 | 97N091224 | Hose Ass'y | |
| 52 | H343202501 | Accumulator | |
| 53 | N03/0000015 | Washer | |
| 54 | N16/K520107 | Connector | |
| 55 | N10/2001322 | O-Ring | |
| 56 | H343202600 | Block, Accumulator | |
| 57 | N01/0380650 | Bolt, Hex. | |
| 58 | N03/1310011 | Washer, Spr. | |
| 59 | N16/K114341 | Connector | |
| 60 | N10/2001024 | O-Ring | |
| 61 | 97U091246 | Hose Ass'y | |
| 62 | 99P093213 | Hose Ass'y | |
| 63 | 97Q091236 | HOSE ASSY | |
| 67 | N16/N910001 | Elbow | |
| 68 | N10/2001024 | O-Ring | |
| 69 | 97N091246 | Hose | |
| 70 | 97Q092219 | Hose Ass'y | |
| 71 | 97N092218 | Hose Ass'y | |
| 76 | N10/2001322 | O-Ring | |
| 78 | N16/X120001 | Plug | |
| 505 | N16/K114341 | Connector | |
| 506 | N10/2001024 | O-Ring |
