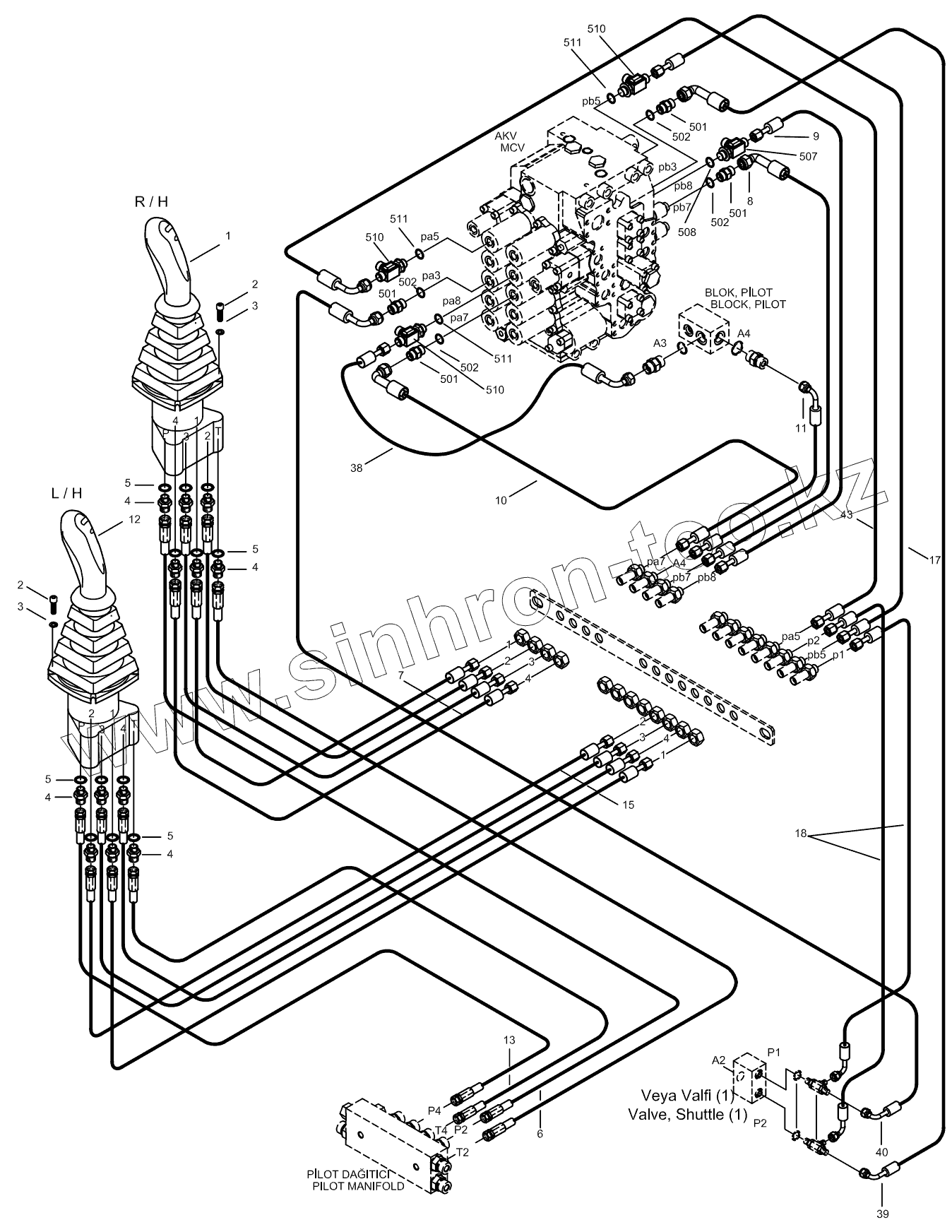

Каталог запасных частей к технике: Hidromek HMK 300LC. PILOT PIPING MOUNTING 1 (1/2)
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
5
5
5
6
7
8
9
10
11
12
12
13
15
17
18
38
39
40
43
501
501
501
501
502
502
502
502
507
508
510
510
510
511
511
511
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H343200302 | Joistic ass' y, r/ h | |
| 1 | H343200301 | Joistic Ass'y, R/H | |
| 2 | N01/5870376 | Bolt, Cyl. Hd. | |
| 3 | N03/1360008 | Washer, Spr. | |
| 4 | N16/K310366 | Connector | |
| 5 | N10/2001119 | O-Ring | |
| 6 | 97N092237 | Hose Ass'y | |
| 7 | 97N092240 | Hose Ass'y | |
| 8 | 97Q092236 | Hose Ass'y | |
| 9 | 97N092240 | Hose Ass'y | |
| 10 | 97Q092236 | Hose Ass'y | |
| 11 | 97Q092217 | Hose Ass'y | |
| 12 | H343200901 | Joistic Ass'y, L/H | |
| 12 | H343200902 | Joistic ass' y, l/ h | |
| 13 | 97N092240 | Hose Ass'y | |
| 15 | 97N092237 | Hose Ass'y | |
| 17 | 97N092248 | Hose Ass'y | |
| 18 | 97Q092217 | Hose Ass'y | |
| 38 | 97Q092229 | Hose Ass'y | |
| 39 | 97U092232 | Hose | |
| 40 | 97S092232 | Hose Ass'y | |
| 43 | 97Q092248 | Hose Ass'y | |
| 501 | N16/K114342 | Connector | |
| 502 | N10/2001322 | O-Ring | |
| 507 | H343203202 | Tee | |
| 508 | N10/2001322 | O-Ring | |
| 510 | N16/T040404 | Tee | |
| 511 | N10/2001322 | O-Ring |
