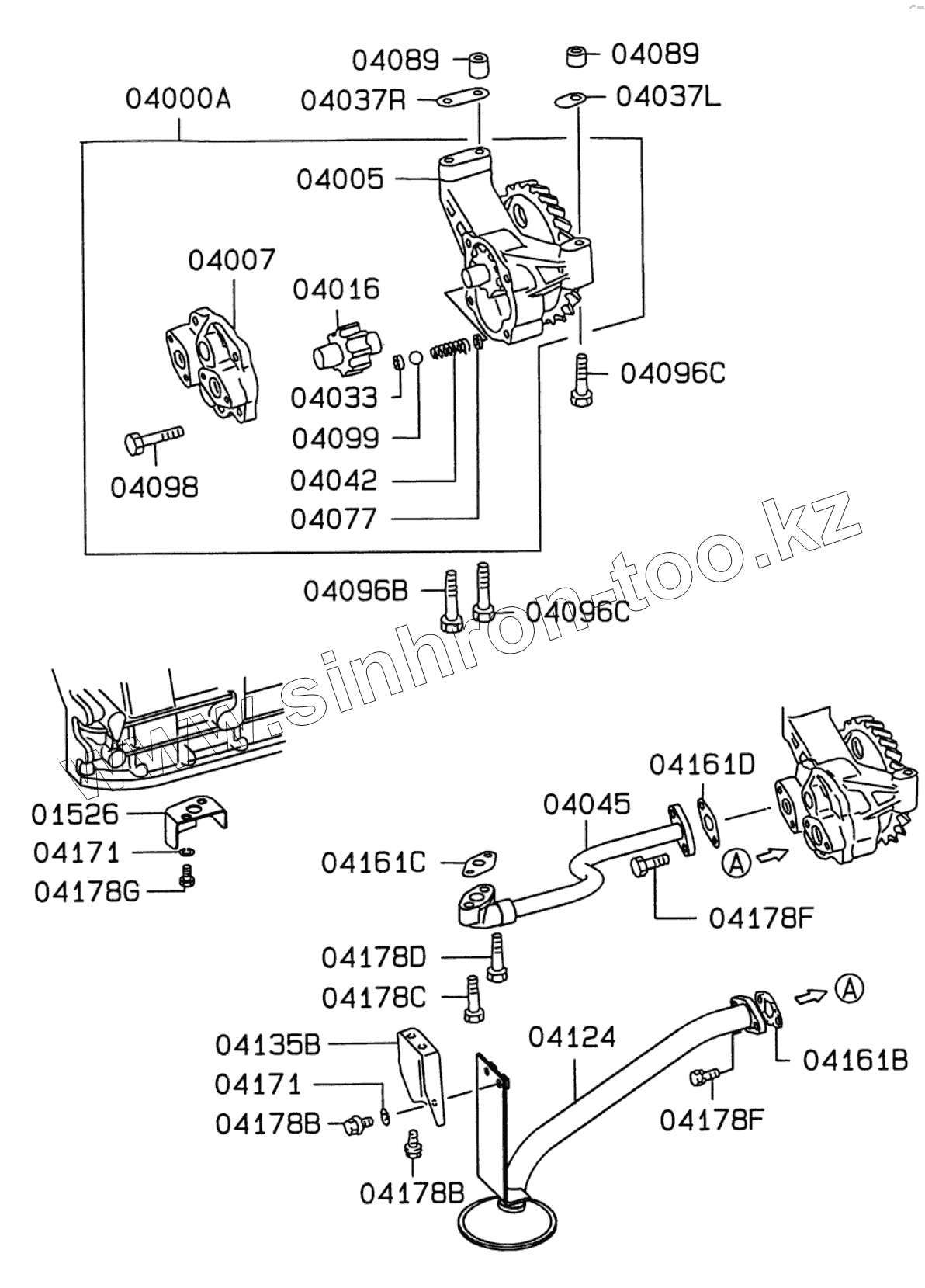

Каталог запасных частей к технике: Hidromek HMK 300LC. OIL PUMP AND STRAINER
01526
04000A
04005
04007
04016
04033
04037L
04037L
04037R
04037R
04042
04045
04077
04089
04089
04096B
04096C
04096C
04098
04099
04124
04135B
04161B
04161C
04161D
04171
04171
04171
04171
04171
04171
04178B
04178B
04178B
04178B
04178B
04178B
04178C
04178D
04178F
04178F
04178G
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01526 | H259001171 | Deflector, Return Flow | |
| 04000A | H259001172 | Oil Pump Ass'y, Eng. | |
| 04005 | H259001173 | Gear and Case KIT | |
| 04007 | H259001174 | Cover, Eng Oil Pump | |
| 04016 | H259001175 | Gear, Oil Pump Driven | |
| 04033 | H259001176 | Seat, Relief Valve | |
| 04037L | H259001177 | Shim, Oil Pump LH | |
| 04037L | H259001178 | Shim, Oil Pump LH | |
| 04037R | H259001179 | Shim, Oil Pump RH | |
| 04037R | H259001180 | Shim, Oil Pump RH | |
| 04042 | H259001181 | Spring, Relief Valve | |
| 04045 | H259001182 | Tube, Pump Outlet | |
| 04077 | H259001183 | Washer, Pump INR | |
| 04089 | H259001184 | Pin, Oil Pump | |
| 04096B | H259001090 | Bolt, Eng. Oil Pump | |
| 04096C | H349003633 | Bolt, Thermostat | |
| 04098 | H259001090 | Bolt, Eng. O. Pump INR | |
| 04099 | H259001187 | Ball, Oil Pump INR | |
| 04124 | H259001188 | Strainer, Oil Pan | |
| 04135B | H259001189 | Stay, Oil Strainer | |
| 04161B | H259001190 | Gasket, Oil Strainer | |
| 04161C | H259001191 | Gasket, Oil Strainer | |
| 04161D | H259001192 | Gasket, Oil Strainer | |
| 04171 | H259001193 | Washer, Pln, Strainer | |
| 04171 | H349003503 | Washer, Governor | |
| 04178B | H349003053 | Bolt | |
| 04178B | H259001089 | Bolt, Oil Strainer | |
| 04178C | H349003076 | Bolt | |
| 04178D | H349003192 | Bolt, Oil Strainer | |
| 04178F | H349003172 | Bolt | |
| 04178G | H259001195 | Bolt, Oil Strainer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
