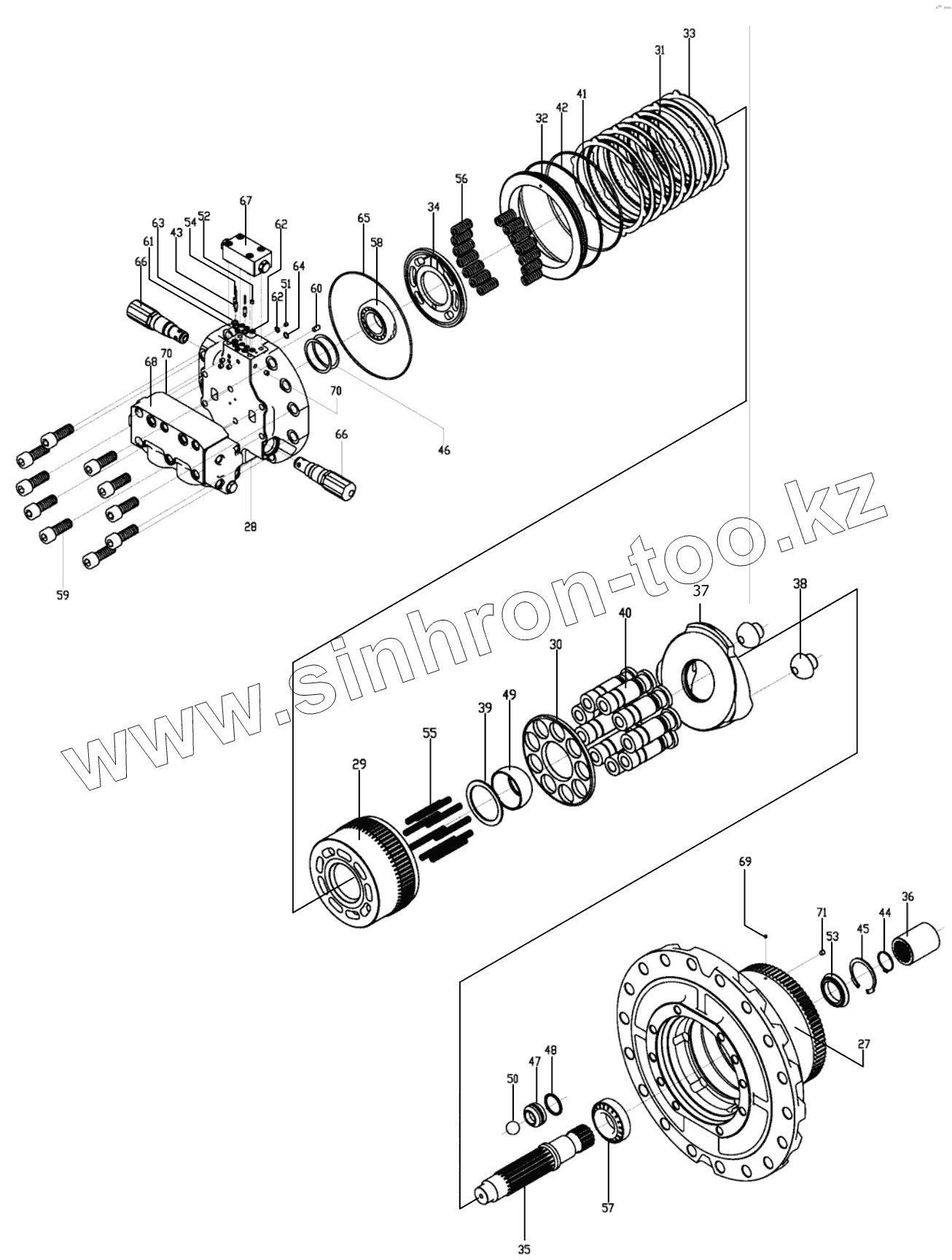

Каталог запасных частей к технике: Hidromek HMK 300LC. MOTOR ASSEMBLY - TRAVEL UNIT
H259025090
H259025083
H259025082
H259025074
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
46
46
46
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
62
63
64
65
66
66
67
68
69
70
70
71
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| H259025028 | H259025028 | Motor Ass'y | |
| H259025090 | H259025090 | Shifter Piston Set | |
| H259025083 | H259025083 | Swash Plate KIT | |
| H259025082 | H259025082 | Friction/Seperator KIT | |
| H259025074 | H259025074 | Seal KIT | |
| 27 | H259025029 | Casing | |
| 28 | H259025030 | Rear Cover | |
| 29 | H259025031 | Cylinder Block | |
| 30 | H259025032 | Shoe Retainer | |
| 31 | H259025033 | Friction Plate | |
| 32 | H259025034 | Brake Piston | |
| 33 | H259025035 | Separating Plate | |
| 34 | H259025036 | Valve Plate | |
| 35 | H259025037 | Shaft | |
| 36 | H259025038 | Coupling | |
| 37 | H259025039 | Swash Plate | |
| 38 | H259025040 | Pivot | |
| 39 | H259025041 | Spring Holder | |
| 40 | H259025042 | Piston Ass'y | |
| 41 | H259025043 | D-Ring | |
| 42 | H259025044 | D-Ring | |
| 43 | H259025045 | Check Valve | |
| 44 | H259025046 | Retaining Ring,C Type | |
| 45 | H259025047 | Retaining Ring | |
| 46 | H259025088 | Shim, t=0.8 | |
| 46 | H259025048 | Shim KIT | |
| 46 | H259025084 | Shim, t=0.4 | |
| 46 | H259025085 | Shim, t=0.5 | |
| 46 | H259025086 | Shim, t=0.6 | |
| 46 | H259025087 | Shim, t=0.7 | |
| 46 | H259025089 | Shim, t=0.9 | |
| 47 | H259025049 | Shifter Piston | |
| 48 | H259025050 | Piston Seal | |
| 49 | H259025051 | Ball Joint | |
| 50 | H259025052 | Steel Ball | |
| 51 | H259025053 | ORIFICE | |
| 52 | H259025054 | Restrictor, Blue White | |
| 53 | H259025055 | Oil Seal | |
| 54 | H259025056 | Check Valve Spring | |
| 55 | H259025057 | Cylinder Spring | |
| 56 | H259025058 | Brake Spring | |
| 57 | H259025059 | Bearing | |
| 58 | H259025060 | Needle Bearing | |
| 59 | H259025061 | Hex. Socket Hd. Bolt | |
| 60 | H259025062 | Parallel Pin | |
| 61 | H259025063 | O-Ring | |
| 62 | H259025064 | O-Ring | |
| 63 | H259025065 | O-Ring | |
| 64 | H259025066 | O-Ring | |
| 65 | H259025067 | O-Ring | |
| 66 | H259025068 | OverLoad Relief Valve | |
| 67 | H259025069 | Pilot Valve | |
| 68 | H259025070 | Brake Valve | |
| 69 | H259025071 | PLUG ASSY | |
| 70 | H259025072 | PLUG | |
| 71 | H259025073 | PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
