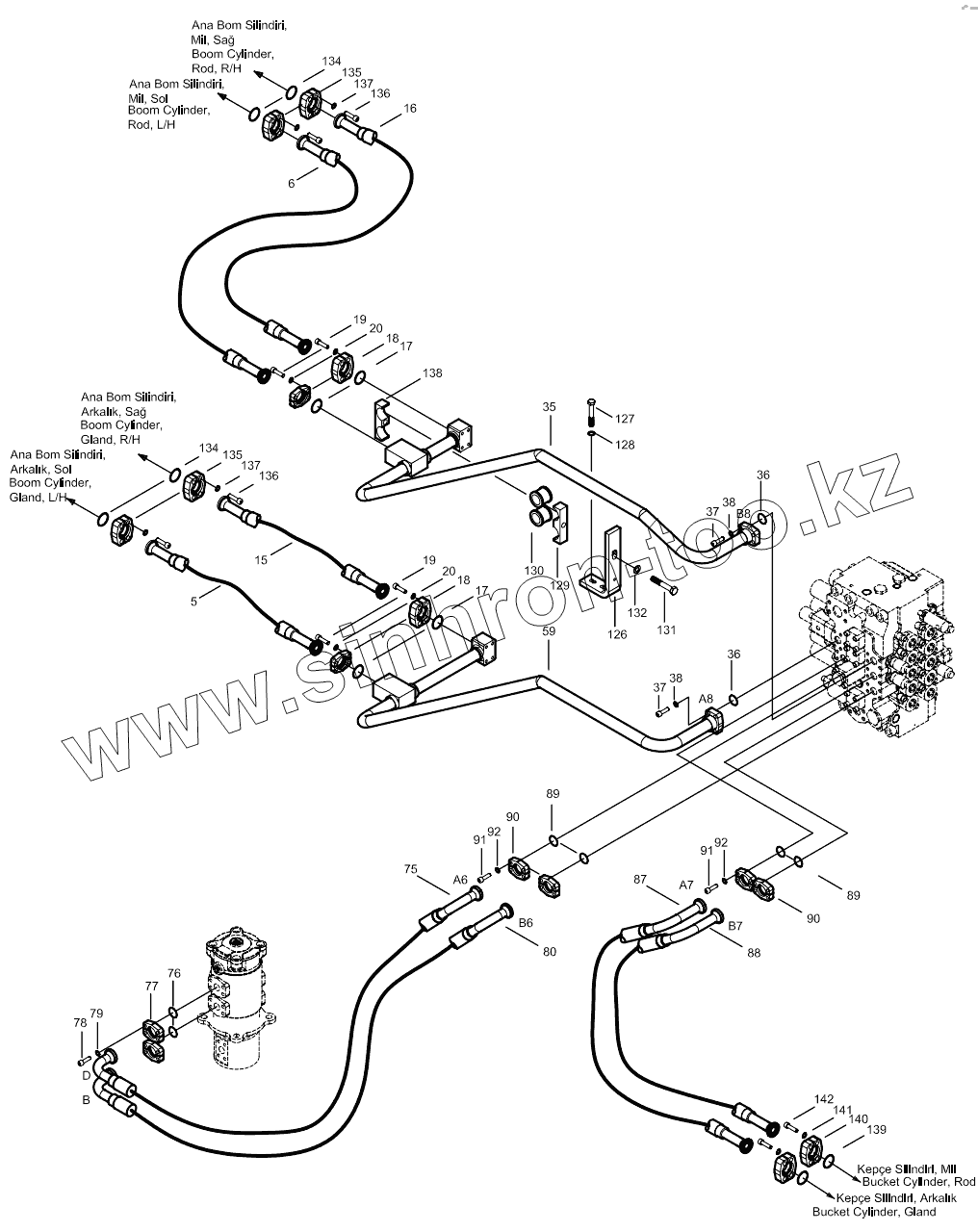

Каталог запасных частей к технике: Hidromek HMK 300LC. MAIN PIPING MOUNTING (2/3)
5
6
15
16
17
17
18
18
19
19
20
20
35
36
36
37
37
38
38
59
75
76
77
78
79
80
87
88
89
89
90
90
91
91
92
92
126
127
128
129
130
131
132
134
134
135
135
136
136
137
137
138
139
140
141
142
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4 | H253000200 | Pipe W.A. | |
| 5 | H253000400 | Hose Ass'y | |
| 6 | H253000500 | Hose Ass'y | |
| 15 | H253000900 | Hose Ass'y | |
| 16 | H253001000 | Hose Ass'y | |
| 17 | N10/2003335 | O-Ring | |
| 18 | N16/J360104 | Flange | |
| 19 | N01/5890842 | Bolt, Cylinder Head | |
| 20 | N03/1360010 | Washer, Spr. | |
| 35 | H253001700 | Pipe W.A. | |
| 36 | N10/2003335 | O-Ring | |
| 37 | N01/5890830 | Bolt, Cyl. Hd. | |
| 38 | N03/1360010 | Washer, Spr. | |
| 59 | H253002200 | Pipe W.A. | |
| 75 | H253002800 | Hose Ass'y | |
| 76 | N10/2003335 | O-Ring | |
| 77 | N16/J360104 | Flange | |
| 78 | N01/5890830 | Bolt, Cyl. Hd. | |
| 79 | N03/1360010 | Washer, Spr. | |
| 80 | H253002900 | Hose Ass'y | |
| 87 | H253003200 | Hose Ass'y | |
| 88 | H253003300 | Hose Ass'y | |
| 89 | N10/2003335 | O-Ring | |
| 90 | N16/J360104 | Flange | |
| 91 | N01/5890830 | Bolt, Cyl. Hd. | |
| 92 | N03/1360010 | Washer, Spr. | |
| 126 | H343002500 | Support | |
| 127 | N01/0232822 | Bolt, Hex. | |
| 128 | N03/1310012 | Washer, Spr. | |
| 129 | H343003200 | Clamp | |
| 130 | H340102500 | Rubber | |
| 131 | N01/0381286 | Bolt, Hex. | |
| 132 | N03/1310014 | Washer, Spr. | |
| 134 | N10/2003335 | O-Ring | |
| 135 | N16/J360104 | Flange | |
| 136 | N01/5890854 | Bolt, Cylinder Head | |
| 137 | N03/1360010 | Washer, Spr. | |
| 138 | H343011200 | Clamp | |
| 139 | N10/2003335 | O-Ring | |
| 140 | N16/J360104 | Flange | |
| 141 | N01/5890854 | Bolt, Cylinder Head | |
| 142 | N03/1360010 | Washer, Spr. |
