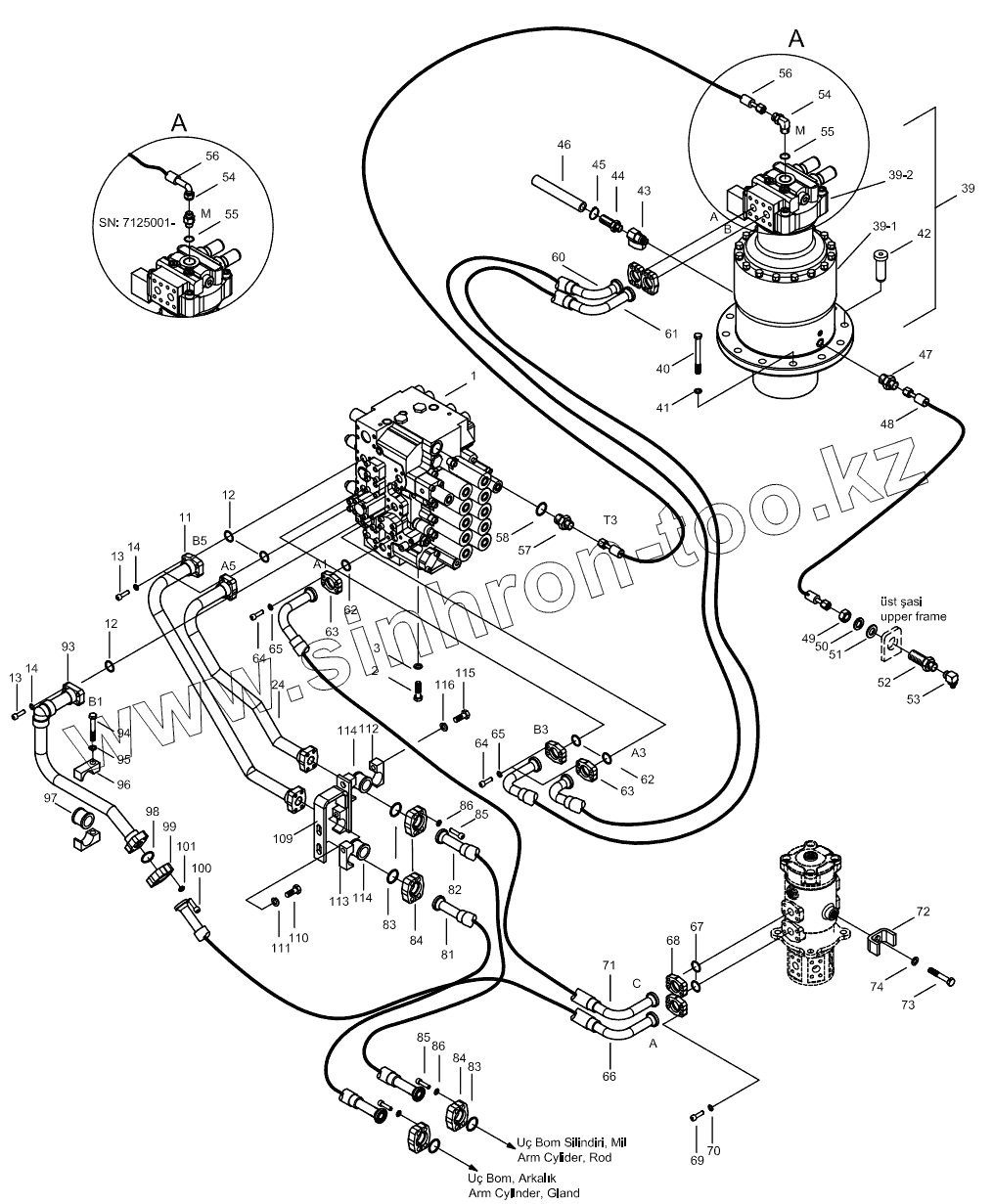

Каталог запасных частей к технике: Hidromek HMK 300LC. MAIN PIPING MOUNTING (1/3)
1
2
3
11
12
12
13
13
14
14
24
39
39
39
39_1
39_2
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
N16/K114345
N16/K114345
55
55
56
56
99Q095209
99Q095209
57
58
60
61
62
62
63
63
64
64
65
65
66
67
68
69
70
71
72
73
74
81
82
83
83
84
84
85
85
86
86
93
93
94
95
96
97
98
99
100
101
109
110
111
112
113
114
114
115
116
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H253000100 | Main Control Valve | |
| 2 | N01/0233566 | Bolt, Hex. | |
| 3 | N03/1310014 | Washer, Spr. | |
| 11 | H253000800 | Pipe, W.A. | |
| 12 | N10/2003335 | O-Ring | |
| 13 | N01/5890830 | Bolt, Cyl. Hd. | |
| 14 | N03/1360010 | Washer, Spr. | |
| 24 | H253001300 | Pipe, W.A. | |
| 39 | H253001900 | Swing Unit | |
| 39 | H253001901 | Swing Unit | |
| 39 | H253001902 | Swing Unit | |
| 39_1 | Reduction Gear | Reduction Gear | |
| 39_2 | Motor Ass'y | Motor Ass'y | |
| 40 | N01/0382018 | Bolt, Hex. | |
| 41 | N03/0800005 | Washer | |
| 42 | H343003100 | Pin | |
| 43 | N14/0020300 | Spherical Valve | |
| 44 | H343008100 | Connector | |
| 45 | N07/4010016 | Clamp | |
| 46 | H343008200 | Hose | |
| 47 | N16/K440301 | Connector | |
| 48 | 97N091221 | Hose Ass'y | |
| 49 | N02/3560326 | Nut | |
| 50 | N03/1310014 | Washer, Spr. | |
| 51 | N03/0100027 | Washer, Pln. | |
| 52 | H343011300 | Connector | |
| 53 | N08/1130000 | Grease, Nipple | |
| 54 | N16/N910005 | Elbow | |
| N16/K114345 | N16/K114345 | Connector | |
| 55 | N10/2002835 | O-Ring | |
| 56 | 99N095209 | Hose Ass'y | |
| 99Q095209 | 99Q095209 | Hose Ass'y | |
| 57 | N16/K114345 | Connector | |
| 58 | N10/2002835 | O-Ring | |
| 60 | H253002400 | Hose Ass'y | |
| 61 | H253002500 | Hose Ass'y | |
| 62 | N10/2003335 | O-Ring | |
| 63 | N16/J360104 | Flange | |
| 64 | N01/5890830 | Bolt, Cyl. Hd. | |
| 65 | N03/1360010 | Washer, Spr. | |
| 66 | H253002600 | Hose Ass'y | |
| 67 | N10/2003335 | O-Ring | |
| 68 | N16/J360104 | Flange | |
| 69 | N01/5890830 | Bolt, Cyl. Hd. | |
| 70 | N03/1360010 | Washer, Spr. | |
| 71 | H253002700 | Hose Ass'y | |
| 72 | H343002100 | Support | |
| 73 | N01/0234238 | Bolt, Hex. | |
| 74 | N03/1310016 | Washer, Spr. | |
| 81 | H253003000 | Hose Ass'y | |
| 82 | H253003100 | HOSE ASSY | |
| 83 | N10/2003335 | O-Ring | |
| 84 | N16/J360104 | Flange | |
| 85 | N01/5890854 | Bolt, Cylinder Head | |
| 86 | N03/1360010 | Washer, Spr. | |
| 93 | H253003400 | Pipe, W.A. | |
| 93 | H253003401 | Pipe, W.A. | |
| 94 | N01/0381238 | Bolt, Hex. | |
| 95 | N03/1310014 | Washer, Spr. | |
| 96 | H343301500 | Clamp | |
| 97 | H340102500 | Rubber | |
| 98 | N10/2003335 | O-Ring | |
| 99 | N16/J360104 | Flange | |
| 100 | N01/5890842 | Bolt, Cylinder Head | |
| 101 | N03/1360010 | Washer, Spr. | |
| 109 | H253003800 | Clamp Support WA | |
| 110 | N01/0233566 | Bolt, Hex. | |
| 111 | N03/1310014 | Washer, Spr. | |
| 112 | H343301500 | Clamp | |
| 113 | H340104400 | Clamp | |
| 114 | H340102500 | Rubber | |
| 115 | N01/0381238 | Bolt, Hex. | |
| 116 | N03/1310014 | Washer, Spr. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
