Каталог запасных частей к технике: Hidromek HMK 300LC. LOWER FRAME MOUNTING
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
17
18
19
20
21
22
22_1
22_1
22_2
22_3
22_4
23
24
24
25
26
27
28
29
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
51

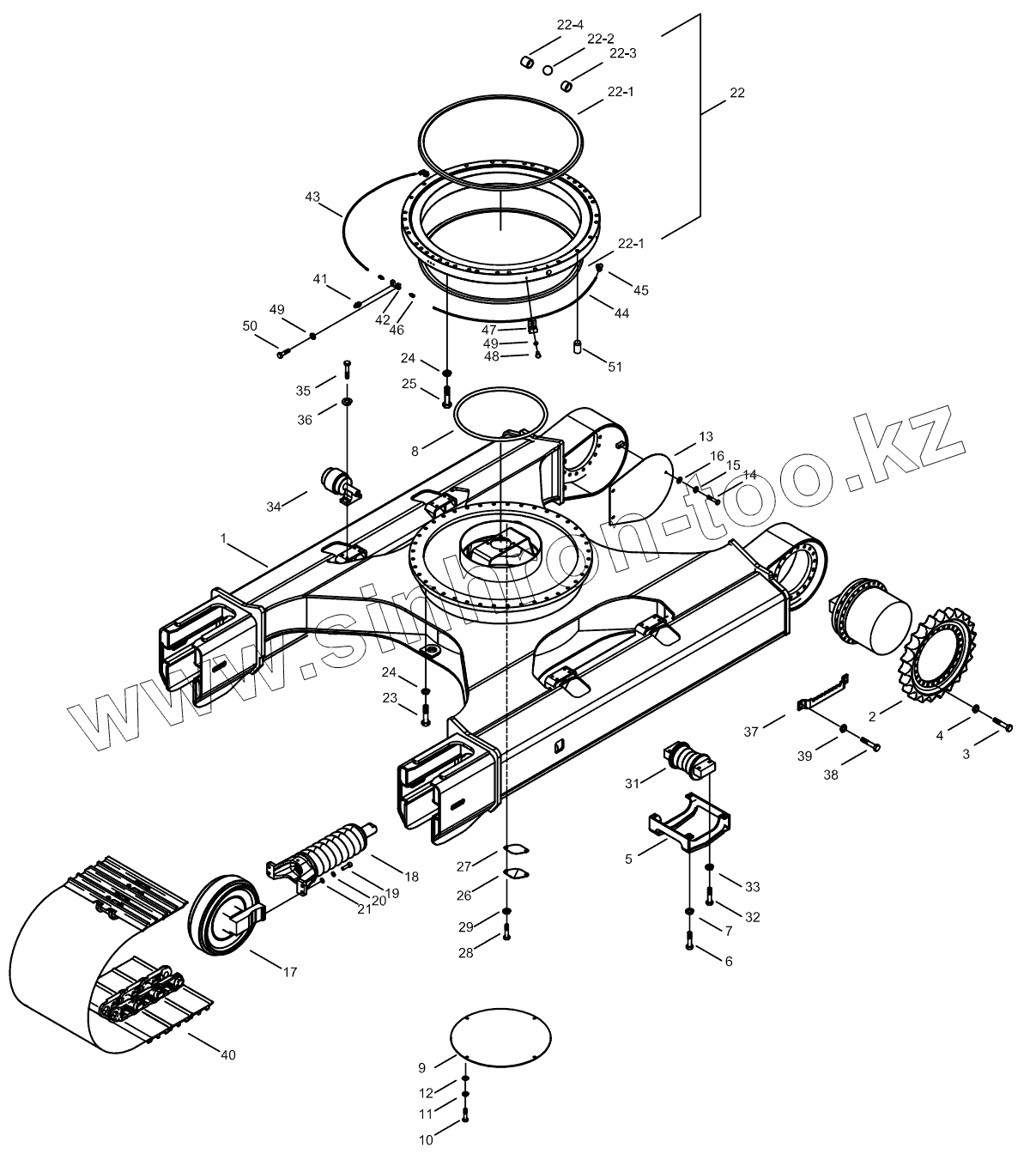

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Н254000100 | Frame W.A., Track | |
| 1 | Н254000101 | Frame W.A., Track | |
| 2 | Н254006900 | Sproket | |
| 2 | Н254100200 | Sproket | |
| 3 | Н254107000 | Bolt, Hex. | |
| 4 | N03/0800003 | Washer, Pln. | |
| 5 | Н254100300 | Guard, Track | |
| 6 | N01/0381718 | Bolt, Hex. | |
| 7 | N03/1310016 | Washer, Spr. | |
| 8 | Н344104900 | Seal, Grease | |
| 9 | Н344100700 | Cover, Bottom | |
| 10 | N01/0232846 | Bolt, Hex. | |
| 11 | N03/1310012 | Washer, Spr. | |
| 12 | N03/0100023 | Washer, Pln. | |
| 13 | Н254100700 | Cover, Travel Unit, L | |
| 13 | Н254100701 | Cover, Travel Unit, L | |
| 14 | N01/0232846 | Bolt, Hex. | |
| 15 | N03/1310012 | Washer, Spr. | |
| 16 | N03/0100023 | Washer, Pln. | |
| 17 | Н254101300 | Idler Ass'y | |
| 17 | Н254101301 | Idler Ass'y | |
| 18 | Н254102900 | Adjuster Ass'y | |
| 19 | N01/5892054 | Bolt, Cyl. Hd. | |
| 20 | N03/1360015 | Washer, Spr. | |
| 21 | N03/0100031 | Washer, Pln. | |
| 22 | Н254104800 | Swing Ring Ass'y | |
| 22_1 | Н259031008 | Seal, Swing Ring | |
| 22_2 | Н259031005 | Ball, Swing Ring | |
| 22_3 | Н259031006 | Support A, Swing R. | |
| 22_4 | Н259031007 | Support B, Swing R. | |
| 23 | N01/0392016 | Bolt, Hex. | |
| 24 | N03/0800005 | Washer | |
| 25 | N01/0392088 | Bolt, Hex. | |
| 26 | Н341201500 | Cover | |
| 27 | Н341201600 | Gasket | |
| 28 | N01/0232462 | Bolt, Hex. | |
| 29 | N03/1310011 | Washer, Spr. | |
| 31 | Н254105100 | Roller, Lower | |
| 32 | N01/0381860 | BOLT | |
| 33 | N03/1310016 | Washer, Spr. | |
| 34 | Н254105900 | Roller,Upper | |
| 35 | N01/0381214 | Bolt, Hex. | |
| 36 | N03/1310014 | Washer, Spr. | |
| 37 | Н254100800 | Step | |
| 38 | N01/0233566 | Bolt, Hex. | |
| 39 | N03/0020124 | Washer, Pln. | |
| 40 | H254200100 | Track Ass'y | |
| 41 | N08/1110000 | Grease, Nipple | |
| 42 | H254101500 | Block | |
| 43 | H254101600 | Pipe, Grease | |
| 44 | H254101700 | Pipe, Grease | |
| 45 | H345801100 | Elbow | |
| 46 | H345800700 | Connector | |
| 47 | N07/7010908 | Clamp | |
| 48 | N01/0222078 | Bolt, Hex. | |
| 49 | N03/1310010 | Washer, Spr. | |
| 50 | N01/0370374 | Bolt, Hex. | |
| 51 | H344107300 | Pin, Swing Ring |
