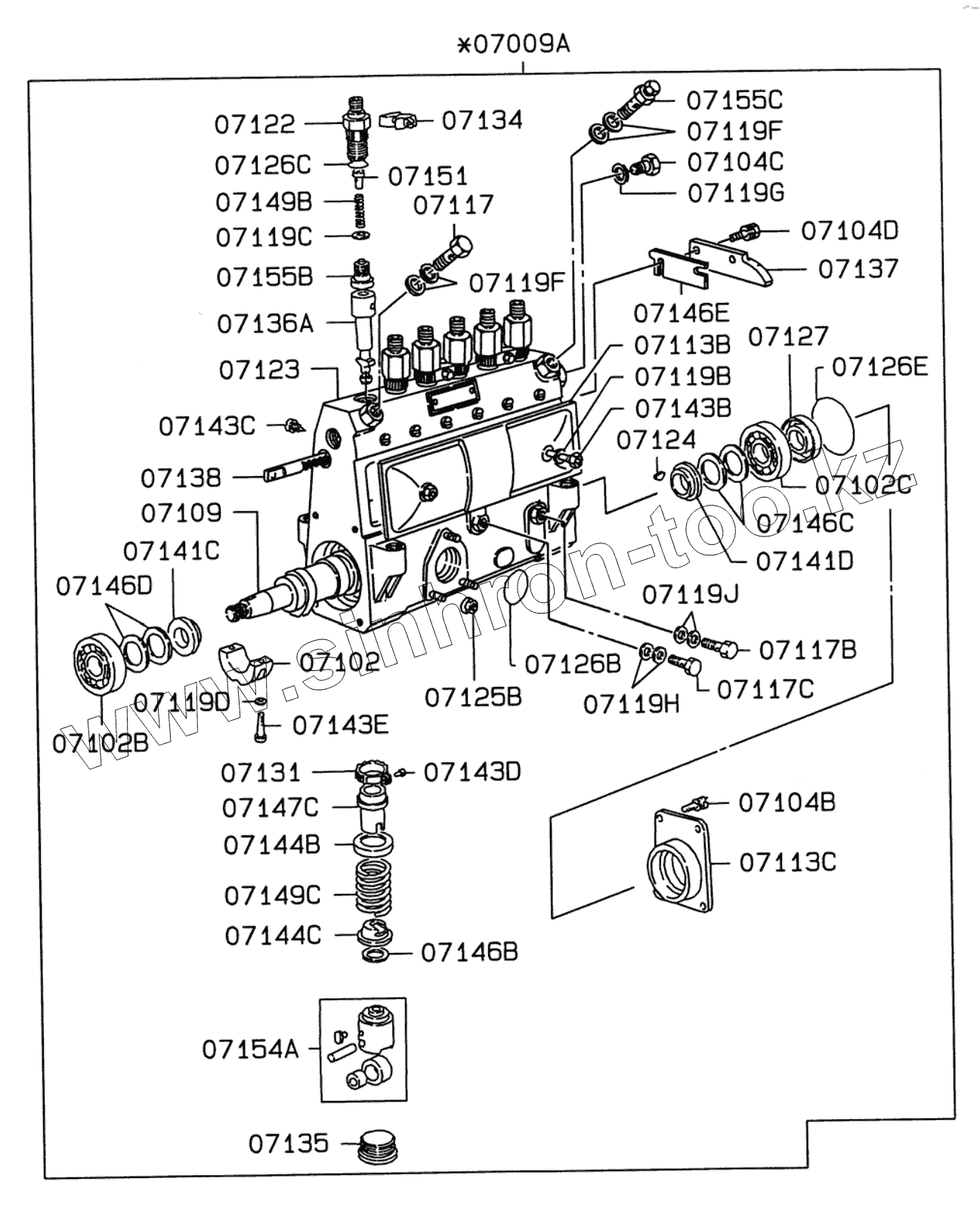

Каталог запасных частей к технике: Hidromek HMK 300LC. INJECTION PUMP
07009А
07102
07102В
07102В
07102С
07102С
07104В
07104С
07104D
07109
07113В
07113С
07117
07117В
07117С
07119В
07119С
07119D
07119F
07119F
07119G
07119Н
07119J
07122
07123
07124
07125В
07126В
07126С
07126Е
07127
07131
07134
07135
07136А
07137
07138
07141С
07141D
07143 В
07143С
07143D
07143Е
07144В
07144С
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146B
07146C
07146C
07146C
07146C
07146C
07146C
07146C
07146C
07146C
07146D
07146D
07146D
07146D
07146D
07146D
07146D
07146D
07146D
07146E
07146E
07146E
07146E
07147C
07149B
07149C
07151
07154A
07155B
07155C
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 07009А | Body Ass'y, Inj. Pump | Body Ass'y, Inj. Pump | |
| 07102 | Н259001287 | Bearing, Inj. Pump | |
| 07102В | Н349003289 | Bearing, Inj. Pump | |
| 07102В | Н349003290 | Bearing, Inj. Pump | |
| 07102С | Н349003289 | Bearing, Inj. Pump | |
| 07102С | Н349003290 | Bearing, Inj. Pump | |
| 07104В | Н259001288 | Bolt, Inj. Pump | |
| 07104С | Н259001289 | Bolt, Inj. Pump | |
| 07104D | Н259001290 | Bolt, Inj. Pump | |
| 07109 | Н259001291 | Camshaft, Inj. P. Body | |
| 07113В | Н349003294 | Cover, Inj. Pump Body | |
| 07113С | Н259001292 | Cover, Inj. Pump Body | |
| 07117 | Н349003296 | Eyebolt, Inj. Pump | |
| 07117В | Н259001293 | Eyebolt, Inj. Pump | |
| 07117С | Н349003297 | Eyebolt, Inj. Pump | |
| 07119В | Н349003298 | Gasket, Inj. Pump | |
| 07119С | Н259001294 | Gasket, Inj. Pump | |
| 07119D | Н349003300 | Gasket, Inj. Pump | |
| 07119F | Н349003302 | Gasket, Inj. Pump | |
| 07119G | Н349003406 | Gasket, Inj. Pump | |
| 07119Н | Н349003407 | Gasket, Inj. Pump | |
| 07119J | Н349003403 | Gasket, Inj. Pump | |
| 07122 | Н259001295 | Holder, Inj. Pump Bdy. | |
| 07123 | Н259001296 | Housing, Inj. P. Body | |
| 07124 | Н349003306 | Key, Inj. Pump Body | |
| 07125В | Н349003307 | Nut, Inj Pump Body | |
| 07126В | Н349003309 | O-Ring, Inj. Pump B. | |
| 07126С | Н259001297 | O-Ring, Inj. Pump B. | |
| 07126Е | Н259001298 | O-Ring, Inj. Pump B. | |
| 07127 | Н349003312 | Oil Seal, Inj. Pump B. | |
| 07131 | Н349003313 | Pinion, Inj. Pump B. | |
| 07134 | Н259001299 | Plate, Inj. Pump B. | |
| 07135 | Н259001300 | Plug, Inj. Pump B. | |
| 07136А | Н259001301 | Plunger Ass'y | |
| 07137 | Н259001302 | Pointer, Inj. Pomp | |
| 07138 | Н349003317 | Rack, Inj. Pump Body | |
| 07141С | Н349003319 | Ring, Inj. Pump Body | |
| 07141D | Н349003319 | Ring, Inj. Pump Body | |
| 07143 В | Н349003320 | Screw, Inj. Pump B. | |
| 07143С | Н349003321 | Screw, Inj. Pump B. | |
| 07143D | Н349003322 | Screw, Inj. Pump B. | |
| 07143Е | Н259001303 | Screw, Inj. Pump B. | |
| 07144В | Н259001304 | Seat, Inj. Pump Body | |
| 07144С | Н259001305 | Seat, Inj. Pump Body | |
| 07146B | H349003326 | Shim, Inj. Pump Body | |
| 07146B | H349003327 | Shim, Inj. Pump Body | |
| 07146B | H349003328 | Shim, Inj. Pump Body | |
| 07146B | H349003329 | Shim, Inj. Pump Body | |
| 07146B | H349003330 | Shim, Inj. Pump Body | |
| 07146B | H349003331 | Shim, Inj. Pump Body | |
| 07146B | H349003332 | Shim, Inj. Pump Body | |
| 07146B | H349003333 | Shim, Inj. Pump Body | |
| 07146B | H349003334 | Shim, Inj. Pump Body | |
| 07146B | H349003335 | Shim, Inj. Pump Body | |
| 07146B | H349003336 | Shim, Inj. Pump Body | |
| 07146B | H349003337 | Shim, Inj. Pump Body | |
| 07146B | H349003338 | Shim, Inj. Pump Body | |
| 07146B | H349003339 | Shim, Inj. Pump Body | |
| 07146B | H349003340 | Shim, Inj. Pump Body | |
| 07146B | H349003341 | Shim, Inj. Pump Body | |
| 07146B | H349003342 | Shim, Inj. Pump Body | |
| 07146B | H349003343 | Shim, Inj. Pump Body | |
| 07146B | H349003344 | Shim, Inj. Pump Body | |
| 07146B | H349003345 | Shim, Inj. Pump Body | |
| 07146B | H349003346 | Shim, Inj. Pump Body | |
| 07146B | H349003347 | Shim, Inj. Pump Body | |
| 07146B | H349003348 | Shim, Inj. Pump Body | |
| 07146B | H349003349 | Shim, Inj. Pump Body | |
| 07146B | H349003350 | Shim, Inj. Pump Body | |
| 07146B | H349003351 | Shim, Inj. Pump Body | |
| 07146B | H349003352 | Shim, Inj. Pump Body | |
| 07146B | H349003353 | Shim, Inj. Pump Body | |
| 07146B | H349003354 | Shim, Inj. Pump Body | |
| 07146C | H349003355 | Shim, Inj. Pump Body | |
| 07146C | H349003356 | Shim, Inj. Pump Body | |
| 07146C | H349003357 | Shim, Inj. Pump Body | |
| 07146C | H349003358 | Shim, Inj. Pump Body | |
| 07146C | H349003359 | Shim, Inj. Pump Body | |
| 07146C | H349003360 | Shim, Inj. Pump Body | |
| 07146C | H349003361 | Shim, Inj. Pump Body | |
| 07146C | H349003362 | Shim, Inj. Pump Body | |
| 07146C | H349003363 | Shim, Inj. Pump Body | |
| 07146D | H349003355 | Shim, Inj. Pump Body | |
| 07146D | H349003356 | Shim, Inj. Pump Body | |
| 07146D | H349003357 | Shim, Inj. Pump Body | |
| 07146D | H349003358 | Shim, Inj. Pump Body | |
| 07146D | H349003359 | Shim, Inj. Pump Body | |
| 07146D | H349003360 | Shim, Inj. Pump Body | |
| 07146D | H349003361 | Shim, Inj. Pump Body | |
| 07146D | H349003362 | Shim, Inj. Pump Body | |
| 07146D | H349003363 | Shim, Inj. Pump Body | |
| 07146E | H259001306 | Shim, Inj. Pump Body | |
| 07146E | H259001307 | Shim, Inj. Pump Body | |
| 07146E | H259001308 | Shim, Inj. Pump Body | |
| 07146E | H259001309 | Shim, Inj. Pump Body | |
| 07147C | H259001310 | Sleeve, Inj. Pump. B. | |
| 07149B | H259001311 | Spring, Inj. Pump B. | |
| 07149C | H259001312 | Spring, Inj. Pump B. | |
| 07151 | H259001313 | Stopper, Inj. P. Body | |
| 07154A | H259001314 | Tappet Ass'y, Inj. P.B. | |
| 07155B | H259001315 | Valve, Inj. Pump | |
| 07155C | H349003381 | Subap, Inj. Pump |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
