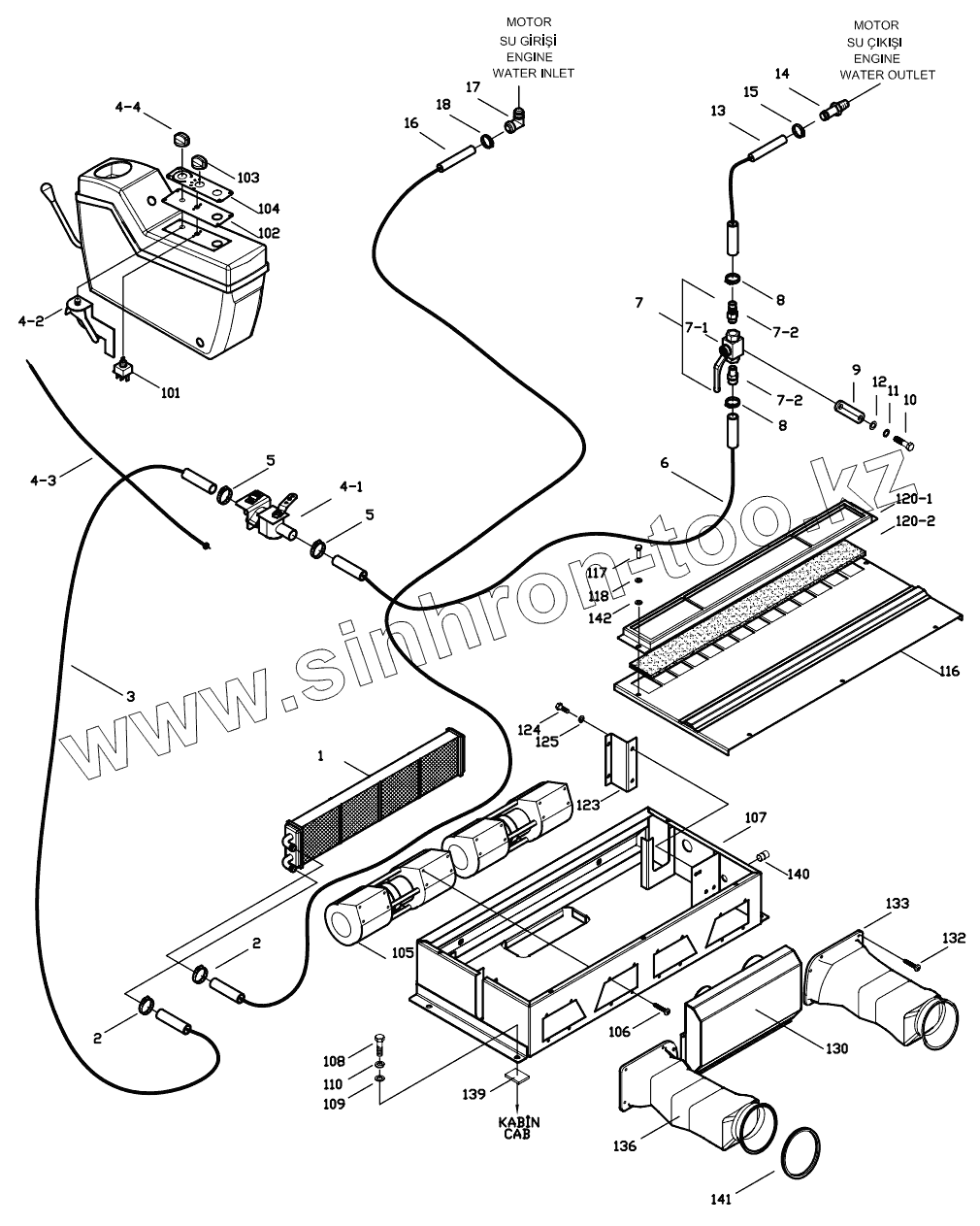

Каталог запасных частей к технике: Hidromek HMK 300LC. HEATER MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
4_1
4_2
4_3
4_4
5
5
6
7
7_1
7_2
7_2
8
8
9
10
11
12
13
14
15
16
17
18
101
102
102
103
104
104
105
106
107
108
109
110
116
117
118
120_1
120_2
123
124
125
130
132
133
136
139
140
141
142
Позиция на иллюстрации Заводской номер детали Название детали
1 Н342710200 Heater
2 N07/4016027 Clamp
3 Н252710400 Hose, Heater A3
4 Н342711301 Valve Ass'y
4_1 Н342711401 Valve
4_2 Н342711601 Switch
4_3 Н342711500 Wire
4_4 Н342711802 Handle
5 N07/4016027 Clamp
6 Н252710300 Hose, Heater A2
7 Н342735100 Valve Mounting
7_1 N14/0010650 Cock Valve
7_2 Н342711200 Connector
8 N07/4016027 Clamp
9 Н342735700 Bracket, Valve
10 N01/0380434 Bolt, Hex.
11 N03/1310010 Washer, Spr.
12 N03/0100017 Washer, Pln.
13 Н252710200 Hose, Heater A1
14 Н252710600 Connector
15 N07/4016027 Clamp
16 Н252710500 Hose, Heater B
17 Н252710100 Elbow
18 N07/4016027 Clamp
101 554/01000 Aircon Fan Switch
102 Н342720302 Plate
102 Н342720303 Plate
103 Н342711802 Handle
104 Н342723700 Decal
104 Н342723701 Decal
105 Н342720500 Fan
106 N04/1150338 Bolt
107 Н342720602 Aircon Heater Box
108 N01/0232114 Bolt, Hex.
109 N03/0100017 Washer, Pln.
110 N03/1310010 Washer, Spr.
116 Н342722503 Cover, W.A.
117 N01/0221514 Bolt, Hex.
118 N03/0100013 Washer, Pln.
120 Н342727301 Polen Filter Ass'y
120_1 Н342727401 Plate, Filter
120_2 Н342727501 Filter, Polen
123 Н342723501 Plate W.A., Evap.
124 N01/0221478 Bolt, Hex.
125 N03/1310008 Washer, Spr.
130 H342726001 Cover, W.A., Middle
132 N04/1150349 Bolt
133 H342726901 Cover, W.A., R/H
136 H342726501 Cover, W.A., L/H
139 H342727600 Rubber
140 810/40005 Rubber
141 98Z030010 Weather Strip
142 N03/0020004 Washer, Pln.
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
