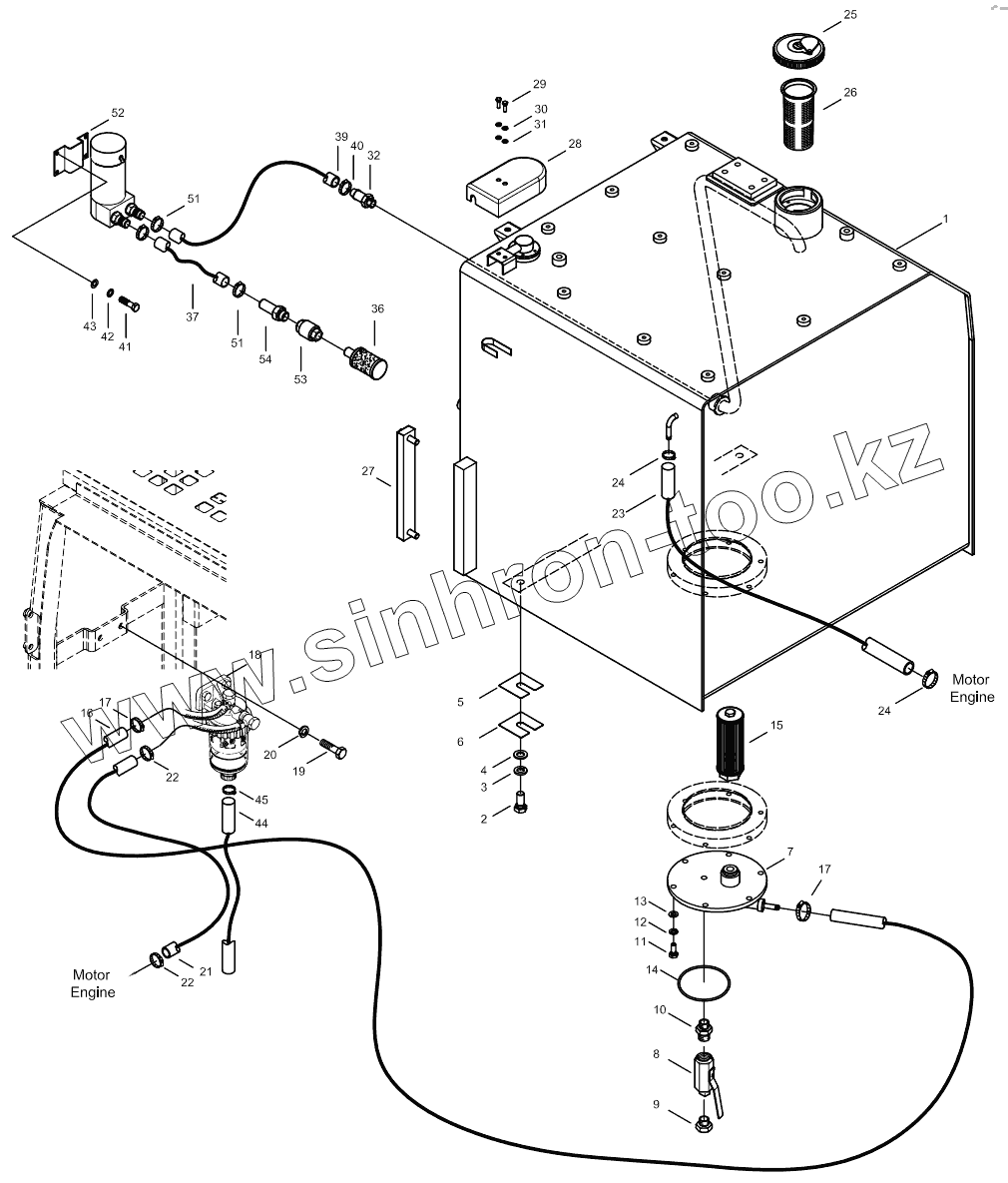

Каталог запасных частей к технике: Hidromek HMK 300LC. FUEL TANK MOUNTING AND FUEL LINE

Тип техники

Марка

Модель

Схема

1

1

1

1

2

3

4

5

6

7

7

8

8

9

9

10

11

11

12

13

14

14

15

16

17

17

18

19

20

21

22

22

23

24

24

25

26

27

28

29

30

31

32

36

37

39

40

41

42

43

44

45

51

51

52

53

54

Позиция на иллюстрации	Заводской номер детали		Название детали
1	H252500301		Tank W.A., Fuel
1	H252500300		Tank W.A., Fuel
1	H252500303		Tank W.A., Fuel
1	H252500302		Tank W.A., Fuel
2	N01/0233566		Bolt, Hex.
3	N03/1310014		Washer, Spr.
4	N03/0100027		Washer, Pln.
5	H343409500		Shim
6	H343410400		Shim
7	H342512600		Cover, Suction
7	H342512601		Cover, Suction
8	N14/0010600		Cock Valve Ass'y
8	N14/0020200		Cock Valve Ass'y
9	N16/X181004		Plug
9	N16/X181002		Plug
10	N16/K440106		Connector
11	N01/0232462		Bolt, Hex.
11	N01/0232438		Bolt, Hex.
12	N03/1310011		Washer, Spr.
13	N03/0100020		Washer, Pln.
14	N10/2016957		O-Ring
14	N10/2009936		O-RING
15	H342505500		Filter
16	H253401600		Hose, Tank-Filter
17	N07/4010016		Clamp
18	H342514700		Water Seperator
19	N01/0232462		Bolt, Hex.
20	N03/1310011		Washer, Spr.
21	H252501700		Hose, Filter-Engine
22	N07/4010016		Clamp
23	H252501800		Hose
24	N07/4010016		Clamp
25	H342503001		Cap, Fuel
26	H342503101		Filter
27	H342503201		Level Gauge
28	H342504000		Cover
29	N01/0221514		Bolt, Hex.
30	N03/1310008		Washer, Spr.
31	N03/0100013		Washer, Pln.
32	H342505300		Connector
36	H342506201		Filter
37	H342506300		Hose, Suction
39	H342506401		HOSE
40	N07/4025040		Clamp
41	N01/0221202		Bolt, Hex.
42	N03/1310007		Washer, Spr.
43	N03/0100011		Washer, Pln.
44	H252501900		Hose, Drain
45	N07/4010016		Clamp
51	N07/4016027		Clamp
52	Support		Support
53	Check Valve		Check Valve
54	Connector		Connector
