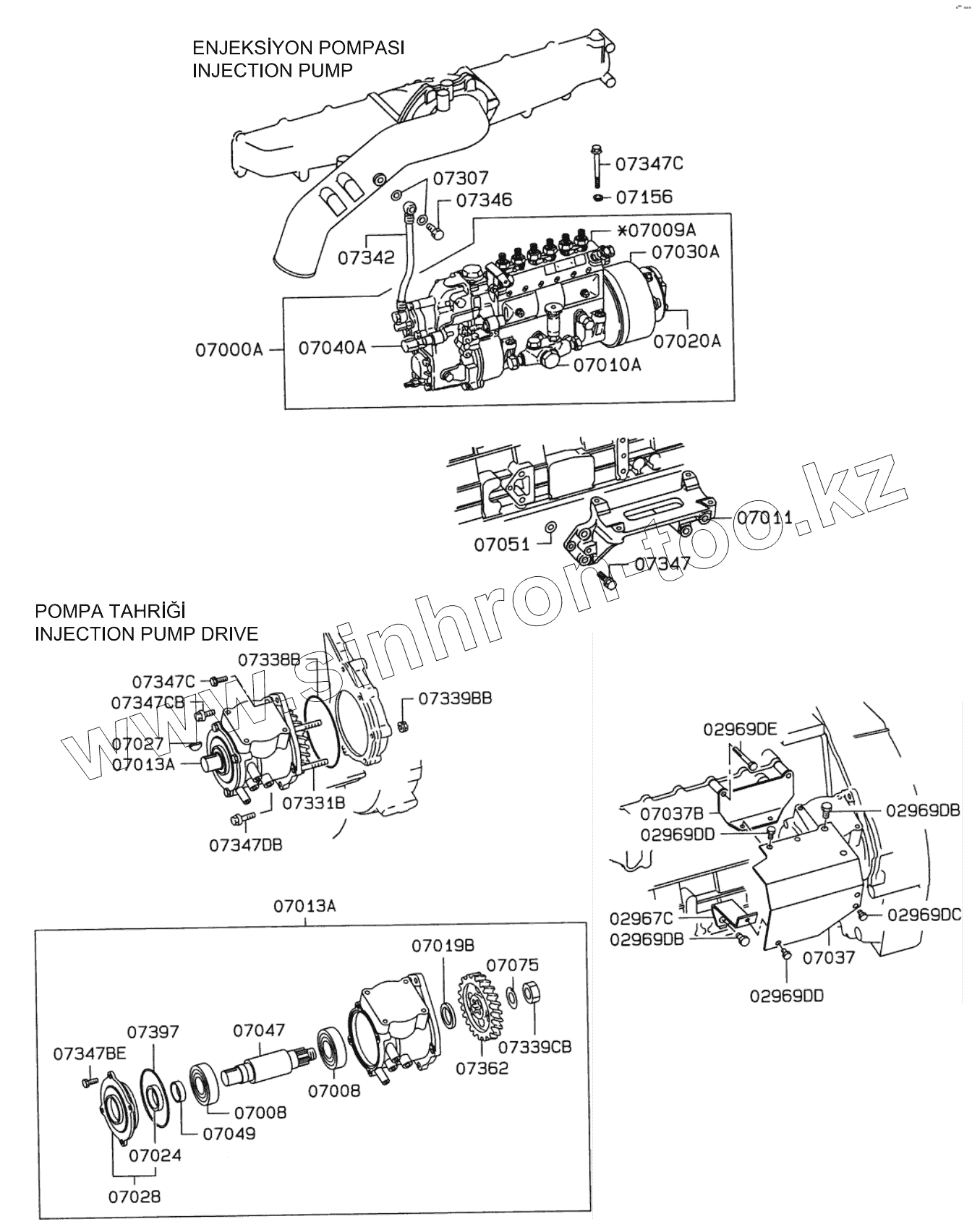

Каталог запасных частей к технике: Hidromek HMK 300LC. FUEL INJECTION PUMP GENERAL
02967C
02969DB
02969DB
02969DC
02969DD
02969DD
02969DE
07000A
07008
07008
07009A
07010A
07011
07013A
07013A
07019B
07020A
07024
07027
07028
07030A
07037
07037B
07040A
07047
07049
07051
07075
07156
07307
07331B
07338B
07339BB
07339CB
07342
07346
07347
07347
07347BE
07347C
07347C
07347C
07347C
07347C
07347C
07347CB
07347DB
07362
07397
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 02967C | H259001258 | Stay, Safety Cover | |
| 02969DB | H349003171 | Bolt | |
| 02969DC | H349003053 | Bolt | |
| 02969DD | H349003053 | Bolt | |
| 02969DE | H259001259 | Bolt, Eng. Safety Cov. | |
| 07000A | H259001260 | Pump Ass'y, Fuel Inj. | |
| 07008 | H259001261 | Bearing, Drive Gear | |
| 07009A | Body Ass'y, Inj. Pump | Body Ass'y, Inj. Pump | |
| 07010A | H259001262 | Pump Ass'y, Feed | |
| 07011 | H259001263 | Bracket, Inj. Pump | |
| 07013A | H259001264 | Case Ass'y, P. Drive | |
| 07019B | H259001265 | Coupling, P. Drive Case | |
| 07020A | H259001266 | Coupling, Inj. Pump | |
| 07024 | H259001267 | Oil Seal, Pmp Drive Shaft | |
| 07027 | H259001268 | Key, Pump Drive Shaft | |
| 07028 | H259001269 | Holder, Drive Case | |
| 07030A | H259001270 | Timer Ass'y, Inj. P. | |
| 07037 | H259001271 | Cover, Drive Shaft | |
| 07037B | H259001272 | Cover, Drive Shaft | |
| 07040A | H259001273 | Governor, Pump | |
| 07047 | H259001274 | Shaft, Drive Gear | |
| 07049 | H259001275 | Collar, Inj. Pump Drive | |
| 07051 | H259001276 | Shim, Inj. Pump Bracket | |
| 07075 | H259001277 | Washer, Drive Case | |
| 07156 | H259001278 | Washer, Pln, Pump Body | |
| 07307 | H349003215 | Gasket | |
| 07331B | H259001279 | Stud, Inj. Pump | |
| 07338B | H349003280 | O-Ring, Inj. Pump | |
| 07339BB | H349003281 | Nut | |
| 07339CB | H259001280 | Nut, Inj. Pump | |
| 07342 | H259001281 | Hose, Inj. Pump | |
| 07346 | H349003229 | Eyebolt | |
| 07347 | H259001282 | Bolt, Inj. Pump | |
| 07347 | H349003266 | Bolt | |
| 07347BE | H259001283 | Bolt, Inj. Pump | |
| 07347C | H259001284 | Bolt, Inj. Pump | |
| 07347C | H349003152 | Bolt, Tim. Ge Case | |
| 07347CB | H349003632 | Bolt, Thermostat | |
| 07347DB | H349003285 | Bolt, Inj. Pump | |
| 07362 | H259001285 | Gear, Inj. Pump Timer | |
| 07397 | H259001286 | O-Ring, Inj. Pump Drive |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
