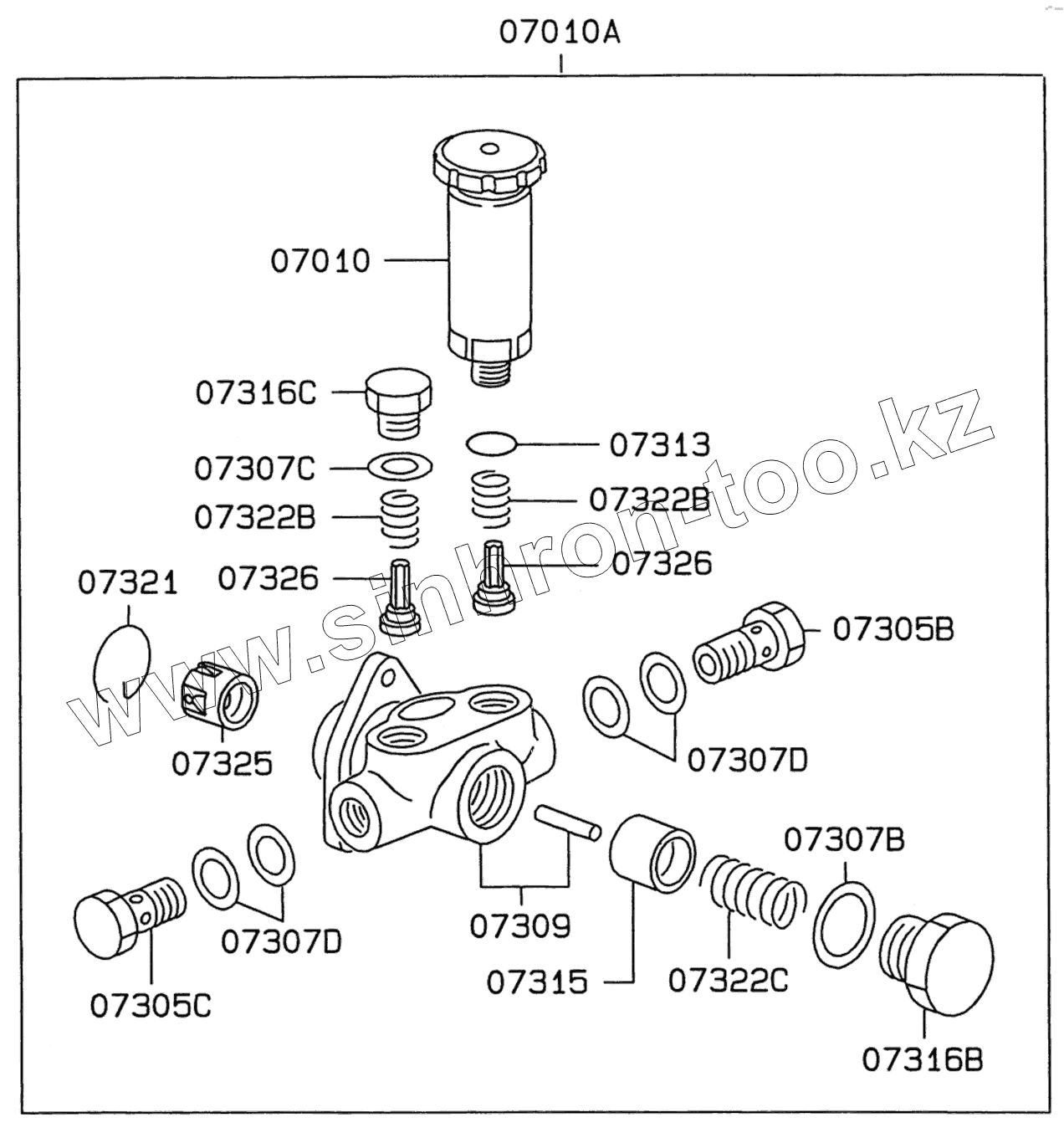

Каталог запасных частей к технике: Hidromek HMK 300LC. FUEL FEED PUMP
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
102B Maestro-ZF (2012)
102S MAESTRO (2012)
HMK 102B (2005)
HMK 102B ALPHA (2017)
HMK 102S (2005)
HMK 102S ALPHA (2017)
HMK 200W (2005)
HMK 220LC-2 (2006)
HMK 230LC3 (2019)
HMK 300LC (2019)
HMK 62SS
Схема
>
Не выбрано
BREAKER PIPING MOUNTING (1) (OP)
BREAKER PIPING MOUNTING (2) (OP)
BREAKER PIPING MOUNTING (2) (OP)
BREAKER MOUNTING (OP)
QUICK COUPLING ASSEMBLY (OP)
QUICK COUPLING MOUNTING (OP)
QUICK COUPLING CYLINDER (OP)
DOUBLE ACTING PIPING (1) (OP)
DOUBLE ACTING PIPING MOUNTING (2) (OP)
DOUBLE ACTING VALVE (OP)
BOOM SAFETY LOCK SYSTEM (OP)
ARM SAFETY LOCK SYSTEM (OP)
OVERLOAD WARNING SYSTEM (OP)
RIPPER (OP)
BEACON MOUNTING (OP)
REAR WORK LAMP MOUNTING (OP)
FRONT WORK LAMP MOUNTING (OP)
WINDOW GUARD (OP)
IMMOBILIZER (OP)
COWLING MOUNTING (1)
COWLING MOUNTING (2)
COWLING MOUNTING (3)
COWLING MOUNTING (4)
COWLING MOUNTING (5)
COWLING MOUNTING (6)
UPPER FRAME MOUNTING
BATTERY BOX MOUNTING
ANTI-SLIP WALKWAY
ENGINE MOUNTING
SHORT ENGINE ASSEMBLY
SERVICE CYLINDER HEAD ASSEMBLY
SERVICE CYLINDER BLOCK ASSEMBLY
LINER AND PISTON KIT
SERVICE CRANKSHAFT ASSEMBLY
ENGINE OVERHAUL GASKET KIT
ROCKER COVER AND BREATHER
CYLINDER HEAD
CYLINDER BLOCK
OIL PAN - FILLER - GAUGE
FLYWHEEL AND HOUSING
PISTON - CONNROD - CRANKSHAFT
CAMSHAFT - VALVE
TIMING GEAR
ATTACHING PARTS
OIL PUMP AND STRAINER
OIL FILTER
OIL COOLER
OIL LINE
FUEL LINE AND WATER SEPARATOR
FUEL FД°LTER AND HOSE
FUEL INJECTION PUMP GENERAL
INJECTION PUMP
GOVERNOR (1/2)
GOVERNOR (2/2)
AUTOMATIC TIMER
FUEL FEED PUMP
INJECTION PUMP COUPLING
INJECTION PIPE AND NOZZLE
FUEL RETURN HOSE
WATER PUMP AND FAN MOUNTING
WATER PIPE AND THERMOSTAT
INLET MANIFOLD
EXHAUST MANIFOLD
TURBOCHARGER
STARTER
ALTERNATOR AND REGULATOR
PLATE AND LABEL
CHASSIS HARNESS EQUIPMENT
COUPLING ASSEMBLY
AIR INTAKE MOUNTING
EXHAUST MOUNTING
COOLING SYSTEM
RADIATOR
FUEL TANK MOUNTING AND FUEL LINE
FUEL TANK MOUNTING AND FUEL LINE
ENGINE CONTROL MOUNTING
AIRCONDITION MOUNTING
AIRCONDITION MOUNTING
HEATER MOUNTING
AIRCONDITION UNIT
MAIN PIPING MOUNTING (1/3)
MAIN PIPING MOUNTING (2/3)
MAIN PIPING MOUNTING (3/3)
MAIN CONTROL VALVE (1)
MAIN CONTROL VALVE (2)
MAIN CONTROL VALVE (3)
MAIN CONTROL VALVE (4)
MAIN CONTROL VALVE (5)
MAIN CONTROL VALVE (6)
MAIN CONTROL VALVE (7)
MAIN CONTROL VALVE (8)
HYDRAULIC PUMP
GEAR PUMP
PROPORTIONAL REDUCING VALVE
PUMP REGULATOR
REDUCTION GEAR - SWING UNIT
SWING MOTOR - SWING UNIT
LOWER PIPING MOUNTING
REDUCTION GEAR - TRAVEL UNIT
MOTOR ASSEMBLY - TRAVEL UNIT
TURNING JOINT
PILOT PIPING MOUNTING 1 (1/2)
PILOT PIPING MOUNTING 1 (2/2)
PILOT PIPING MOUNTING 2 (1/2)
PILOT PIPING MOUNTING 2 (1/2)
PILOT PIPING MOUNTING 2 (2/2)
PILOT PIPING MOUNTING 2 (2/2)
PILOT PIPING MOUNTING 3
REMOTE CONTROL VALVE (R/L)
REMOTE CONTROL VALVE (R/L)
PEDAL
3-SOLENOID PRIORITY VALVE
3-SOLENOID VALVE
ATTACHMENT PIPING
BOOM CYLINDER (R/L)
BUCKET CYLINDER
ARM CYLINDER
HYDRAULIC TANK MOUNTING
UPPER DRAIN AND RETURN PIPING MOUNTING
UPPER DRAIN AND RETURN PIPING MOUNTING
LOWER FRAME MOUNTING
UPPER ROLLER
LOWER ROLLER
IDLER ASSEMBLY
ADJUSTER ASSEMBLY
TRACK CHAIN ASSEMBLY
BOOM MOUNTING
ARM MOUNTING
GENERAL PURPOSE BUCKET
WORKING ATTACHMENT CONTROL
LUBRICATION PIPING MOUNTING
LUBRICATION PIPING MOUNTING
CAB MOUNTING
CAB (1)
CAB (1)
CAB (2)
CAB (3)
CONSOLE BOX (R/H)
CONSOLE BOX (L/H)
CAB INTERIROR MOUNTING (1)
CAB INTERIROR MOUNTING (1)
CAB INTERIOR MOUNTING (2)
CAB INTERIOR MOUNTING (2)
OPERATOR SEAT
ELECTRIC (1)
ELECTRIC (1)
ELECTRIC (2)
ELECTRIC (3)
MAIN HARNESS
ENGINE HARNESS
CAB MAIN HARNESS
CAB MAIN HARNESS
07010
07010A
07305B
07305C
07307B
07307C
07307D
07307D
07309
07313
07315
07316B
07316C
07321
07322B
07322B
07322C
07325
07326
07326
Позиция на иллюстрации
Заводской номер детали
Название детали
07010
H259001382
Pump, Injection Pump Fuel Feed
07010A
H259001263
Bracket, Inj. Pump
07305B
H349003543
Eyebolt, Feed Pump
07305C
H349003296
Eyebolt
07307B
H259001384
Gasket, Feed Pump
07307C
H259001385
Gasket, Feed Pump
07307D
H349003302
Gasket
07309
H259001386
Housing, Feed Pump
07313
H349003548
O-Ring, Feed Pump
07315
H259001387
Piston, Feed Pump
07316B
H349003550
Plug, Feed Pump
07316C
H259001388
Plug, Feed Pump
07321
H259001389
Snap Ring, Fd. Pump
07322B
H349003552
Spring, Feed Pump
07322C
H349003553
Spring, Feed Pump
07325
H259001390
Tappet, Feed Pump
07326
H259001391
Valve, Feed Pump
