  5. DOUBLE ACTING PIPING MOUNTING (2) (OP)

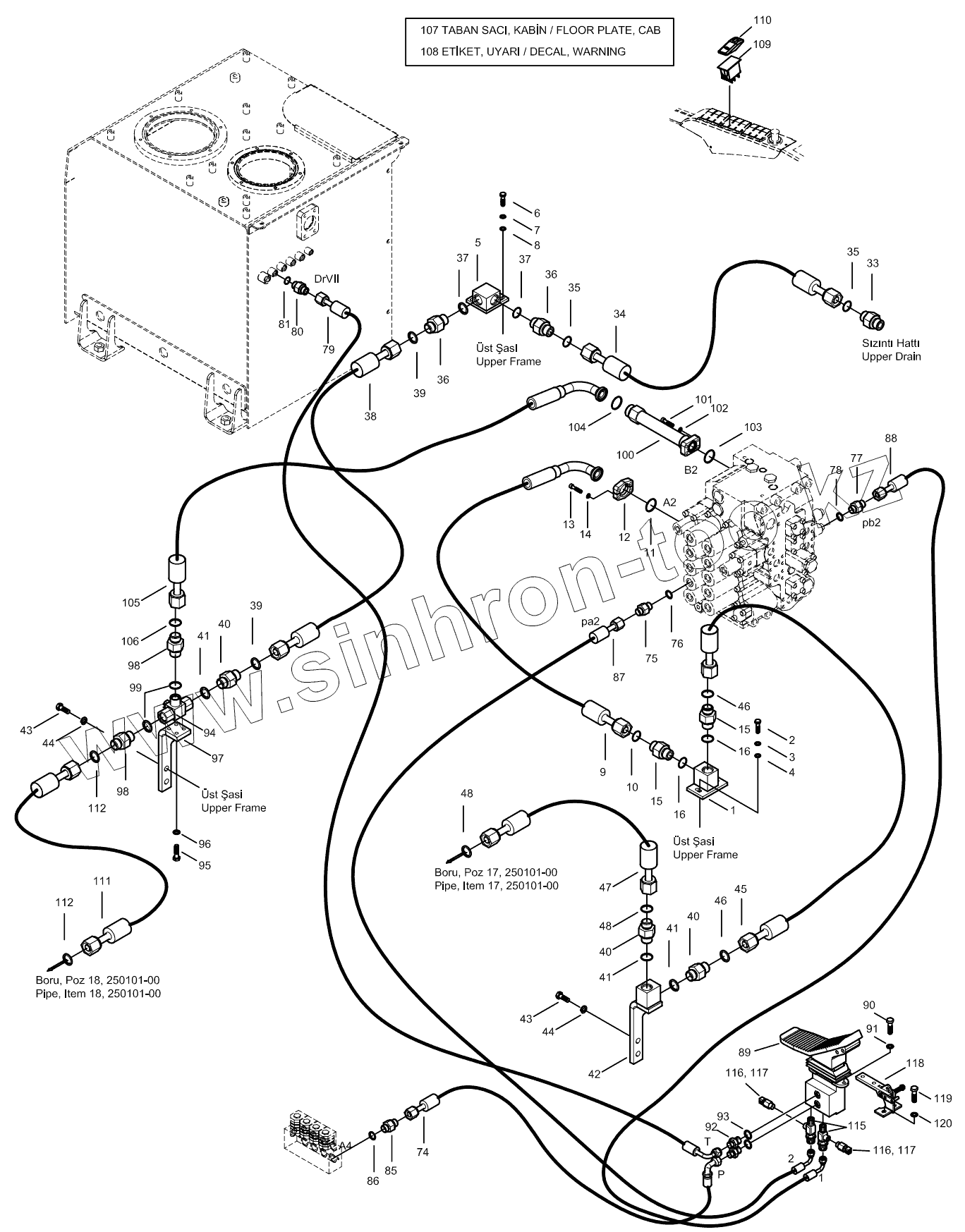

Каталог запасных частей к технике: Hidromek HMK 300LC. DOUBLE ACTING PIPING MOUNTING (2) (OP)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
33
34
35
35
36
36
37
37
38
39
39
40
40
40
41
41
41
42
43
43
44
44
45
46
46
47
48
48
74
75
76
77
78
79
80
81
85
86
87
88
89
90
91
92
93
94
95
96
97
98
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
112
115
116
116
117
117
118
119
120
Позиция на иллюстрации Заводской номер детали Название детали
1 H250100100 Elbow WA, Breaker P.
2 N01/0232498 Bolt, Hex.
3 N03/1310010 Washer, Spr.
4 N03/0020121 Washer, Pln.
5 H250100300 Elbow WA, Breaker P.
6 N01/0232498 Bolt, Hex.
7 N03/1310010 Washer, Spr.
8 N03/0020121 Washer, Pln.
9 H250100500 Hose
10 N10/2002317 O-Ring
11 N10/2003335 O-Ring
12 N16/J360104 Flange
13 N01/5890830 Bolt, Cyl. Hd.
14 N03/1360010 Washer, Spr.
15 N16/K130129 Connector
16 N10/2002835 O-Ring
33 N16/K230111 Connector
34 99Q075612 Hose
35 N10/2002317 O-Ring
36 N16/K130129 Connector
37 N10/2002835 O-Ring
38 99N075626 Hose
39 N10/2002317 O-Ring
40 N16/K130129 Connector
41 N10/2002835 O-Ring
42 H340103301 Elbow, W.A.
43 N01/0233566 Bolt, Hex.
44 N03/1310014 Washer, Spr.
45 99N075615 Hose
46 N10/2002317 O-Ring
47 99Q175627 Hose Ass'y
48 N10/2002317 O-Ring
74 97Q092252 Hose
75 N16/K114342 Connector
76 N10/2001322 O-Ring
77 N16/K114342 Connector
78 N10/2001322 O-Ring
79 97U092290 Hose
80 N16/K114342 Connector
81 N10/2001322 O-Ring
85 N16/K114356 Connector
86 N10/2001024 O-Ring
87 97U092274 Hose
88 97S092274 Hose
89 H340180100 Double Acting V/V
90 N01/0380566 Bolt, Hex.
91 N03/1310011 Washer, Spr.
92 N16/K114356 Connector
93 N10/2001024 O-Ring
94 H340180200 3 Way Ball Valve
95 N01/0232162 Bolt, Hex.
96 N03/1310010 Washer, Spr.
97 H250180100 Bracket
98 N16/K130130 Connector
99 N10/2002317 O-Ring
100 H340180601 Pipe WA
101 N01/5890842 Bolt, Cylinder Head
102 N03/1360010 Washer, Spr.
103 N10/2003335 O-Ring
104 N10/2002317 O-Ring
105 99T075626 Hose
106 N10/2002317 O-Ring
107 H340180801 Floor Plate
108 H347016100 Wning Decal
109 520/21020 Switch, Aircon.-Working Lamp
110 520/31200 Button
111 99N175626 Hose
112 N10/2002317 O-Ring
113 H343206100 Connector
114 N10/2001024 O-Ring
115 H253208100 Tee
116 H233511000 Switch, Pressure
117 H233512000 Cover
118 H250186000 LOCK
119 N01/5890818 Bolt, Cyl. Hd.
120 N03/1310010 Washer, Spr.
