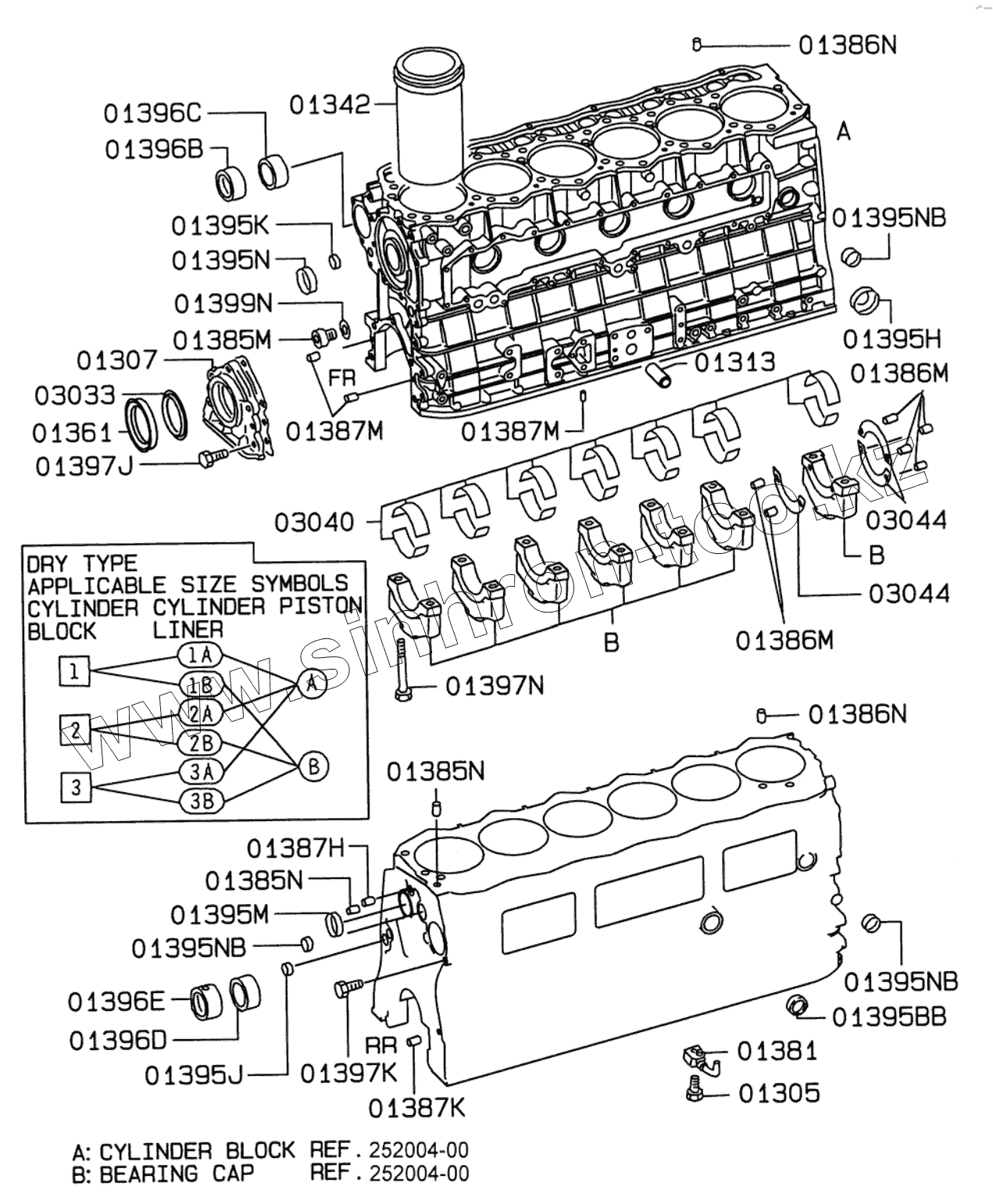

Каталог запасных частей к технике: Hidromek HMK 300LC. CYLINDER BLOCK
01305
01307
01313
01342
01342
01342
01342
01342
01342
01361
01381
01385М
01385N
01385N
01386М
01386М
01386N
01386N
01387Н
01387К
01387М
01387М
01395ВВ
01395Н
01395J
01395K
01395M
01395N
01395NB
01395NB
01395NB
01396В
01396C
01396D
01396E
01397J
01397K
01397N
01399N
03033
03040
03040
03040
03040
03040
03044
03044
03044
03044
03044
03044
03044
03044
03044
03044
03044
03044
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01305 | H259001026 | Check V/V, Piston Lub | |
| 01307 | H259001027 | Cover, Cyl. Block | |
| 01313 | H259001028 | Director, Block Oil | |
| 01342 | H259001029 | Liner, Cylinder | |
| 01342 | H259001030 | Liner, Cylinder | |
| 01342 | H259001031 | Liner, Cylinder | |
| 01342 | H259001032 | Liner, Cylinder | |
| 01342 | H259001033 | Liner, Cylinder | |
| 01342 | H259001034 | Liner, Cylinder | |
| 01361 | H259001035 | Oil Seal, FR Cover | |
| 01381 | H259001036 | Oil Jet, Cyl. Block | |
| 01385М | H349003167 | Plug, Cyl. Block | |
| 01385N | H259001037 | Plug, Cyl. Block | |
| 01386М | H349003039 | Sprin Pin, Cyl. Block | |
| 01386N | H259001038 | Blok Sprin Pin, Cyl. Block | |
| 01387Н | H349003041 | Pin, Cyl. Block | |
| 01387К | H259001039 | Pin, Cyl. Block | |
| 01387М | H259001040 | Pin, Cyl. Block | |
| 01395ВВ | H259001041 | Cap, Cyl. Block | |
| 01395Н | H259001042 | Cap, Cyl. Block | |
| 01395J | H349003039 | Sprin Pin, Cyl. Block | |
| 01395K | H259001043 | Cap, Cyl. Block | |
| 01395M | H259001044 | Cap, Cyl. Block | |
| 01395N | H259001045 | Cap, Cyl. Block | |
| 01395NB | H259001046 | Cap, Cyl. Block | |
| 01396В | H259001047 | Bushing, Cyl. Block | |
| 01396C | H259001048 | Bushing, Cyl. Block | |
| 01396D | H259001049 | Bushing, Cyl. Block | |
| 01396E | H259001050 | Bushing, Cyl. Block | |
| 01397J | H259001051 | Bolt, Cylinder Block | |
| 01397K | H349003171 | Bolt | |
| 01397N | H259001052 | Bolt, Cylinder Block | |
| 01399N | H349003169 | Gasket, Cyl. Block | |
| 03033 | H259001053 | Oil Slinger, Crnks. RR | |
| 03040 | H259001054 | Bearing Set, Crnks. | |
| 03040 | H259001055 | Bearing Set, Crnks. | |
| 03040 | H259001056 | Bearing Set, Crnks. | |
| 03040 | H259001057 | Bearing Set, Crnks. | |
| 03040 | H259001058 | Bearing Set, Crnks. | |
| 03044 | H259001059 | Plate, Crnks. Thrust | |
| 03044 | H259001060 | Plate, Crnks. Thrust | |
| 03044 | H259001061 | Plate, Crnks. Thrust | |
| 03044 | H259001062 | Plate, Crnks. Thrust |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
