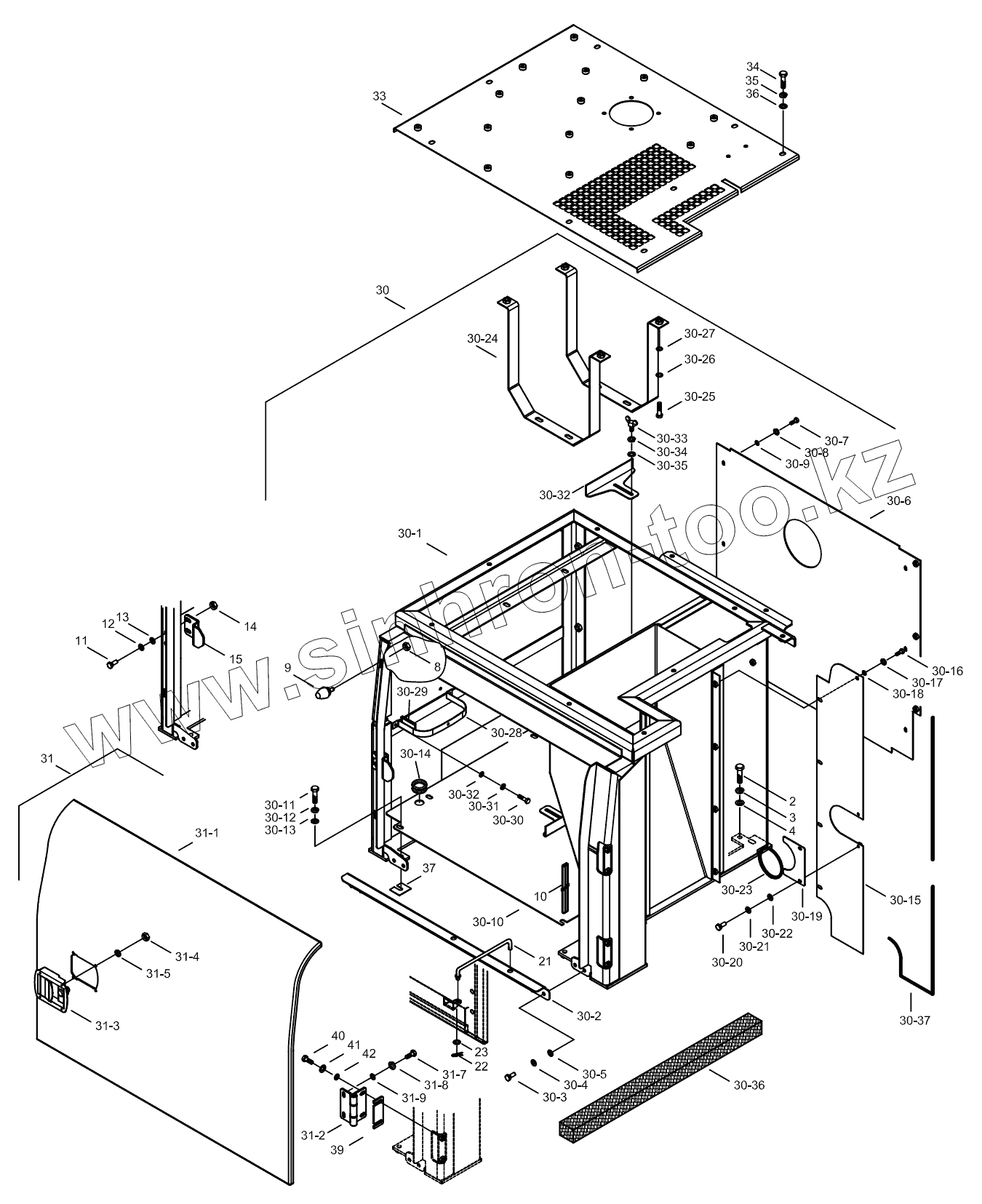

Каталог запасных частей к технике: Hidromek HMK 300LC. COWLING MOUNTING (4)
2
3
4
8
9
10
11
12
13
14
15
15
15
21
21
22
23
30
30
30
30
30_1
30_1
30_1
30_1
30_2
30_2
30_3
30_4
30_5
30_6
30_7
30_8
30_9
30_10
30_10
30_11
30_12
30_13
30_14
30_15
30_16
30_17
30_18
30_19
30_20
30_21
30_22
30_23
30_24
30_25
30-26
30_27
30_28
30_29
30_30
30_31
30_32
30_32
30_33
30_34
30_35
30_36
30_37
31
31
31
31_1
31_1
31_1
31_2
31_2
31_3
31_3
31_4
31_5
31_7
31_8
31_9
33
33
34
35
36
37
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | N01/0232858 | Bolt, Hex. | |
| 3 | N03/1310012 | Washer, Spr. | |
| 4 | N03/0100023 | Washer, Pln. | |
| 8 | N02/3570206 | Nut, Hex. | |
| 9 | H341102900 | Stopper | |
| 10 | 98Z020010 | Wheather Strip | |
| 11 | N01/0232462 | Bolt, Hex. | |
| 12 | N03/1310011 | Washer, Spr. | |
| 13 | N03/0100020 | Washer, Pln. | |
| 14 | N02/3570206 | Nut, Hex. | |
| 15 | H341103101 | Plate, Lock | |
| 15 | H341103102 | Plate, Lock | |
| 15 | H341103103 | Plate, Lock | |
| 21 | H341105300 | B, Lock | |
| 21 | H341105301 | Bar, Lock | |
| 22 | N06/1002015 | Pin, Split | |
| 23 | N03/0100020 | Washer, Pln. | |
| 30 | H251108000 | Support Ass'y, Filter | |
| 30 | H251108001 | Support Ass'y, Filter | |
| 30 | H251108002 | Support Ass'y, Filter | |
| 30 | H251108003 | Support Ass'y, Filter | |
| 30_1 | H251108100 | Support WA | |
| 30_1 | H251108101 | Support WA | |
| 30_1 | H251108102 | Support WA | |
| 30_1 | H251108103 | Support WA | |
| 30_2 | H251110900 | Support | |
| 30_2 | H251111001 | Support | |
| 30_3 | N01/0232114 | Bolt, Hex. | |
| 30_4 | N03/1310010 | Washer, Spr. | |
| 30_5 | N03/0100016 | Washer, Pln. | |
| 30_6 | H251111100 | Cover, Filter | |
| 30_7 | N01/0232138 | Bolt, Hex. | |
| 30_8 | N03/1310010 | Washer, Spr. | |
| 30_9 | N03/0100016 | Washer, Pln. | |
| 30_10 | H251111300 | Cover, Tool Box | |
| 30_10 | H251111301 | Cover, Tool Box | |
| 30_11 | N01/0232486 | Bolt, Hex. | |
| 30_12 | N03/1310011 | Washer, Spr. | |
| 30_13 | N03/0100021 | Washer, Pln. | |
| 30_14 | 98Y010250 | Gromet | |
| 30_15 | H251111500 | Support, Sponge | |
| 30_16 | N01/0232114 | Bolt, Hex. | |
| 30_17 | N03/1310010 | Washer, Spr. | |
| 30_18 | N03/0100016 | Washer, Pln. | |
| 30_19 | Н251111700 | Support | |
| 30_20 | N01/0231514 | Bolt, Hex. | |
| 30_21 | N03/1310008 | Washer, Spr. | |
| 30_22 | N03/0100013 | Washer, Pln. | |
| 30_23 | 98Y011000 | Gromet | |
| 30_24 | Н251111800 | Holder WA, Filter | |
| 30_25 | N01/0232462 | Bolt, Hex. | |
| 30-26 | N03/1310011 | Washer, Spr. | |
| 30_27 | N03/0100021 | Washer, Pln. | |
| 30_28 | Н343410000 | Holder, Washer Tank | |
| 30_29 | Н343410100 | Rubber | |
| 30_30 | N01/0231478 | Bolt, Hex. | |
| 30_31 | N03/0100013 | Washer, Pln. | |
| 30_32 | Н341137300 | Holder Bracket, Tool | |
| 30_33 | N04/2180374 | Wing Screw | |
| 30_34 | N03/1310010 | Washer, Spr. | |
| 30_35 | N03/0100016 | Washer, Pln. | |
| 30_36 | Н251116900 | Sponge | |
| 30_37 | 98Z020010 | Wheather Strip | |
| 31 | Н251113500 | Door Ass'y | |
| 31 | Н251113501 | Door Ass'y | |
| 31 | Н251113502 | Door Ass'y | |
| 31_1 | Н251113600 | Door WA | |
| 31_1 | Н251113601 | Door WA | |
| 31_1 | Н251113602 | Door WA | |
| 31_2 | Н341128100 | Hinge | |
| 31_2 | Н341128101 | Hinge | |
| 31_3 | Н343407601 | Lock Ass'y | |
| 31_3 | Н343407602 | Lock Ass'y | |
| 31_4 | N02/5880026 | Nut, Hex. | |
| 31_5 | N03/0100011 | Washer, Pln. | |
| 31_7 | N01/0232438 | Bolt, Hex. | |
| 31_8 | N03/0020121 | Washer, Pln. | |
| 31_9 | N03/1310011 | Washer, Spr. | |
| 33 | Н251117500 | Cover, Filter | |
| 33 | Н251117501 | Cover, Filter | |
| 34 | N01/0232486 | Bolt, Hex. | |
| 35 | N03/1310011 | Washer, Spr. | |
| 36 | N03/0100020 | Washer, Pln. | |
| 37 | Н341114300 | Shim | |
| 39 | Н341114202 | Shim, Adjustment | |
| 40 | N01/0232438 | Bolt, Hex. | |
| 41 | N03/1310011 | Washer, Spr. | |
| 42 | N03/0100020 | Washer, Pln. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
