  5. COWLING MOUNTING (3)

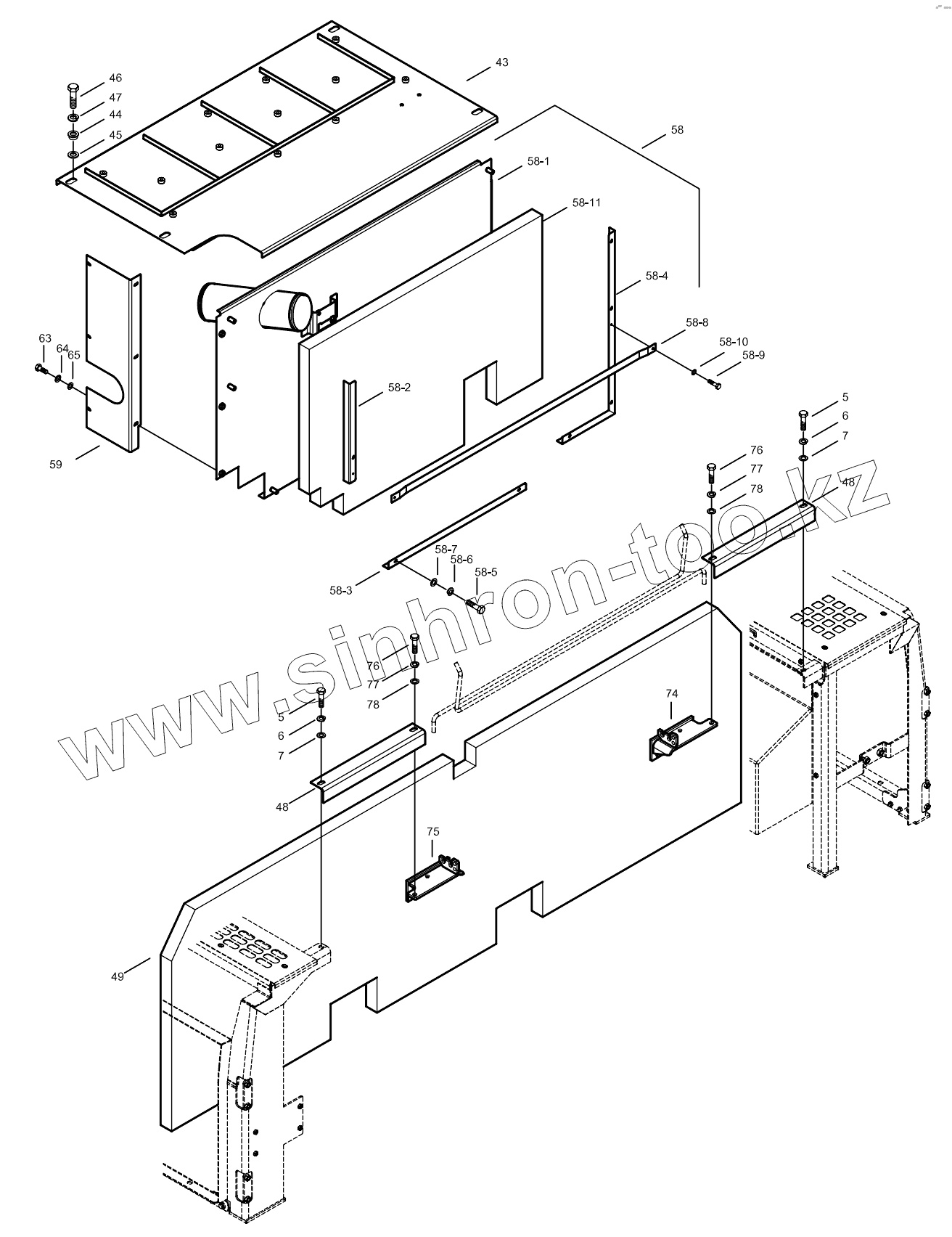

Каталог запасных частей к технике: Hidromek HMK 300LC. COWLING MOUNTING (3)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
5
5
6
6
7
7
43
44
45
46
47
48
48
49
58
58
58
58_1
58_1
58_1
58_2
58_2
58_3
58_3
58_4
58_4
58_5
58_6
58_7
58_8
58_9
58_10 N03/0100011
58_11 H251116400
H251116401
59
59
59
63
64
65
74
75
76
76
77
77
78
78
Позиция на иллюстрации Заводской номер детали Название детали
5 N01/0232858 Bolt, Hex.
6 N03/1310012 Washer, Spr.
7 N03/0100023 Washer, Pln.
43 H251117000 Cover, MCV
44 H341126600 Bush, Conn.
45 H341126700 Washer, Pln.
46 N01/0380566 Bolt, Hex.
47 N03/1310011 Washer, Spr.
48 H251118500 Angle Bracket
49 H341125001 Sponge
58 H251115500 Cover Ass'y
58 H251115501 Cover Ass'y
58 H251115503 Cover Ass'y
58_1 H251115600 Cover WA
58_1 H251115601 Cover WA
58_1 H251115603 Cover WA
58_2 H251115900 Bracket, Sponge
58_2 H251115901 Bracket, Sponge
58_3 H251116000 Bracket, Sponge
58_3 H251116001 Bracket, Sponge
58_4 H251116100 Bracket, Sponge
58_4 H251116101 Bracket, Sponge
58_5 N01/0221514 Bolt, Hex.
58_6 N03/0020004 Washer, Pln.
58_7 N03/0100013 Washer, Pln.
58_8 H251116300 Bracket, Sponge
58_9 N04/1150349 Bolt
58_10 N03/0100011 58_10 N03/0100011 Washer, Pln.
58_11 H251116400 58_11 H251116400 Sponge
H251116401 H251116401 Sponge
59 H251116800 Support, Sponge
59 H251116801 Support, Sponge
59 H251116802 Support, Sponge
63 N01/0232114 Bolt, Hex.
64 N03/1310010 Washer, Spr.
65 N03/0100016 Washer, Pln.
74 H251125100 Support WA, L
75 H251125600 Support WA, R
76 N01/0232486 Bolt, Hex.
77 N03/1310011 Washer, Spr.
78 N03/0020121 Washer, Pln.
