Каталог запасных частей к технике: Hidromek HMK 300LC. COWLING MOUNTING (2)
2
3
4
8
9
10
11
12
13
14
15
15
15
21
21
22
23
24
24
24
24_1
24_1
24_1
24_2
24_2
24_3
24_4
24_5
25
25
25
25_1
25_1
25_1
25_2
25_2
25_2
25_3
25_3
25_4
25_5
25_6
25_7
25_7
25_8
25_9
25_11
25_11
25_11
25_12
25_12
25_14
26
26
27
28
29
37
39
40
41
42
82
83
84
85
86
87
88
89

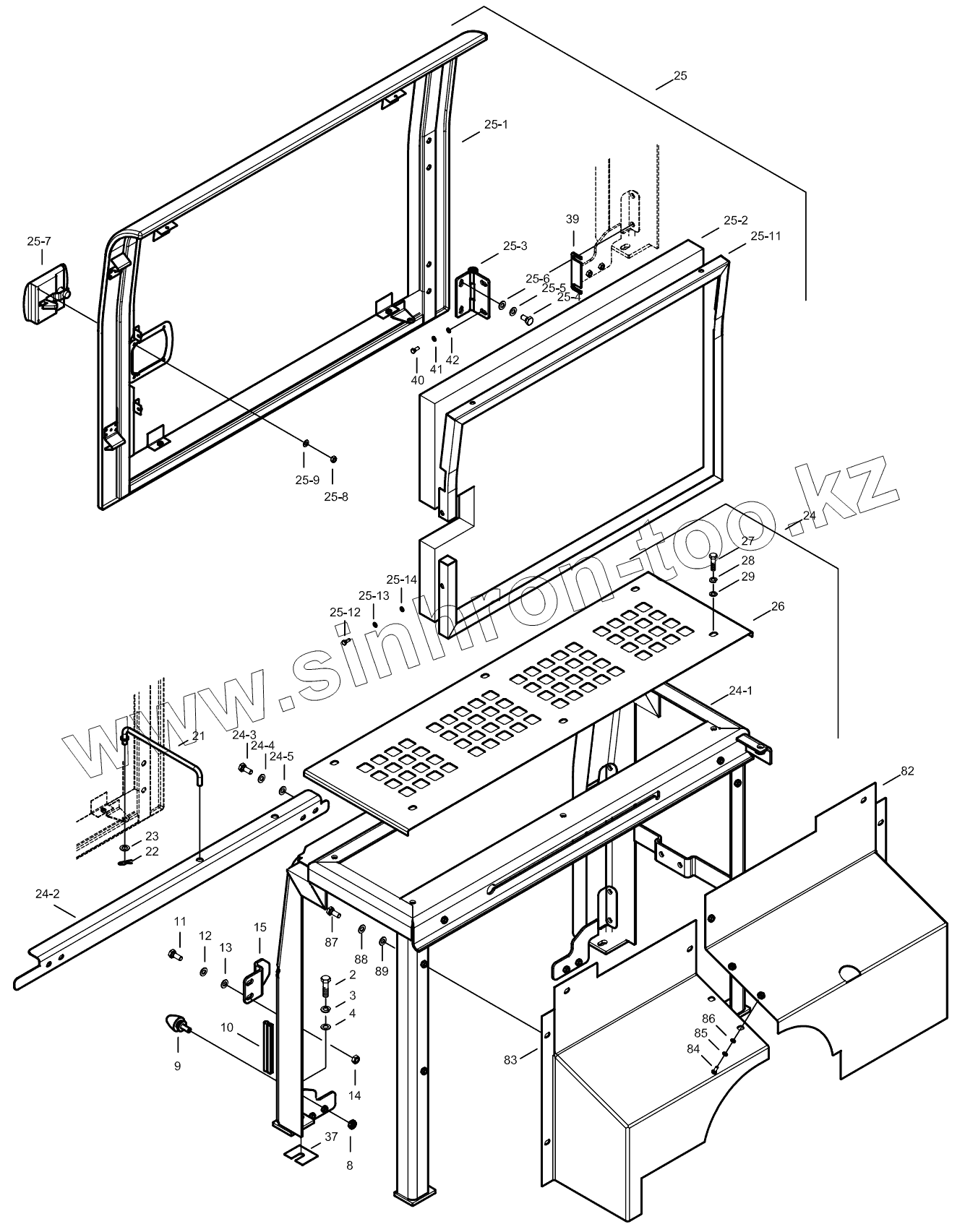

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | N01/0232858 | Bolt, Hex. | |
| 3 | N03/1310012 | Washer, Spr. | |
| 4 | N03/0100023 | Washer, Pln. | |
| 8 | N02/3570206 | Nut, Hex. | |
| 9 | H341102900 | Stopper | |
| 10 | 98Z020010 | Wheather Strip | |
| 11 | N01/0232462 | Bolt, Hex. | |
| 12 | N03/1310011 | Washer, Spr. | |
| 13 | N03/0100020 | Washer, Pln. | |
| 14 | N02/3570206 | Nut, Hex. | |
| 15 | H341103101 | Plate, Lock | |
| 15 | H341103102 | Plate, Lock | |
| 15 | H341103103 | Plate, Lock | |
| 21 | H341105300 | B, Lock | |
| 21 | H341105301 | Bar, Lock | |
| 22 | N06/1002015 | Pin, Split | |
| 23 | N03/0100020 | Washer, Pln. | |
| 24 | H251104000 | Support Ass'y, Pump | |
| 24 | H251104001 | Support Ass'y, Pump | |
| 24 | H251104002 | Support Ass'y, Pump | |
| 24_1 | H251104100 | Support WA | |
| 24_1 | H251104101 | Support WA | |
| 24_1 | H251104102 | Support WA | |
| 24_2 | H251105300 | Support | |
| 24_2 | H251105401 | Support | |
| 24_3 | N01/0232114 | Bolt, Hex. | |
| 24_4 | N03/1310010 | Washer, Spr. | |
| 24_5 | N03/0100016 | Washer, Pln. | |
| 25 | H251106500 | Door Ass'y | |
| 25 | H251106502 | Door Ass'y | |
| 25 | H251106503 | Door Ass'y | |
| 25_1 | H251106600 | Door WA | |
| 25_1 | H251106602 | Door WA | |
| 25_1 | H251106603 | Door WA | |
| 25_2 | H251107600 | Sponge | |
| 25_2 | H251107601 | Sponge | |
| 25_2 | H251107602 | Sponge | |
| 25_3 | H341128100 | Hinge | |
| 25_3 | H341128101 | Hinge | |
| 25_4 | N01/0232438 | Bolt, Hex. | |
| 25_5 | N03/0020121 | Washer, Pln. | |
| 25_6 | N03/1310011 | Washer, Spr. | |
| 25_7 | H343407601 | Lock Ass'y | |
| 25_7 | H343407602 | Lock Ass'y | |
| 25_8 | N02/5880026 | Nut, Hex. | |
| 25_9 | N03/0100011 | Washer, Pln. | |
| 25_11 | Н251107000 | Sash, Sponge | |
| 25_11 | Н251107002 | Sash, Sponge | |
| 25_11 | Н251107003 | Sash, Sponge | |
| 25_12 | N01/0221478 | Bolt, Hex. | |
| 25_12 | N03/1310008 | Washer, Spr. | |
| 25_14 | N03/0020004 | Washer, Pln. | |
| 26 | Н251118100 | Cover, Pump | |
| 26 | Н251118101 | Cover, Pump | |
| 27 | N01/0232486 | Bolt, Hex. | |
| 28 | N03/1310011 | Washer, Spr. | |
| 29 | N03/0100020 | Washer, Pln. | |
| 37 | Н341114300 | Shim | |
| 39 | Н341114202 | Shim, Adjustment | |
| 40 | N01/0232438 | Bolt, Hex. | |
| 41 | N03/1310011 | Washer, Spr. | |
| 42 | N03/0100020 | Washer, Pln. | |
| 82 | Н251118900 | Cover, Pump, Front | |
| 83 | Н251119100 | Cover, Pump, Rear | |
| 84 | N01/0232114 | Bolt, Hex. | |
| 85 | N03/1310010 | Washer, Spr. | |
| 86 | N03/0020111 | Washer, Pln. | |
| 87 | N01/0232462 | Bolt, Hex. | |
| 88 | N03/1310011 | Washer, Spr. | |
| 89 | N03/0020121 | Washer, Pln. |
