Каталог запасных частей к технике: Hidromek HMK 300LC. COWLING MOUNTING (1)
1
1
1
1_1
1_1
1_1
1_2
1_2
1_3
1_4
1_5
2
3
4
8
9
10
11
12
13
14
15
15
15
16
16
16
16_1
16_1
16_1
16_2
16_2
16_2
16_3
16_3
16_4
16_5
16_6
16_7
16_7
16_8
16_9
16_11 H251103000
H251103002
H251103003
16_12 N01/0221478
16_13 N03/1310008
16_14 N03/0100013
17
H251118001
18
19
20
21
H341105301
22
23
37
39
40
41
42
70
71
72
73

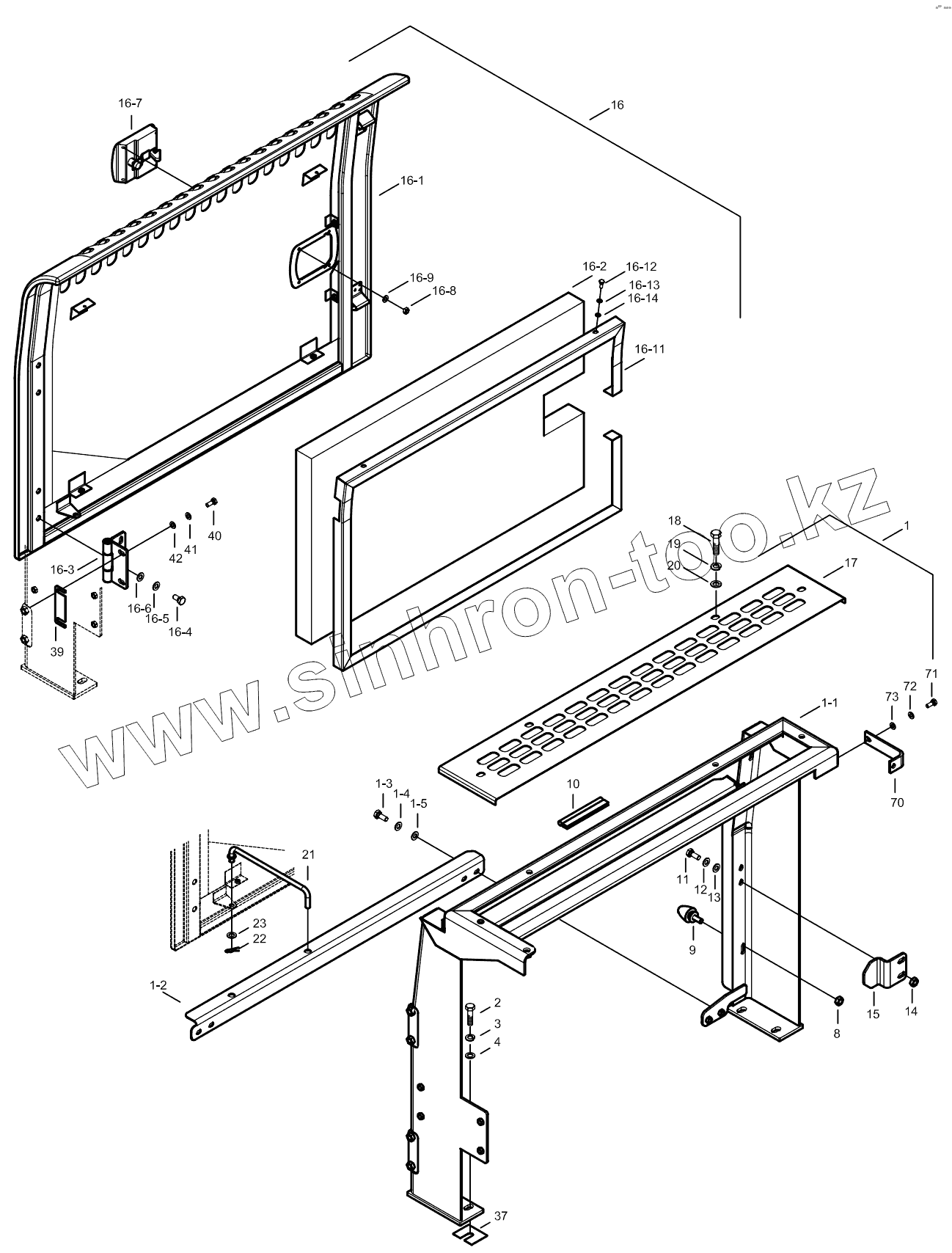

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H251100200 | Support Ass'y, Rad. | |
| 1 | H251100201 | Support Ass'y, Rad. | |
| 1 | H251100202 | Support Ass'y, Rad. | |
| 1_1 | H251100300 | Support WA | |
| 1_1 | H251100301 | Support WA | |
| 1_1 | H251100302 | Support WA | |
| 1_2 | H251101500 | Support | |
| 1_2 | H251101601 | Support | |
| 1_3 | N01/0232114 | Bolt, Hex. | |
| 1_4 | N03/1310010 | Washer, Spr. | |
| 1_5 | N03/0100016 | Washer, Pln. | |
| 2 | N01/0232858 | Bolt, Hex. | |
| 3 | N03/1310012 | Washer, Spr. | |
| 4 | N03/0100023 | Washer, Pln. | |
| 8 | N02/3570206 | Nut, Hex. | |
| 9 | H341102900 | Stopper | |
| 10 | 98Z020010 | Wheather Strip | |
| 11 | N01/0232462 | Bolt, Hex. | |
| 12 | N03/1310011 | Washer, Spr. | |
| 13 | N03/0100020 | Washer, Pln. | |
| 14 | N02/3570206 | Nut, Hex. | |
| 15 | H341103101 | Plate, Lock | |
| 15 | H341103102 | Plate, Lock | |
| 15 | H341103103 | Plate, Lock | |
| 16 | H251102500 | Door Ass'y | |
| 16 | H251102502 | Door Ass'y | |
| 16 | H251102503 | Door Ass'y | |
| 16_1 | H251102600 | Door WA | |
| 16_1 | H251102602 | Door WA | |
| 16_1 | H251102603 | Door WA | |
| 16_2 | H251103800 | Sponge | |
| 16_2 | H251103801 | Sponge | |
| 16_2 | H251103802 | Sponge | |
| 16_3 | H341128100 | Hinge | |
| 16_3 | H341128101 | Hinge | |
| 16_4 | N01/0232438 | Bolt, Hex. | |
| 16_5 | N03/0020121 | Washer, Pln. | |
| 16_6 | N03/1310011 | Washer, Spr. | |
| 16_7 | H343407601 | Lock Ass'y | |
| 16_7 | H343407602 | Lock Ass'y | |
| 16_8 | N02/5880026 | Nut, Hex. | |
| 16_9 | N03/0100011 | Washer, Pln. | |
| 16_11 H251103000 | 16_11 H251103000 | Sash, Sponge | |
| H251103002 | H251103002 | Sash, Sponge | |
| H251103003 | H251103003 | Sash, Sponge | |
| 16_12 N01/0221478 | 16_12 N01/0221478 | Bolt, Hex. | |
| 16_13 N03/1310008 | 16_13 N03/1310008 | Washer, Spr. | |
| 16_14 N03/0100013 | 16_14 N03/0100013 | Washer, Pln. | |
| 17 | H251118000 | Cover, Radiator | |
| H251118001 | H251118001 | Cover, Radiator | |
| 18 | N01/0232486 | Bolt, Hex. | |
| 19 | N03/1310011 | Washer, Spr. | |
| 20 | N03/0100020 | Washer, Pln. | |
| 21 | H341105300 | B, Lock | |
| H341105301 | H341105301 | Bar, Lock | |
| 22 | N06/1002015 | Pin, Split | |
| 23 | N03/0100020 | Washer, Pln. | |
| 37 | H341114300 | Shim | |
| 39 | H341114202 | Shim | |
| 40 | N01/0232438 | Bolt, Hex. | |
| 41 | N03/1310011 | Washer, Spr. | |
| 42 | N03/0100020 | Washer, Pln. | |
| 70 | H251118800 | Bracket, Support | |
| 71 | N01/0232486 | Bolt, Hex. | |
| 72 | N03/1310011 | Washer, Spr. | |
| 73 | N03/0100020 | Washer, Pln. |
