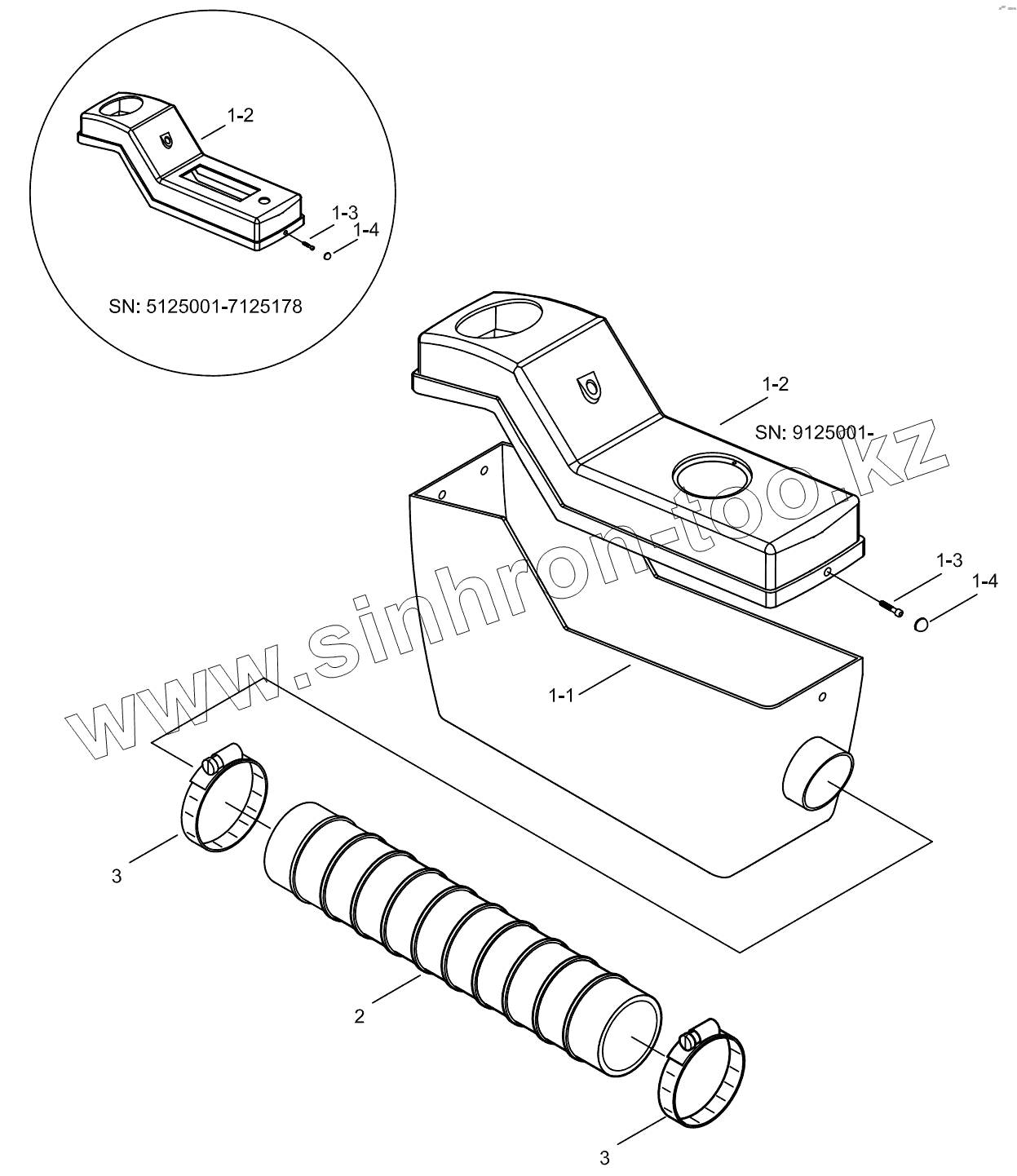

Позиция на иллюстрации
Заводской номер детали
Название детали
1
H256103800
Console Box Ass'y,R/H
1
H256103802
Console Box Ass'y,R/H
1_1
H346103902
Console, Bottom, R/H
1_1
H346103903
Console, Bottom, R/H
1_1
H346103904
Console, Bottom, R/H
1_2
H256104000
Console, Up, R/H
1_2
H256104001
Console, Up, R/H
1_2
H256104002
Console, Up, R/H
1_3
N01/5870352
Bolt, Hex.
1_3
N04/1671862
BOLT, M5x15
1_4
F99/15092
Cover
2
H346106600
Hose, Console
3
N07/4060080
Clamp
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
