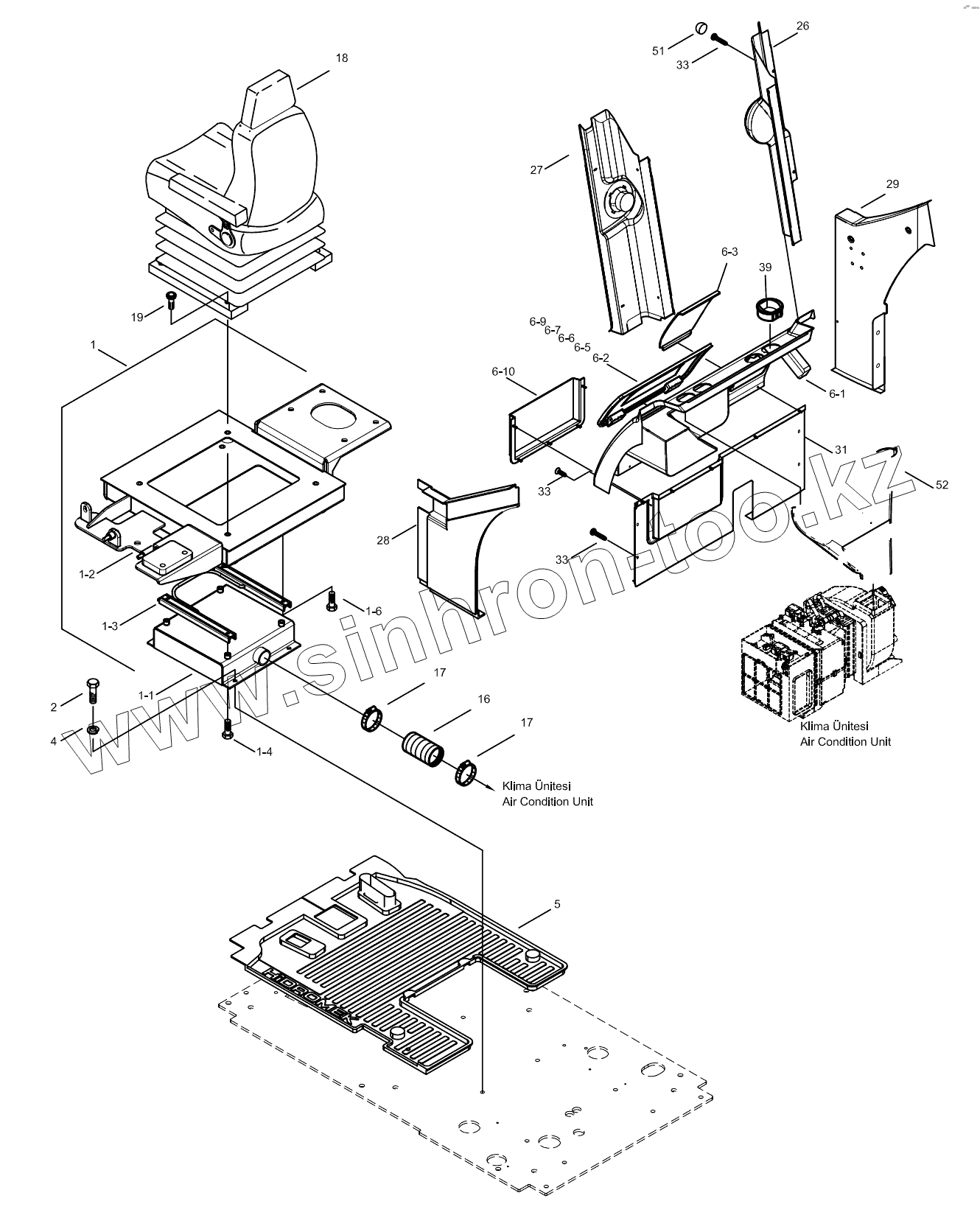

Каталог запасных частей к технике: Hidromek HMK 300LC. CAB INTERIROR MOUNTING (1)
1
1_1
1_2
1_3
1_4
1_6
2
4
5
6_1
6_2
6_3
6_5
6_6
6_7
6_9
6_10
16
17
17
18
19
26
27
28
29
31
33
33
33
39
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H346100607 | Seat Support Ass'y | |
| 1_1 | H346100705 | Seat Sup. W.A., Bot. | |
| 1_2 | H346100803 | Seat Sup. W.A., Up | |
| 1_3 | H346100901 | Slide Ass'y | |
| 1_4 | N01/5890518 | Bolt, Cyl. Head | |
| 1_6 | N01/5890470 | Bolt, Cylinder Head | |
| 2 | N01/0232846 | Bolt, Hex. | |
| 4 | N03/1310012 | Washer, Spr. | |
| 5 | H346107604 | Floormat | |
| 6 | H346104105 | Heater Cover Mnt., Up. | |
| 6_1 | H346104306 | Heater Cover | |
| 6_2 | H346104806 | Cover | |
| 6_3 | H346104504 | Cover, Fuse Plate | |
| 6_4 | N04/3700976 | Screw | |
| 6_5 | H346105202 | Lock, Female | |
| 6_6 | H346105302 | Lock, Male | |
| 6_7 | H346104902 | Hinge | |
| 6_8 | H346104101 | Fastener | |
| 6_9 | H346122301 | Mechanism, Cover | |
| 6_10 | H346123300 | Cover, Magazine | |
| 16 | H346118102 | Hose, Air | |
| 17 | N07/4040060 | CLIP | |
| 18 | H346101903 | Seat Ass'y | |
| 19 | N01/5890470 | Bolt, Cylinder Head | |
| 26 | H346120804 | Cover, Air, R/H | |
| 27 | H346120904 | Cover, Air, L/H | |
| 28 | H346120202 | Cover, L/H | |
| 29 | H346120002 | Cover, R/H | |
| 31 | H346120302 | Heater Cover, Lower | |
| 33 | N04/9561284 | Screw | |
| 39 | F25/20515 | COVER, AIR DUCT | |
| 51 | F99/15092 | Cover | |
| 52 | H346124300 | Air Link, Rear |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
