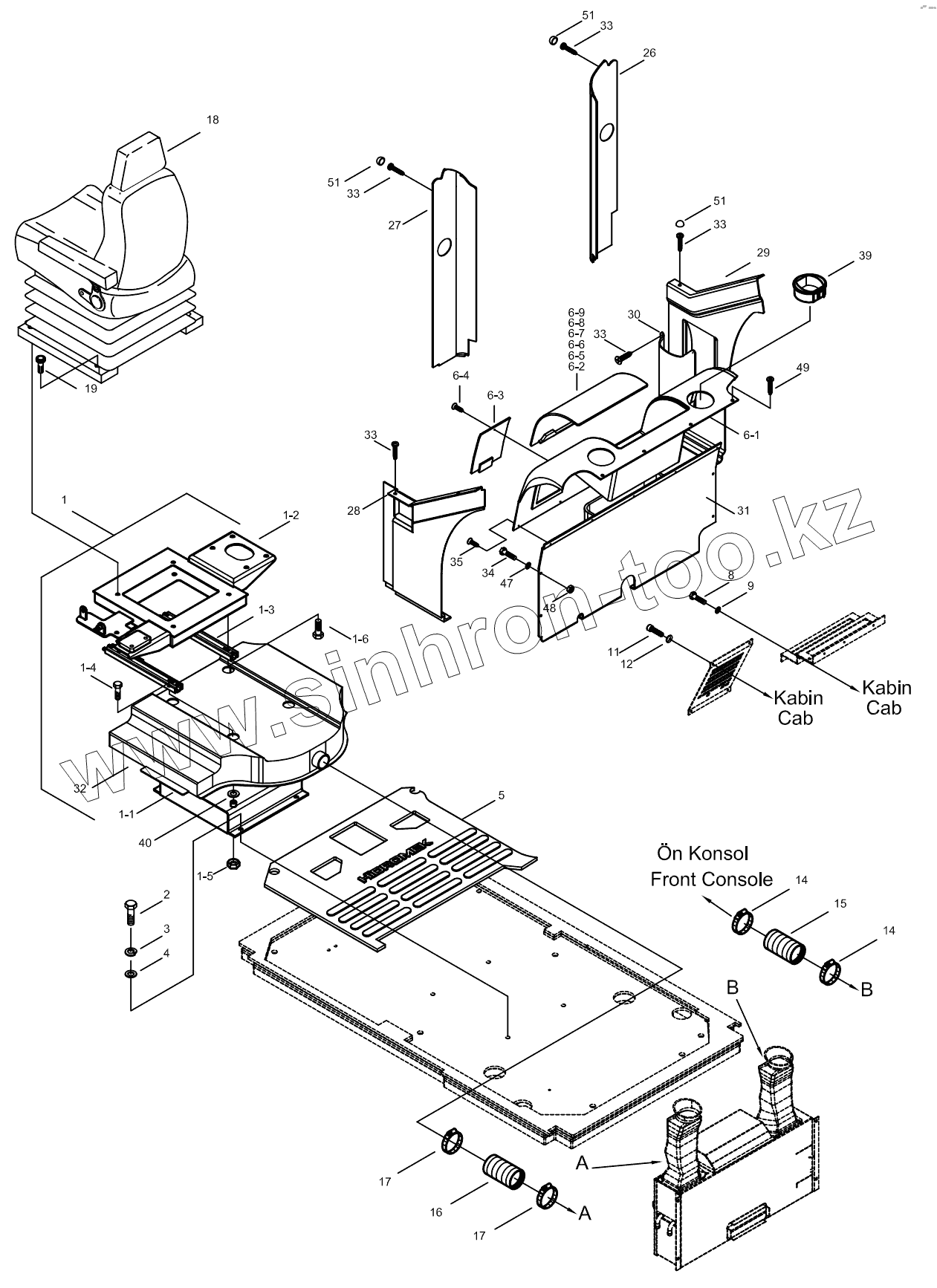

Каталог запасных частей к технике: Hidromek HMK 300LC. CAB INTERIROR MOUNTING (1)
1
1
1_1
1_2
1_2
1_3
1_4
1_6
2
3
4
5
6_1
6_1
6_2
6_2
6_3
6_3
6_4
6_4
6_5
6_6
6_7
6_7
6_8
6_9
8
9
11
12
14
14
15
16
17
17
18
19
26
26
26
27
27
27
28
28
29
29
30
31
32
32
33
33
33
33
33
33
33
33
34
35
39
40
47
48
49
51
51
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H346100605 | Seat Support Ass'y | |
| 1 | H346100606 | Seat Support Ass'y | |
| 1_1 | H346100704 | Seat Sup. W.A., Bot. | |
| 1_2 | H346100802 | Seat Sup. W.A., Up | |
| 1_2 | H346100803 | Seat Sup. W.A., Up | |
| 1_3 | H346100901 | Slide Ass'y | |
| 1_4 | N01/5890518 | Bolt, Cyl. Head | |
| 1_6 | N01/5890470 | Bolt, Cylinder Head | |
| 2 | N01/0232858 | Bolt, Hex. | |
| 3 | N03/0100023 | Washer, Pln. | |
| 4 | N03/1310012 | Washer, Spr. | |
| 5 | H346107603 | Floormat | |
| 6 | H346104104 | Heater Cover Mnt., Up. | |
| 6_1 | H346104304 | Heater Cover | |
| 6_1 | H346104305 | Heater Cover | |
| 6_2 | H346104804 | Cover | |
| 6_2 | H346104805 | Cover | |
| 6_3 | H346104502 | Cover, Fuse Plate | |
| 6_3 | H346104503 | Cover, Fuse Plate | |
| 6_4 | N04/1520914 | Bolt | |
| 6_4 | N04/3700976 | Screw | |
| 6_5 | H346105202 | Lock, Female | |
| 6_6 | H346105302 | Lock, Male | |
| 6_7 | H346104901 | Hinge | |
| 6_7 | H346104902 | Hinge | |
| 6_8 | H346104101 | Fastener | |
| 6_9 | H346122300 | Mechanisim, Cover | |
| 8 | N04/1671826 | Screw | |
| 9 | N03/0100011 | Washer, Pln. | |
| 11 | N04/1671826 | Screw | |
| 12 | N03/0100011 | Washer, Pln. | |
| 14 | N07/4060080 | Clamp | |
| 15 | H346118602 | Hose, Air | |
| 16 | H346118101 | Hose, Air | |
| 17 | N07/4050070 | Clamp | |
| 18 | H346101902 | Seat Ass'y | |
| 19 | N01/5890470 | Bolt, Cylinder Head | |
| 26 | H346120801 | Cover, Air, R/H | |
| 26 | H346120802 | Cover, Air, R/H | |
| 26 | H346120803 | Cover, Air, R/H | |
| 27 | H346120901 | Cover, Air, L/H | |
| 27 | H346120902 | Cover, Air, L/H | |
| 27 | H346120903 | Cover, Air, L/H | |
| 28 | H346120200 | Cover, L/H | |
| 28 | H346120201 | Cover, L/H | |
| 29 | H346120000 | Cover, R/H | |
| 29 | H346120001 | Cover, R/H | |
| 30 | H346120100 | Pocket, Cep | |
| 31 | H346120301 | Heater Cover, Lower | |
| 32 | H346120401 | Cover, Seat Support | |
| 33 | N04/9530360 | Screw | |
| 33 | N04/1671862 | BOLT, M5x15 | |
| 34 | N01/0221514 | Bolt, Hex. | |
| 35 | N04/3701144 | Screw | |
| 39 | H346121400 | Diffuser, Air | |
| 40 | H346121200 | Washer, Pln. | |
| 47 | N03/0020004 | Washer, Pln. | |
| 48 | N02/3560158 | Nut, Hex. | |
| 49 | N04/9530350 | Bolt | |
| 50 | H346121200 | Washer, Pln. | |
| 51 | F99/15092 | Cover |
