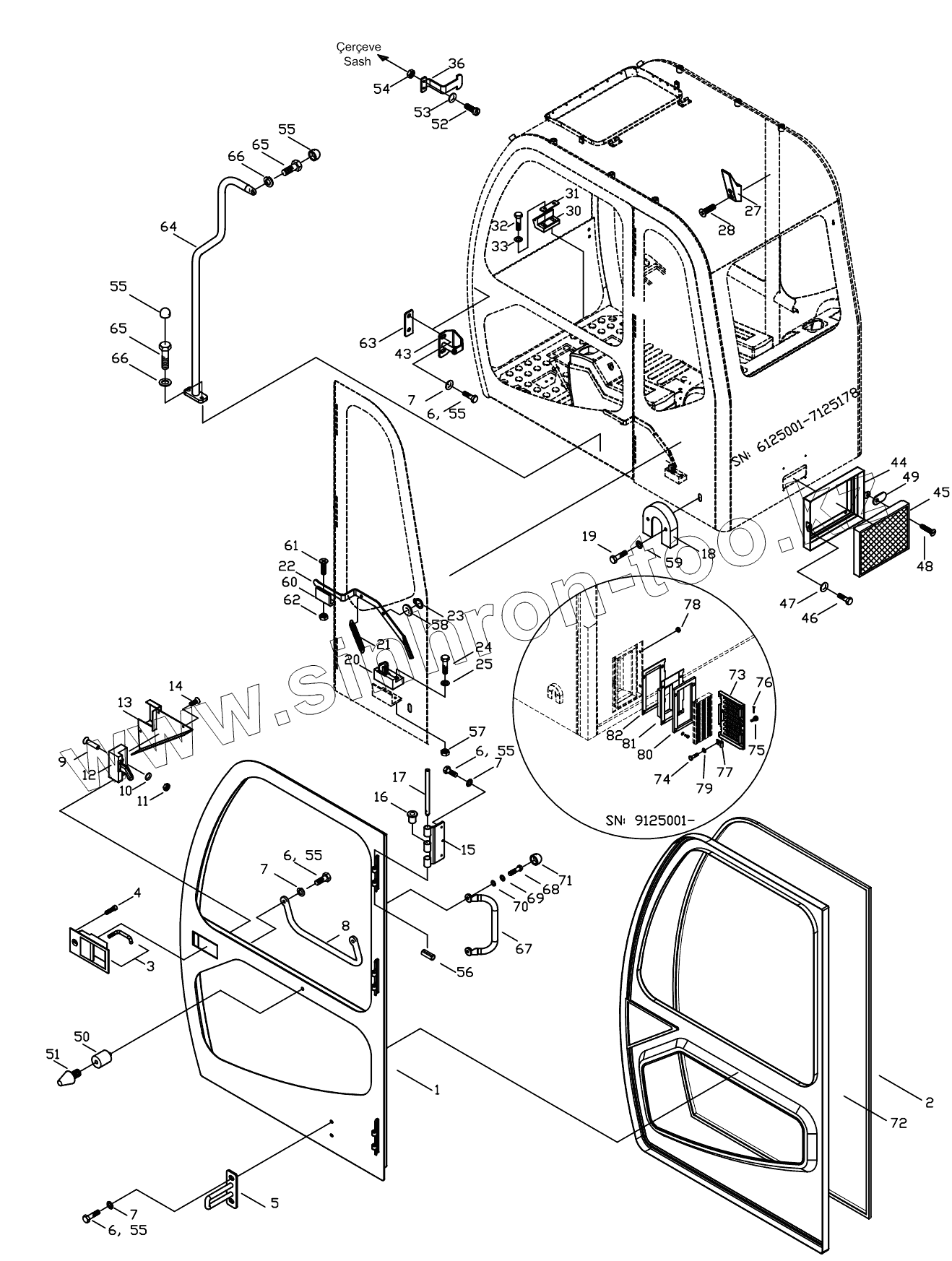

Каталог запасных частей к технике: Hidromek HMK 300LC. CAB (3)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
H346044103
1
1
2
3
4
5
6
6
6
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
27
28
30
31
32
33
36
43
44
45
46
47
48
49
50
51
52
53
54
55
55
55
55
55
55
56
57
58
59
60
61
62
63
64
65
65
66
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
Позиция на иллюстрации Заводской номер детали Название детали
H346044103 H346044103 Cover, Inside Lock
1 H346042103 Door, W.A.
1 H346042102 Door, W.A.
2 H346045000 Dust Rubber, Door
3 H346043802 Built-In Lock
4 N04/1672455 Bolt
5 H346045101 Mate, Back Lock
6 N01/0222114 Bolt, Hex.
7 N03/0100017 Washer, Pln.
8 H346044000 Door Handle, Inside
9 N04/3701394 Bolt
10 N03/0100013 Washer, Pln.
11 N02/3570158 Nut, Hex.
12 S91/00631 Lock, door
13 H346044102 Plate, Inside Lock
14 N04/9530350 Bolt
15 H346031900 Hinge
16 810/40030 Bushing, Rubber
17 H346045800 Pin, Hinge
18 H346062300 Bracket, Back Lock
19 N04/1671838 Bolt
20 H346036401 Back Lock
21 H346036300 Spring, Back Lock
22 H346036001 Lever, Back Lock
23 N03/0020015 Retaining Ring
24 N01/0232162 Bolt, Hex.
25 N02/0020011 Washer,Pln.
27 F32/18690 Hanger
28 N04/1150362 Bolt
30 H346039001 Support
31 H346039100 Plate
32 N01/0221538 Bolt, Hex.
33 N03/0100013 Washer, Pln.
36 H346035401 Bracket
43 H346037400 Striker
44 H346034300 Bracket, Filter
45 H346069000 Filter Ass'y.
46 N01/0221478 Bolt, Hex.
47 N03/0100013 Washer, Pln.
48 N01/0000005 Screw
49 N03/0100011 Washer, Pln.
50 H346045400 Stopper Connector
51 H346069600 Stopper
52 N04/1671838 Bolt
53 N03/0100011 Washer, Pln.
54 N02/3570146 Nut
55 814/00155 Cover, Bolt
56 N15/6450958 Safety Spring Pin
57 N02/3570182 Nut, Hex.
58 N03/0020018 Washer, Pln.
59 N03/0100011 Washer, Pln.
60 H346035900 Support
61 N04/3701118 Bolt
62 N02/3570146 Nut
63 H346036701 Striker Plate
64 H346035000 Inside Handle
65 N01/0222114 Bolt, Hex.
66 N03/0100017 Washer, Pln.
67 H346073600 Pipe, Door Handle
68 N01/0222114 Bolt, Hex.
69 N03/1310010 Washer, Spr.
70 N03/0020111 Washer, Pln.
71 814/00155 Cover, Bolt
72 H346120500 Cover, Door
73 H346076800 Cover, Air Filter, Out.
74 N01/0221514 Bolt, Hex.
75 H346044700 Glass, Door
76 N06/1002015 Pin, Split
77 H346078200 Hinge
78 N02/3560158 Nut, Hex.
79 N03/0090013 Washer,Pln.
80 H346078100 Rubber
81 H346077600 Connector
82 H346077500 Sponge
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
