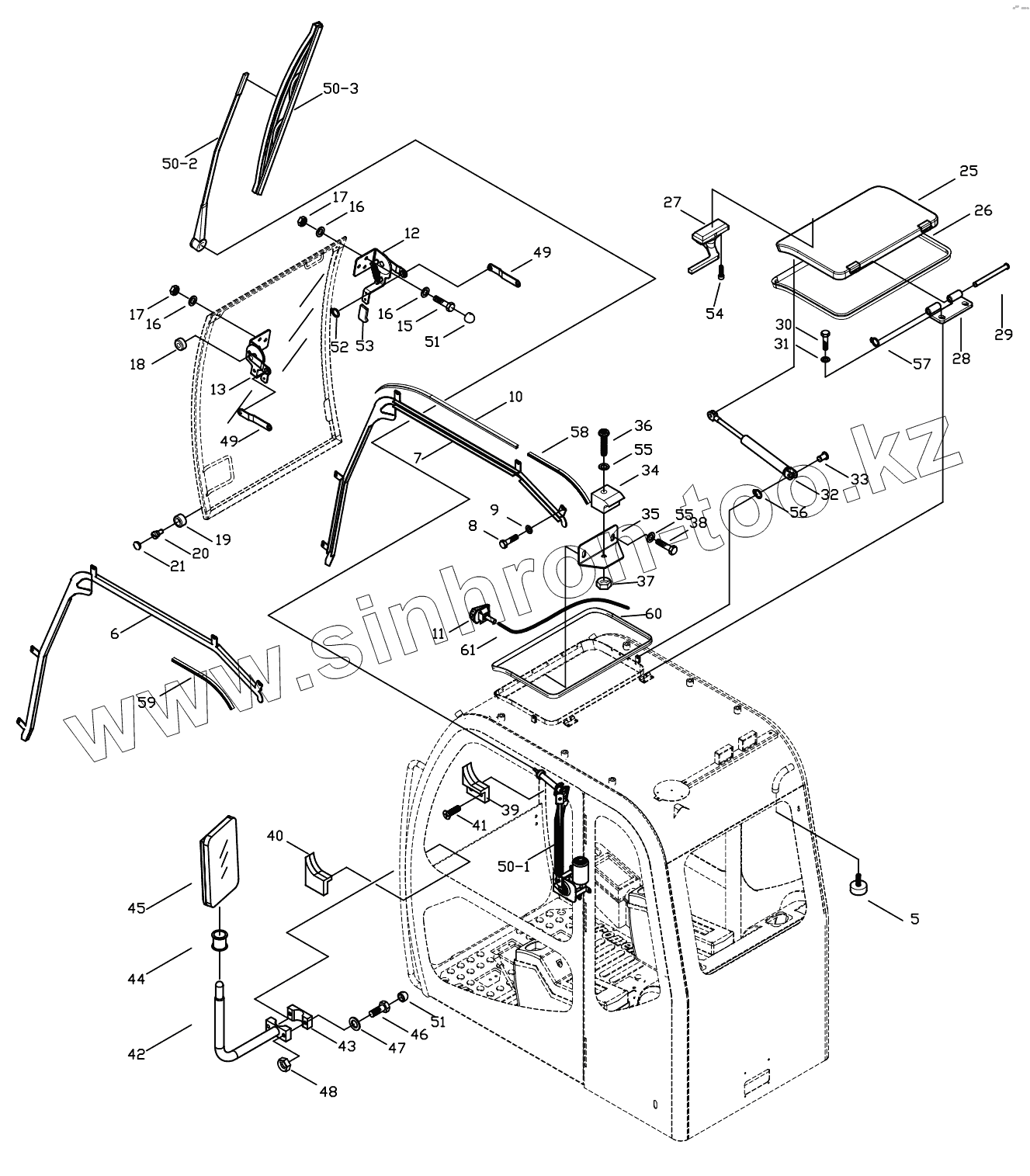

Каталог запасных частей к технике: Hidromek HMK 300LC. CAB (2)
5
6
6
7
7
8
9
10
11
12
12
13
13
15
16
16
16
17
17
18
19
20
21
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
49
50_1
50_2
50_3
51
51
52
53
54
55
55
56
57
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 5 | 810/40057 | Cover | |
| 6 | H346054501 | Sash Rail, L/H | |
| 6 | H346054502 | Sash Rail, L/H | |
| 7 | H346052501 | Sash Rail, R/H | |
| 7 | H346052502 | Sash Rail, R/H | |
| 8 | N01/0221480 | Bolt, Hex. | |
| 9 | N03/0090013 | Washer,Pln. | |
| 10 | H346053200 | Rubber, R/H, Front | |
| 11 | F32/10565 | Jet | |
| 12 | H346048000 | Sash Handle, R/H | |
| 12 | H346048001 | Sash Handle, R/H | |
| 13 | H346049700 | Sash Handle, L/H | |
| 13 | H346049701 | Sash Handle, L/H | |
| 15 | N01/0222078 | Bolt, Hex. | |
| 16 | N02/0020011 | Washer,Pln. | |
| 17 | N02/5900062 | Washer, Pln. | |
| 18 | H346050900 | Sash Wheel, Top | |
| 19 | H346048100 | Sash Wheel, Bottom | |
| 20 | H346048200 | Bolt, Bottom Wheel | |
| 21 | H346048300 | Plug, Wheel | |
| 25 | H346051101 | Vent, W.A. | |
| 26 | H346052101 | Weather Wiper | |
| 27 | H346052000 | Handle, Vent | |
| 28 | H346032300 | Hinge, Vent | |
| 29 | H346051800 | Hinge Pin | |
| 30 | N01/0221514 | Bolt, Hex. | |
| 31 | N03/0100013 | Washer, Pln. | |
| 32 | H346037100 | Gas Spring, Vent | |
| 33 | H346036600 | Pin, Gas Spring | |
| 34 | H346037000 | Striker, Vent Handle | |
| 35 | H346051900 | Bracket,Striker | |
| 36 | N01/5870352 | Bolt, Hex. | |
| 37 | N02/3560158 | Nut, Hex. | |
| 38 | N01/0221514 | Bolt, Hex. | |
| 39 | H346068600 | Stopper, Sash, R/H | |
| 40 | H346068500 | Stopper, Sash, L/H | |
| 41 | N04/3701118 | Bolt | |
| 42 | H346062900 | Bracket, Mirror | |
| 43 | H346063100 | Clamp, Mir. Bracket | |
| 44 | H346063200 | Gasket | |
| 45 | S91/00960 | Mirror | |
| 45 | S91/00967 | Mirror | |
| 46 | N01/0222114 | Bolt, Hex. | |
| 47 | N03/0100017 | Washer, Pln. | |
| 48 | N02/3570182 | Nut, Hex. | |
| 49 | H346050600 | Lock Joint | |
| 50 | H346065000 | W.Shield Wiper Sys. | |
| 50_1 | H349060001 | Group Motor & Link. | |
| 50_2 | H349060011 | m, Wiper | |
| 50_3 | H349060012 | Blade, Wiper | |
| 51 | 814/00155 | Cover, Bolt | |
| 52 | N05/0020015 | Retaining Ring | |
| 53 | H346049800 | Plastic Cover | |
| 54 | N01/5870302 | Bolt | |
| 55 | N03/0100013 | Washer, Pln. | |
| 56 | N05/0020009 | Retaining Ring | |
| 57 | N05/0020007 | Retaining Ring | |
| 58 | H346053300 | Rubber, R/H, Re | |
| 59 | H346053400 | Rubber, L/H | |
| 60 | H346052201 | Weather Wiper | |
| 61 | H346065100 | Hose, Wiper |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
