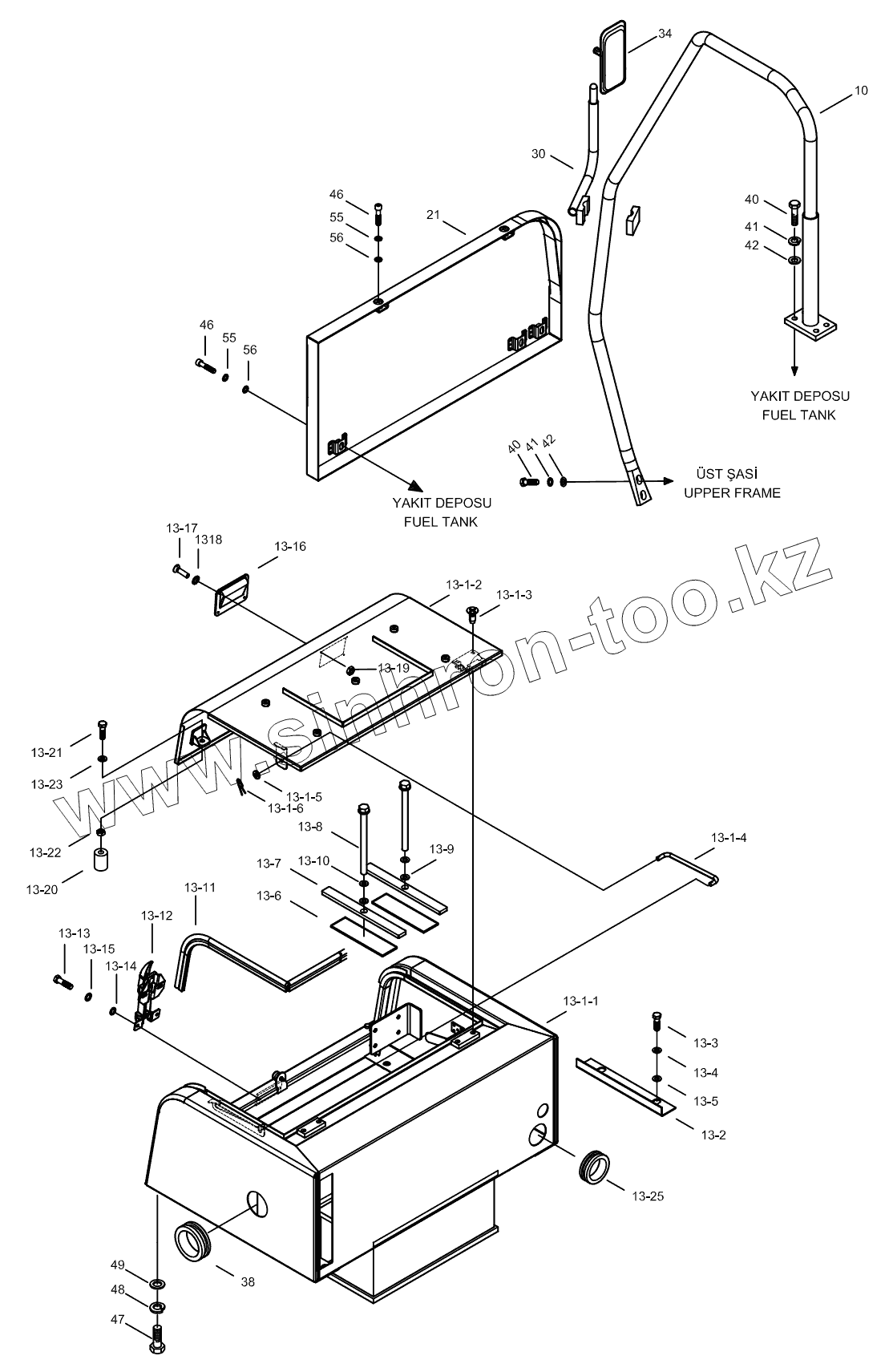

Каталог запасных частей к технике: Hidromek HMK 300LC. BATTERY BOX MOUNTING

Тип техники

Марка

Модель

Схема

10

13_1_1

13_1_2

13_1-3

13_1_4

13_1_5

13_1_6

13_2

13_3

13_4

13_5

13_6

13_7

13_8

13_9

13_10

13_11

13_12

13_12

13_13

13_14

13_15

13_16

13_17

13_18

13_19

13_20

13_21

13_22

13_23

13_25

21

21

21

30

34

34

38

40

40

41

41

42

42

46

46

47

48

49

55

55

56

56

Позиция на иллюстрации	Заводской номер детали		Название детали
10	H251201001		Stay WA
13	H251201400		Battery Box Mount.
13_1	H251205800		Battery Box Sub. Mnt.
13_1_1	Battery Box WA		Battery Box WA
13_1_2	Cover		Cover
13_1-3	N01/1560014		Bolt
13_1_4	H341205800		Rod W.A.
13_1_5	H341116200		Support
13_1_6	N06/1002015		Pin, Split
13_2	H341205900		Support
13_3	N01/0223566		Bolt, Hex.
13_4	N03/0100027		Washer, Pln.
13_5	N03/1310014		Washer, Spr.
13_6	020/40190		Rubber
13_7	H341206000		Plate, Accum.
13_8	N01/0381467		Bolt, Hex.
13_9	N03/0100027		Washer, Pln.
13_10	N03/1310014		Washer, Spr.
13_11	98Z020010		Wheather Strip
13_12	H341113900		Catch
13_12	H341113901		Catch
13_13	N01/0232138		Bolt, Hex.
13_14	N03/0100017		Washer, Pln.
13_15	N03/1310010		Washer, Spr.
13_16	F99/50000		Handle
13_17	N04/3700926		BOLT M4x12
13_18	N03/2500003		Washer, Pln.
13_19	N02/5900014		Nut
13_20	H341217301		Stoper
13_21	N01/0232510		Bolt, Hex.
13_22	N02/3570206		Nut, Hex.
13_23	N03/0100020		Washer, Pln.
13_25	98Y040140		Gromet
21	H251205200		Cover, Upper
21	H251205201		Cover, Upper
21	H251205202		Cover, Upper
30	H341217901		Stay, Mirror
34	S91/00960		Mirror
34	S91/00967		Mirror
38	98Y040120		Gromet
40	N01/0380842		Bolt, Hex.
41	N03/1310012		Washer, Spr.
42	N03/0100023		Washer, Pln.
46	N01/5890818		Bolt, Cyl. Hd.
47	N01/0232858		Bolt, Hex.
48	N03/1310012		Washer, Spr.
49	N03/0100023		Washer, Pln.
55	N03/1310011		Washer, Spr.
56	N03/0100021		Washer, Pln.

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
