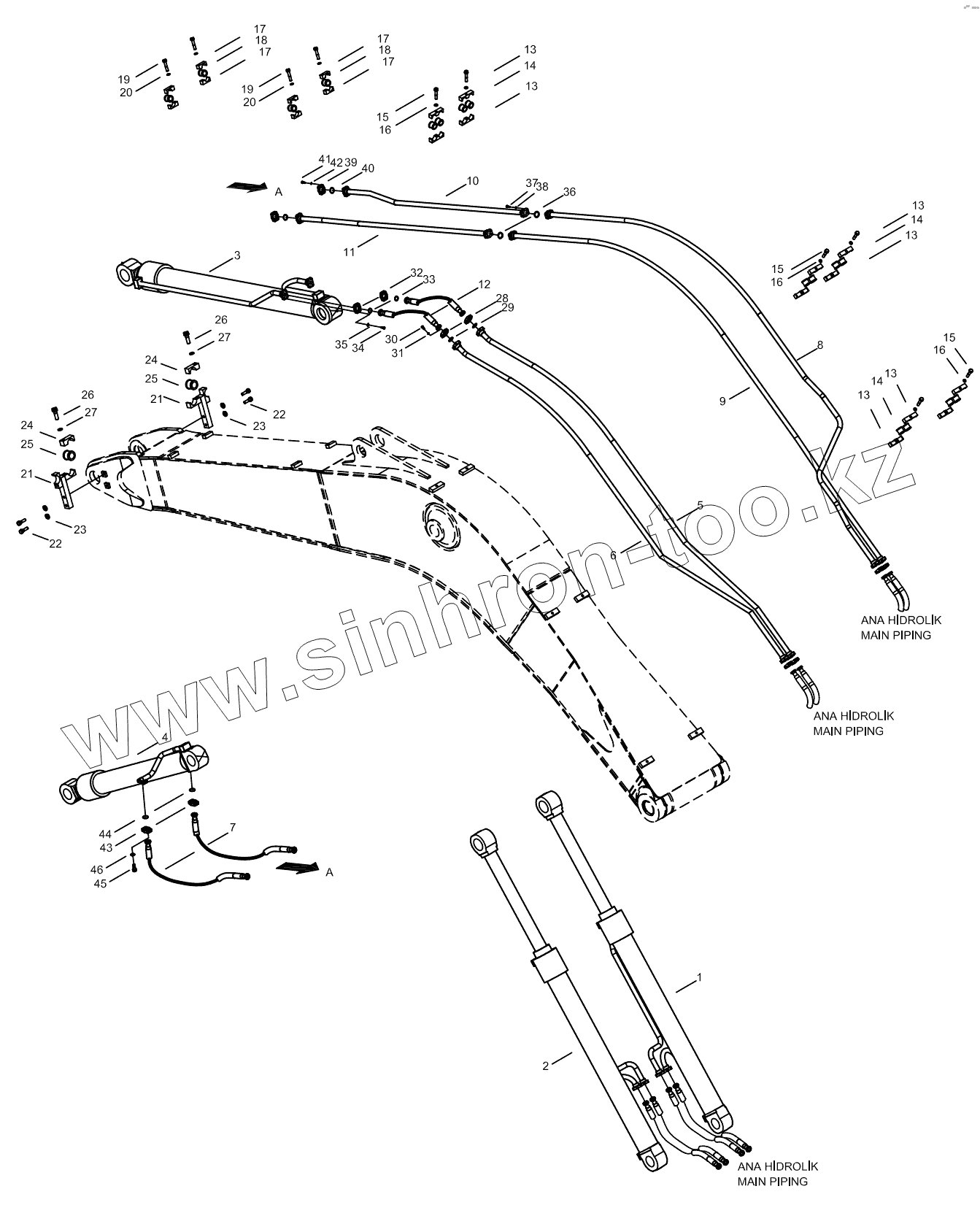

Каталог запасных частей к технике: Hidromek HMK 300LC. ATTACHMENT PIPING
1
1
2
2
3
3
4
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
13
13
13
13
13
14
14
14
15
15
15
16
16
16
17
17
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H253300101 | Cyl., RH, Boom | |
| 1 | H253300100 | Cyl., RH, Boom | |
| 2 | H253300201 | Cyl., LH, Boom | |
| 2 | H253300200 | Cyl., LH, Boom | |
| 3 | H253300300 | Cylinder, Arm | |
| 3 | H253300301 | Cylinder, Arm | |
| 4 | H253300400 | Cylinder, Bucket | |
| 4 | H253300401 | Cylinder, Bucket | |
| 4 | H253300402 | Cylinder, Bucket | |
| 5 | H253300500 | Pipe WA, Arm, Piston | |
| 5 | H253300501 | Pipe WA, Arm, Piston | |
| 6 | H253300700 | Pipe WA, Arm, Rod | |
| 6 | H253300701 | Pipe WA, Arm, Rod | |
| 7 | H253300901 | Hose Ass'y | |
| 7 | H253300900 | Hose Ass'y | |
| 8 | H253301001 | Pipe WA, Buc., Rod | |
| 8 | H253301000 | Pipe WA, Buc., Rod | |
| 9 | H253301200 | Pipe WA, Buc., Piston | |
| 9 | H253301201 | Pipe WA, Buc., Piston | |
| 10 | H253301400 | Pipe WA, Buc., Rod | |
| 10 | H253301401 | Pipe WA, Buc., Rod | |
| 11 | H253301600 | Pipe WA, Buc., Piston | |
| 11 | H253301601 | Pipe WA, Buc., Piston | |
| 12 | H343301300 | Hose Ass'y | |
| 13 | H343003200 | Clamp | |
| 14 | H340102500 | Rubber | |
| 15 | N01/0381310 | Bolt, Hex. | |
| 16 | N03/1310014 | Washer, Spr. | |
| 17 | H343301500 | Clamp | |
| 18 | H340102500 | Rubber | |
| 19 | N01/0381310 | Bolt, Hex. | |
| 20 | N03/1310014 | Washer, Spr. | |
| 21 | H253301800 | Holder WA | |
| 22 | N01/0232858 | Bolt, Hex. | |
| 23 | N03/1310012 | Washer, Spr. | |
| 24 | H343301500 | Clamp | |
| 25 | H340102500 | Rubber | |
| 26 | N01/0381238 | Bolt, Hex. | |
| 27 | N03/1310014 | Washer, Spr. | |
| 28 | N16/J360104 | Flange | |
| 29 | N10/2003335 | O-Ring | |
| 30 | N01/5890842 | Bolt, Cylinder Head | |
| 31 | N03/1360010 | Washer, Spr. | |
| 32 | N16/J360104 | Flange | |
| 33 | N10/2003335 | O-Ring | |
| 34 | N01/5890854 | Bolt, Cylinder Head | |
| 35 | N03/1360010 | Washer, Spr. | |
| 36 | N10/2003335 | O-Ring | |
| 37 | N01/5890854 | Bolt, Cylinder Head | |
| 38 | N03/1360010 | Washer, Spr. | |
| 39 | N16/J360104 | Flange | |
| 40 | N10/2003335 | O-Ring | |
| 41 | N01/5890842 | Bolt, Cylinder Head | |
| 42 | N03/1360010 | Washer, Spr. | |
| 43 | N16/J360104 | Flange | |
| 44 | N10/2003335 | O-Ring | |
| 45 | N01/5890830 | Bolt, Cyl. Hd. | |
| 46 | N03/1360010 | Washer, Spr. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
