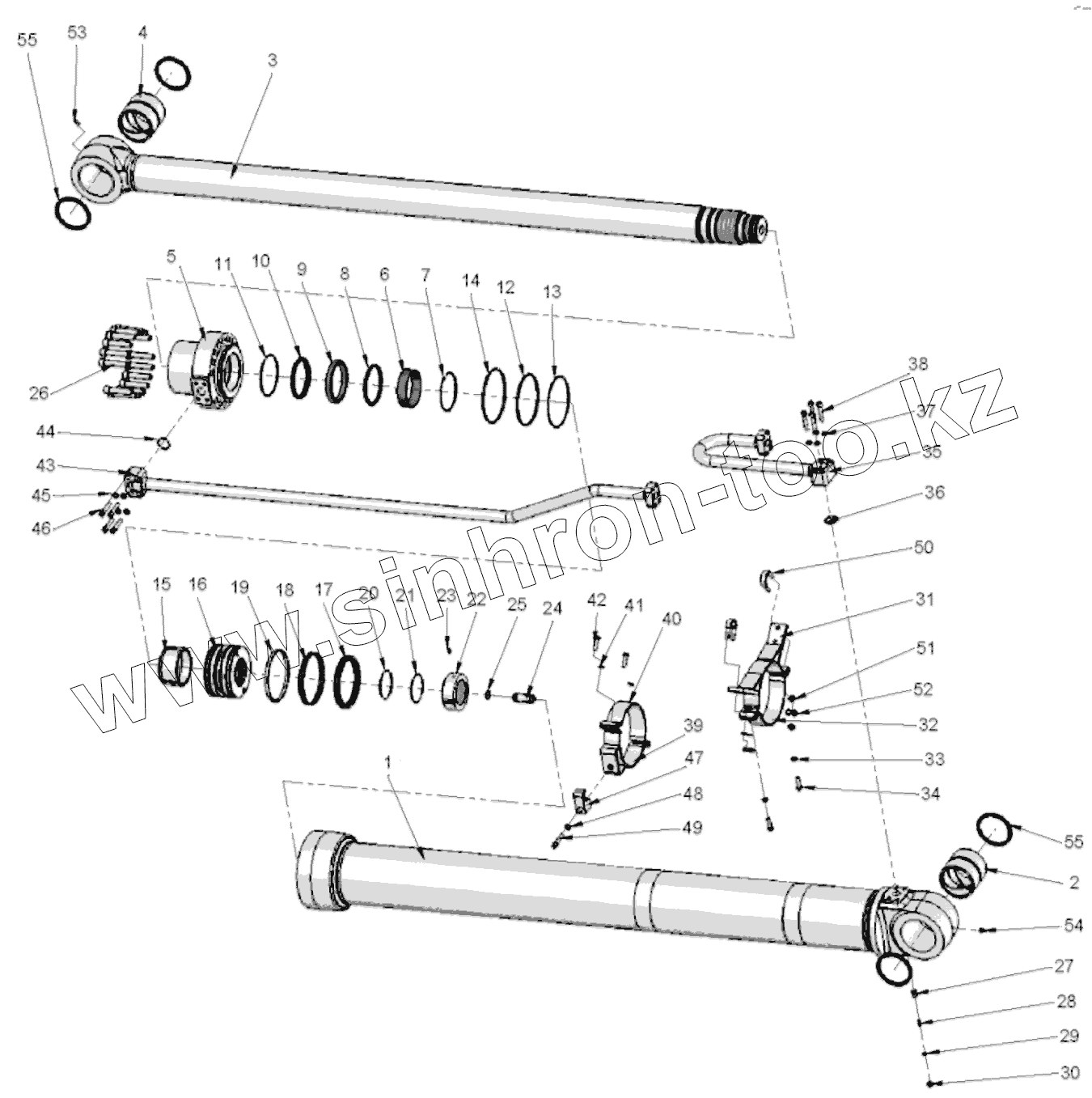

Каталог запасных частей к технике: Hidromek HMK 300LC. ARM CYLINDER

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
H259038051a
H259038086a
H259038086a
H259038086
H259038086
1
2
3
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
34
35
35
36
37
38
39
39
39
39
40
40
41
42
43
43
44
45
46
47
47
47
47
47
47
48
48
48
48
48
48
49
49
50
51
52
53
54
55
55
Позиция на иллюстрации Заводской номер детали Название детали
H259038051a H259038051a Tube
H259038086a H259038086a Seal KIT
H259038086 H259038086 Seal KIT
1 H259038051 Tube
2 H259038039 Bush
3 H259038052a Rod Ass'y
3 H259038052 Rod Ass'y
4 H259038039 Bush
5 H259038053a Rod Cover
5 H259038053 Rod Cover
6 H259038054a DD-Bush
6 H259038054 DD-Bush
7 H259038010a Retaining Ring
7 H259038010 Retaining Ring
8 H259038055a Buffer Seal
8 H259038055 Buffer Seal
9 H259038056 U-Packing
9 H259038056a U-Packing
10 H259038057a Dust Wiper
10 H259038057 Dust Wiper
11 H259038058 Retaining Ring
11 H259038058a Retaining Ring
12 H259038059a O-Ring
12 H259038059 O-Ring
13 H259038060 Back Up Ring
13 H259038060a Back Up Ring
14 H259038061a O-Ring
14 H259038061 O-Ring
15 H259038062 Cushion Ring
15 H259038062a Cushion Ring
16 H259038063a Piston
16 H259038063 Piston
17 H259038064 Slipper Seal
17 H259038064a Slipper Seal
18 H259038065a Wear Ring
18 H259038065 Wear Ring
19 H259038066 Slyd Ring
19 H259038066a Slyd Ring
20 H259038067a O-Ring
20 H259038067 O-Ring
21 H259038068 Back Up Ring
21 H259038068a Back Up Ring
22 H259038069a Piston Nut
22 H259038069 Piston Nut
23 H259038022 Set, Screw
24 H259038070 Cushion Plunger
24 H259038070a Cushion Plunger
25 H259038071 Stop Ring
25 H259038071a Stop Ring
26 H259038072a Hex. Socket Bolt
26 H259038072 Hex. Socket Bolt
27 H259038073 Check Valve
27 H259038073a Check Valve
28 H259038074a Spring
28 H259038074 Spring
29 H259038075 Spring Support
29 H259038075a Spring Support
30 H259038076 Hex. Socket Plug
30 H259038076a Hex. Socket Plug
31 H259038077 Pipe Band Ass'y
31 H259038077a Pipe Band Ass'y
32 H259038078a Pipe Band
32 H259038078 Pipe Band
33 H259038025 Spring Washer
34 H259038026 BOLT
35 H259038079 Pipe Ass'y, H
35 H259038079a Pipe Ass'y, H
36 H259038045 O-Ring
37 H259038025 Spring Washer
38 H259038029 Hex. Socket Bolt
39 H259038080 Pipe Band Ass'y
39 H259038080a Pipe Band Ass'y
40 H259038078 Pipe Band
40 H259038078a Pipe Band
41 H259038025 Spring Washer
42 H259038026 BOLT
43 H259038081 Pipe Ass'y, R
43 H259038081a Pipe Ass'y, R
44 H259038027 O-Ring
45 H259038025 Spring Washer
46 H259038029 Hex. Socket Bolt
47 H259038082 Pipe Clamp
47 H259038082a Pipe Clamp
48 H259038083 Spring Washer
48 H259038083a Spring Washer
49 H259038084 Bolt, Hex.
49 H259038084a Bolt, Hex.
50 H259038030 U-Bolt
51 H259038031 Spring Washer
52 H259038085 Hex. Nut
53 H259038033 GREASE NIPPLE
54 H259038048 GREASE NIPPLE
55 H259038049 Pin Wiper
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
