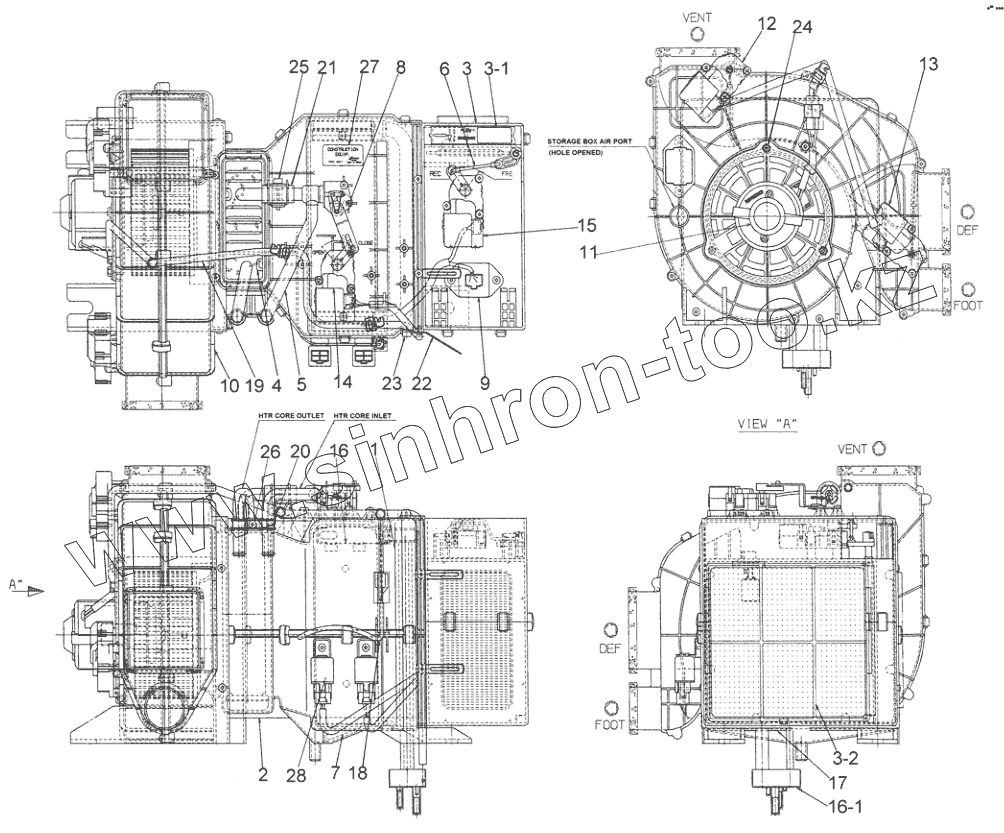

Каталог запасных частей к технике: Hidromek HMK 300LC. AIRCONDITION UNIT
1
2
3
3_1
3_2
4
5
6
8
9
10
11
12
13
14
15
16
16_1
17
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H349084004 | Case Ass'y, Upper | |
| 2 | H349084005 | Case Ass'y, Lower | |
| 3 | H349084006 | Intake Case Ass'y | |
| 3_1 | H349084002 | External Filter | |
| 3_2 | H349084003 | Internal Filter | |
| 4 | H349084007 | Heater Core | |
| 5 | H349084008 | Valve Ass'y, Water | |
| 6 | H349084009 | Intake Rod | |
| 8 | H349084010 | Screw TH Tap | |
| 9 | H349084011 | Resistor Ass'y Cer. | |
| 10 | H349084012 | Case Ass'y, Blower | |
| 11 | H349084013 | Fan-Motor Ass'y | |
| 12 | H349084014 | Mode/Actuator Ass'y, Vent | |
| 13 | H349084015 | Mode/Actuator | |
| 14 | H349084016 | Mode/Actuator Ass'y, Temp | |
| 15 | H349084017 | Mode/Actuator Ass'y, Intake | |
| 16 | H349084018 | Evap. Core Ass'y | |
| 16_1 | H349084019 | Cap, Flange | |
| 16_2 | H349084020 | Expansion Valve | |
| 17 | H349084021 | Side Plate | |
| 18 | H349084022 | Duct Sensor | |
| 19 | H349084023 | Wiring Ass'y | |
| 20 | H349084024 | H/Rad. Pipe Clamp | |
| 21 | H349084025 | Water Hose | |
| 22 | H349084026 | Wire Holder | |
| 23 | H349084027 | Clip, Case | |
| 24 | H349084028 | Hex. Head Screw | |
| 25 | H349084029 | Hose Clamp Ass'y | |
| 26 | H349084030 | Screw | |
| 27 | H349084031 | Name Plate | |
| 28 | H349084032 | Relay |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
