Каталог запасных частей к технике: Hidromek HMK 300LC. AIRCONDITION MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
48
49
49
50
51
52
52
52
53
54
55
55
56
56
56-1
56-2
57
58
59
60
61
62
63
101
102
102
103
104
104
105
106
107
108
109
110
116
117
118
123
124
125
130
132
133
136
139
140
141
142

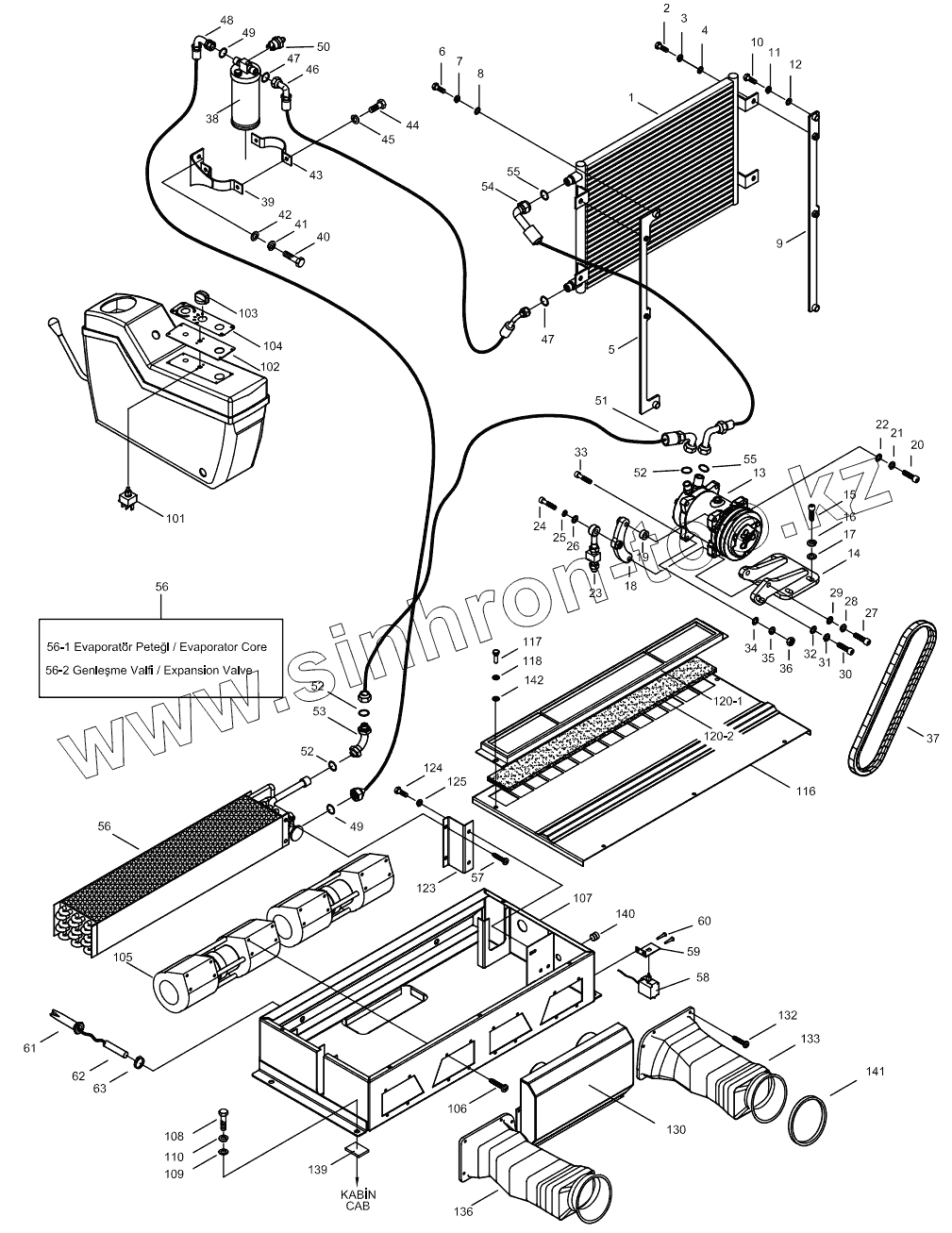

Позиция на иллюстрации Заводской номер детали Название детали
1 F25/20562 Condenser
2 N01/0222078 Bolt, Hex.
3 N03/1310010 Washer, Spr.
4 N03/0100017 Washer, Pln.
5 H252700300 Bracket, Condenser
6 N01/0380386 Bolt, Hex.
7 N03/1310010 Washer, Spr.
8 N03/0100017 Washer, Pln.
9 H252700600 Bracket, Condenser
10 N01/0380386 Bolt, Hex.
11 N03/1310010 Washer, Spr.
12 N03/0100017 Washer, Pln.
13 H342700501 Compressor
14 H252701201 Support, Compresor
15 N01/5890842 Bolt, Cylinder Head
16 N03/1360010 Washer, Spr.
17 N03/0020121 Washer, Pln.
18 H342731600 Bracket
19 H342731800 Spacer
20 N01/5890878 Bolt, Cyl. Head
21 N03/1360010 Washer, Spr.
22 N03/0100020 Washer, Pln.
23 H342731100 Puller
24 N01/5890854 Bolt, Cylinder Head
25 N03/1360010 Washer, Spr.
26 N03/0100021 Washer, Pln.
27 N01/5890878 Bolt, Cyl. Head
28 N03/1360010 Washer, Spr.
29 N03/0100021 Washer, Pln.
30 N01/5890818 Bolt, Cyl. Hd.
31 N03/1360010 Washer, Spr.
32 N03/0100020 Washer, Pln.
33 N01/5890854 Bolt, Cylinder Head
34 N03/1360010 Washer, Spr.
35 N03/0100020 Washer, Pln.
36 N02/3570206 Nut, Hex.
37 H342732000 V-Belt
38 F25/21000 Drier
39 H342700801 Bracket, Drier
40 N01/0222114 Bolt, Hex.
41 N03/1310010 Washer, Spr.
42 N03/0100017 Washer, Pln.
43 H342703501 Bracket
44 N01/0221514 Bolt, Hex.
45 N03/1310008 Washer, Spr.
46 H252700800 Liquid Hose-A
47 N10/2500508 O-Ring
48 H252700900 Liquid Hose-B
49 N10/2500508 O-Ring
50 515/20000 Pressure Switch
51 H252701100 Suc. Hose
52 N10/2500708 O-Ring
53 H342703900 Pipe
54 H252701000 Dis. Hose
55 N10/2500304 O-Ring
56 H342704400 Evaporator
56-1 H349083001 Evaporator Core
56-2 H349083002 Expansion Valve
57 N04/1150338 Bolt
58 F25/20411 Thermostat
59 H342705000 Bracket, Termostat
60 N04/9530350 Bolt
61 H342704500 Mud Holder
62 H342703800 Hose, Water
63 N07/4010016 Clamp
101 554/01000 Aircon Fan Switch
102 H342720302 Plate
102 H342720303 Plate
103 H342711802 Handle
104 H342723700 Decal
104 H342723701 Decal
105 H342720500 Fan
106 N04/1150338 Bolt
107 H342720602 Aircon Heater Box
108 N01/0232114 Bolt, Hex.
109 N03/0100017 Washer, Pln.
110 N03/1310010 Washer, Spr.
116 H342722503 Cover, W.A.
117 N01/0221514 Bolt, Hex.
118 N03/0100013 Washer, Pln.
120 H342727301 Polen Filter Ass'y
120 120_1 H342727401 Plate, Filter
120 120_2 H342727501 Filter, Polen
123 H342723501 Plate W.A., Evap.
124 N01/0221478 Bolt, Hex.
125 N03/1310008 Washer, Spr.
130 H342726001 Cover, W.A., Middle
132 N04/1150349 Bolt
133 H342726901 Cover, W.A., R/H
136 H342726501 Cover, W.A., L/H
139 H342727600 Rubber
140 810/40005 Rubber
141 98Z030010 Weather Strip
142 N03/0020004 Washer, Pln.
