VENTILATION SYSTEM
WATER PUMP
THERMOSTAT
FAN & FAN BELT
FAN GUARD
PULLEY
FUEL FEED PUMP & ELECTROMAGNETIC PUMP
INJECTION PUMP GASKET
FUEL INJECTION SYSTEM 1
FUEL INJECTION SYSTEM 2
FUEL INJECTION SYSTEM 3
FUEL FILTER
STARTER
GENERATOR
ENGINE WIRING HARNESS
HARNESS FIXING PARTS
ELECTRIC CONTROL PARTS 1
ELECTRIC CONTROL PARTS 2
ELECTRIC CONTROL & OTHER PARTS
INLET MANIFOLD
EXHAUST MANIFOLD
TURBOCHARGER SYSTEM
EGR
EGR WATER PIPING
1
9
10A
10B
10C
11
11
21A
91
262
262
262
262
263
263-1
263-2

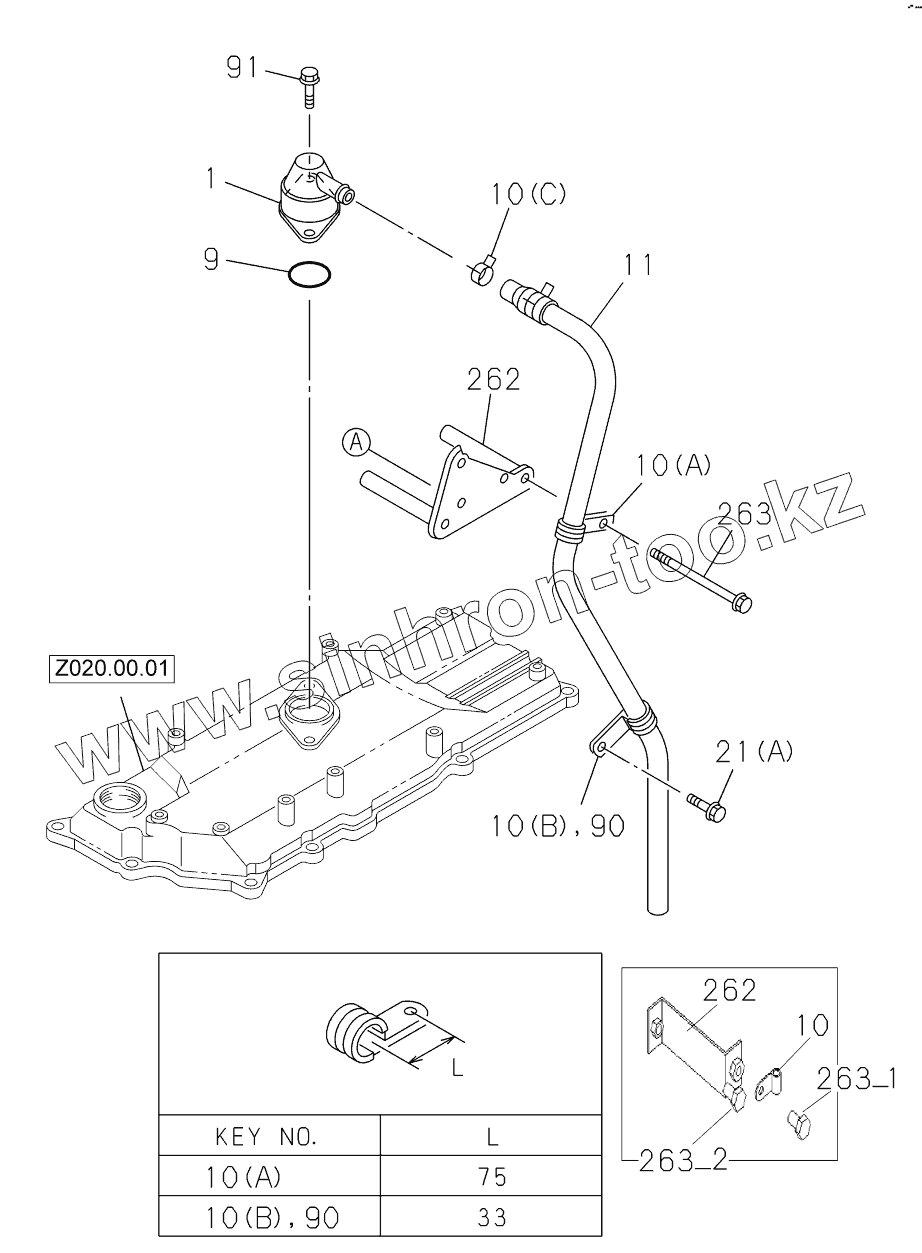

Позиция на иллюстрации
Заводской номер детали
Название детали
1
H349004042
BREATHER
9
H349004041
GASKET
10A
H349004306
CLAMP
10B
H349004306A
CLAMP
10C
H349004308
CLAMP
11
H349004309
HOSE
11
H349004309A
HOSE
21A
H349004560
BOLT
91
H349004311
BOLT
262
H349004312
BRACKET
262
H259002323
BRACKET
263
H349004313
BOLT
263-1
H349004559
BOLT
263-2
H349004560
BOLT
