Каталог запасных частей к технике: Hidromek HMK 230LC3. UPPER FRAME AND UNDER COVER MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1-1
1-2
1-2
2
2-1
2-2
2-3
2-4
2-5
2-6
2-7
2-8
2-8
2-8
2-8
4
5
6
6
6
6
7
7
8
8
8
9
10
11
12
13
14
19
20
21
24
24
25
25
26
27
28
29
30
31
33
34
35
36
37
38
41
42
45
50
51
53
53
54
54
55
56
56
56
57
57
57
57
57
57
57
57
57
58
59
60
60
61
61
61
61
61
61
61
61
61
61
62
62
62
63
64
64
64
64
65
67
68

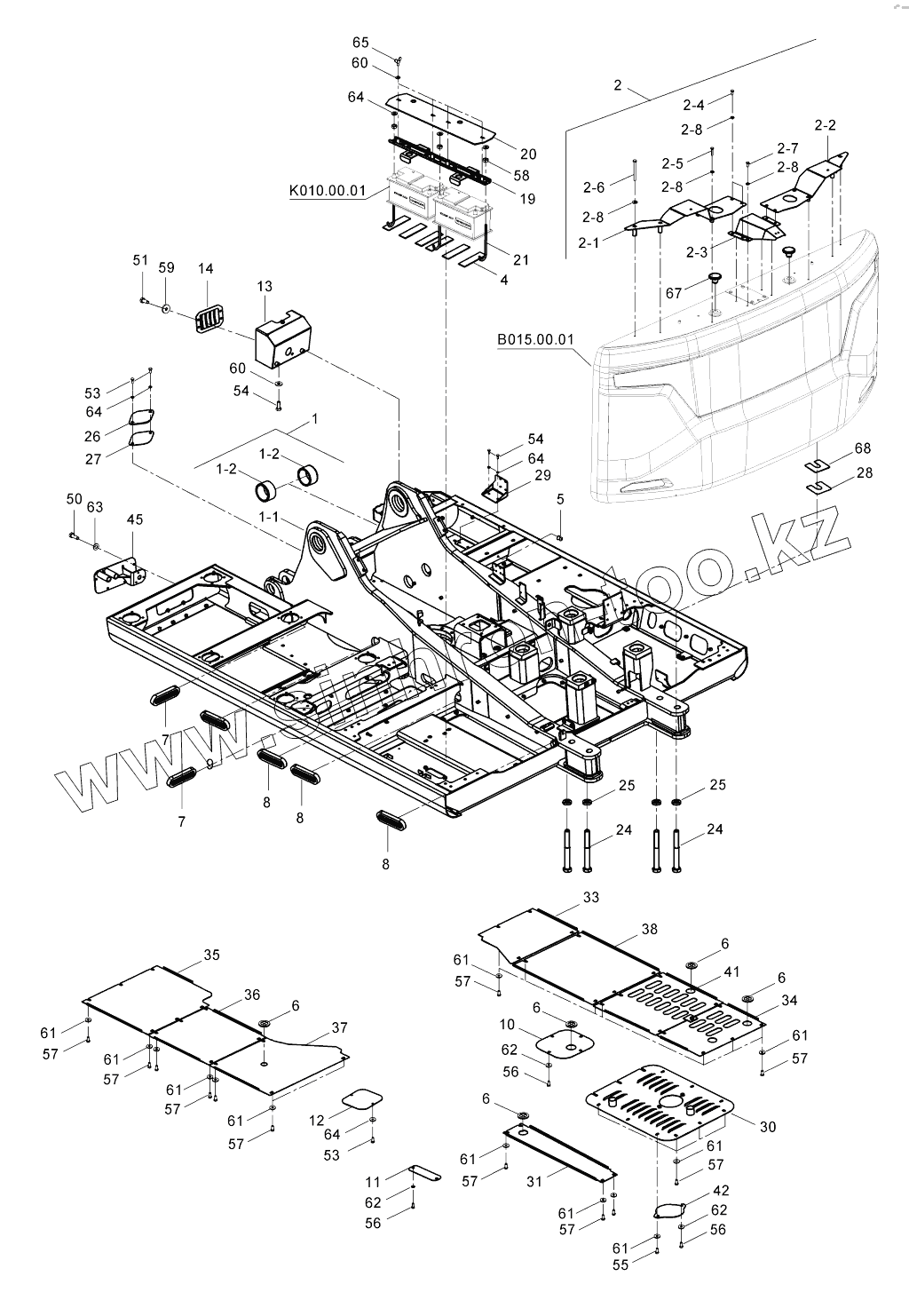

Позиция на иллюстрации Заводской номер детали Название детали
1 H341265100 FRAME , UPPER
1-1 H341060000 FRAME , UPPER
1-2 H221202300 BUSHING
2 H331236000 PLATE , UPPER
2-1 H331235700 COVER
2-2 H331236100 COVER
2-3 H331237200 SUPPORT
2-4 N010232462 Bolt
2-5 N010232534 BOLT
2-6 N010232666 BOLT
2-7 N010232822 BOLT
2-8 N030560002 WASHER
4 H331237100 RUBBER PART
5 98U010310 PLUG
6 98Y020550 GROMMET
7 98Y040120 Gromet
8 98Y040138 GROMMET
9 98Y040140 Gromet
10 H221201100 COVER, LOWER
11 H251220501 PLATE, LOWER
12 H251220600 COVER, LOWER
13 H251247500 COVER
14 H251262200 GUARD
19 H331235200 BRACKET
20 H331235500 COVER
21 H331235600 STUD
24 H341201203 BOLT, SPECIAL
25 H341201302 WASHER, SPECIAL
26 H341201500 Cover
27 H341201600 Gasket
28 H341237900 SHIM
29 H341249800 PLATE
30 H341246100 COVER, LOWER
31 H341265200 COVER
33 H341265300 COVER, LOWER
34 H341265500 COVER, LOWER
35 H341265600 COVER, LOWER
36 H341265700 COVER, LOWER
37 H341265800 COVER, LOWER
38 H341265900 COVER, LOWER
41 H341272200 COVER , LOWER
42 H371211700 COVER
45 H371228202 COVER , FRONT
50 N010232114 Bolt
51 N010232138 BOLT
53 N010232438 BOLT
54 N010232462 Bolt
55 N010232798 Bolt
56 N010232822 BOLT
57 N010232846 BOLT
58 N023570206 NUT
59 N030560001 WASHER
60 N030560002 WASHER
61 N030560004 WASHER
62 N030810001 Washer
63 N030810014 Washer
64 N030810015 Washer
65 N042180374 SCREW
67 H251210101 PLUG
68 H341213603 SHIM
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
