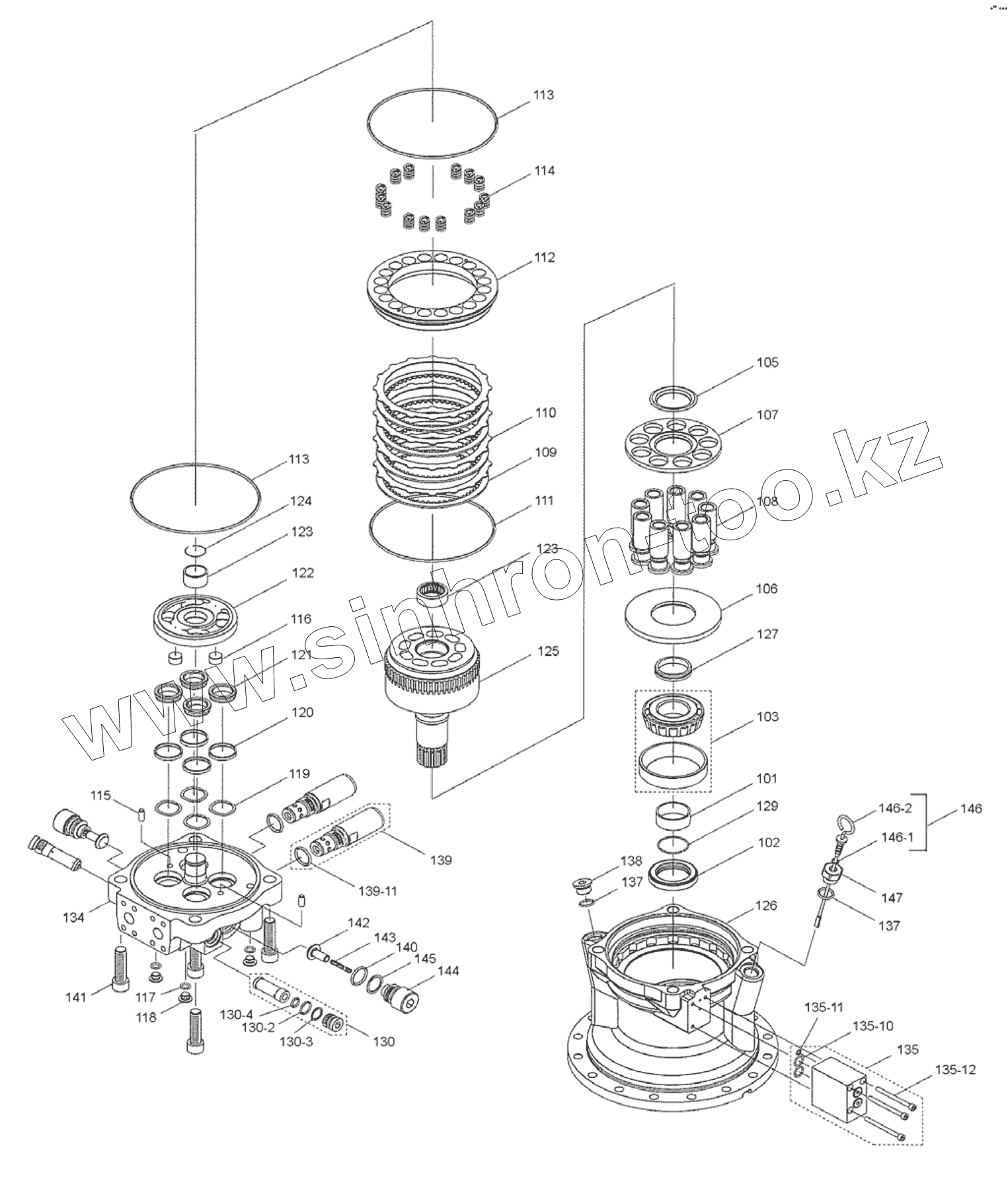

Каталог запасных частей к технике: Hidromek HMK 230LC3. SWING UNIT, MOTOR

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
101
102
103
105
106
107
108
109
110
111
112
113
113
114
115
116
117
118
119
120
121
122
123
123
124
125
126
127
129
130
130-2
130-3
130-4
134
135
135-10
135-11
135-12
137
137
138
139
139-11
140
141
142
143
144
145
146
146-1
146-2
147
Позиция на иллюстрации Заводской номер детали Название детали
H343001903 H343001903 MOTOR, HYDRAULIC
101 H349020001 Inner Ring
102 H349020002 Oil Seal
103 H349020003 Tapero Roller Being
105 H349020005 Backing, Spring
106 H349020006 Cam Plate
107 H349020007 Return Plate
108 H349020008A PISTON ASSY
109 H349020009 Lining Plate
110 H349020010 Plate
111 H349020056 O-RING
112 H349020012 Piston
113 H349020052 O-RING
114 H349020014 Spring
115 H349020015 Pallel Pin
116 H349020016 Piston
117 H349020059 O-RING
118 H349020018A PLUG
119 H349020019 Scrowave
120 H349020020 Teflon Ring
121 H349020021 Bush
122 H349020022A DISTRIBUTION PLATE
123 H349020023 Needle Being
124 H349020024 Snap Ring
125 H349020065 BLOCK
126 H349020064 HOUSING
127 H349020027 Coll
129 H349020029 Snap Ring
130 H349020030 Bypass Valve Ass'y
130-2 H349025043 O-Ring
130-3 H349020031 Back Up Ring
130-4 H349020060 O-RING
134 H349020034 Cover
135 H349020035A VALVE, TIME DELAY
135-10 H349020055 O-RING
135-11 H349020053 O-RING
135-12 H349020058 BOLT
137 H349025043 O-Ring
138 H309025028 PLUG
139 H349020051 VALVE, PRESSURE RELIEF
139-11 H349020062 O-RING
140 H349020062 O-RING
141 H349020057 BOLT
142 H349020042 Check
143 H349020043 Spring
144 H349020044 Cap
145 H349020063 BACK-UP RING
146 H349020068 DIPSTICK ASSY
146-1 H349020054 O-RING
146-2 H349020067 DIPSTICK
147 H349020066 CAP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
