STARTER
GENERATOR
ENGINE WIRING HARNESS
HARNESS FIXING PARTS
ELECTRIC CONTROL PARTS 1
ELECTRIC CONTROL PARTS 2
ELECTRIC CONTROL & OTHER PARTS
INLET MANIFOLD
EXHAUST MANIFOLD
TURBOCHARGER SYSTEM
EGR
EGR WATER PIPING

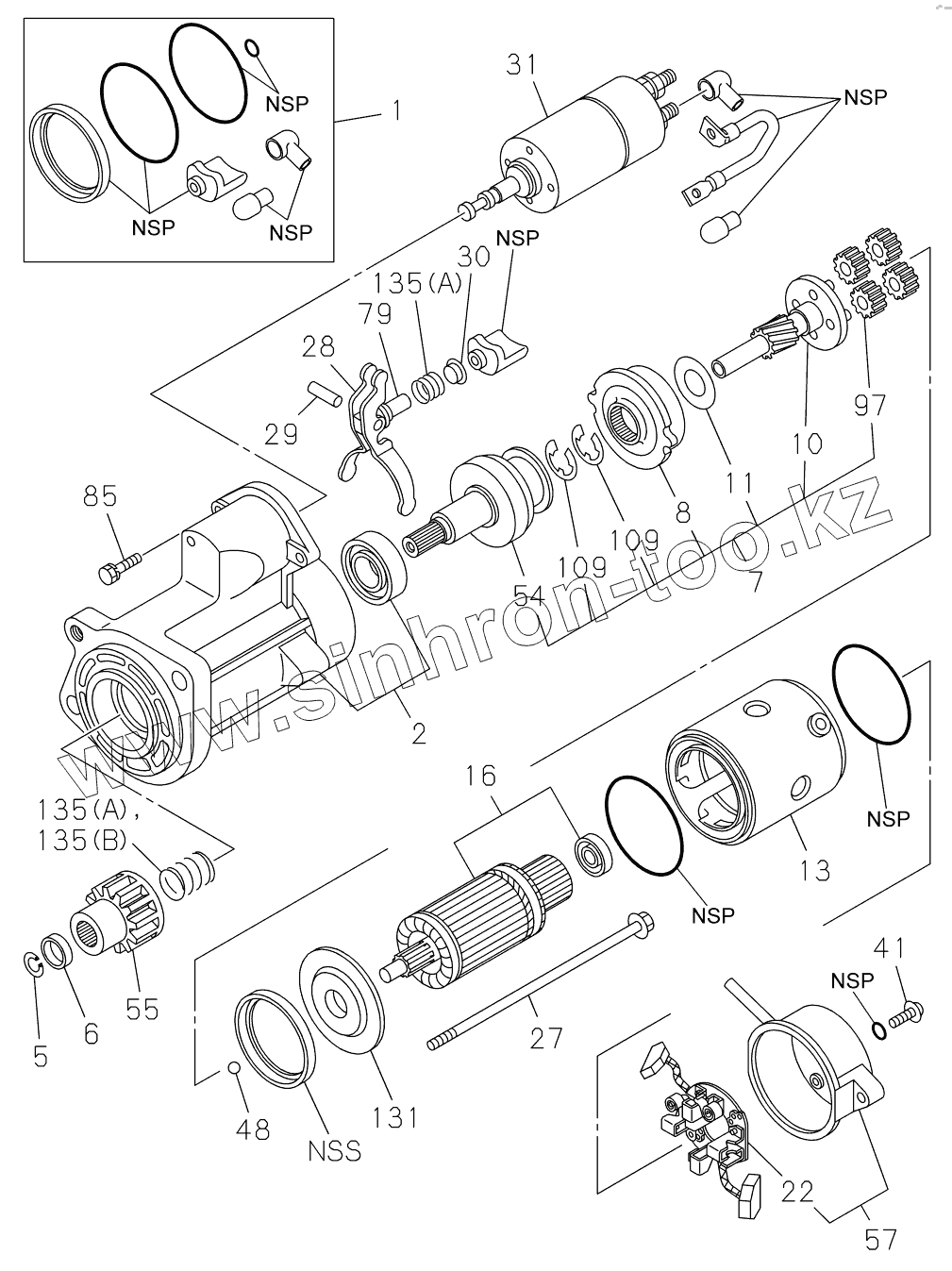

1
2
5
6
7
8
10
11
13
16
22
27
28
29
30
31
41
48
54
55
57
79
85
97
109
109
131
135
135
135
Позиция на иллюстрации
Заводской номер детали
Название детали
H349004139
H349004139
STARTER MOTOR ASSY
1
H349004480
KIT, SEAL, STARTER
2
H349004481
HOUSING
5
H349004482
CLAMP
6
H349004483
STOPPER
7
H349004484
CLUTCH ASSY
8
H349004485
BRACKET
10
H349004486
SHAFT
11
H349004487
WASHER
13
H349004488
SLEEVE
16
H349004489
ARMATURE
22
H349004490
HOLDER
27
H349004491
BOLT
28
H349004492
LEVER
29
H349004493
PIN
30
H349004494
HOLDER
31
H349004131
SOLENOID
41
H349004495
SCREW
48
H349004496
BALL
54
H349004497
CLUTCH
55
H349004498
GEAR, PINION
57
H349004499
COVER ASSY
79
H349004500
HOLDER
85
H349004501
BOLT
97
H349004502
GEAR
109
H349004503
WASHER
131
H349004504
COVER
135
H349004505
SPRING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
