Каталог запасных частей к технике: Hidromek HMK 230LC3. SOLENOID VALVE, 4 SECTION

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано ENGINE MOUNTING AIR INTAKE SYSTEM EXHAUST MOUNTING COOLING SYSTEM RADIATOR ASSY FUEL SYSTEM PRE-FUEL FILTER ASSY (OP) FUEL FEED PUMP ASSY AIRCONDITION AND HEATER MOUNTING AIRCONDITION AND HEATER UNIT UPPER FRAME AND UNDER COVER MOUNTING COUNTER WEIGHT MOUNTING COUNTER WEIGHT MOUNTING (LR) GUARD RAIL MOUNTING TOOL BOX MOUNTING ANTI-SLIP WALKWAY COWLING ASSY, RH DOOR MOUNTING, RH DOOR MOUNTING, RH, TROPICAL (OP) COWLING ASSY, LH DOOR MOUNTING, LH DOOR MOUNTING, LH, TROPICAL (OP) COWLING ASSY, M.C.V. ENGINE HOOD MOUNTING TANK COVER MOUNTING LOWER FRAME MOUNTING LOWER FRAME MOUNTING, WITH DOZER BLADE UPPER ROLLER ASSY (TYPE A) UPPER ROLLER ASSY (TYPE B) LOWER ROLLER ASSY (TYPE A) LOWER ROLLER ASSY (TYPE B) IDLER ASSY ADJUSTER ASSEMBLY TRACK CHAIN ASSY (600mm) TRACK CHAIN ASSY (500mm) TRACK CHAIN ASSY (700mm) TRACK CHAIN ASSY (800mm) TRACK CHAIN ASSY (600mm, DOUBLE GROUSER) DOZER BLADE MOUNTING (600mm) CAB AND CAB MOUNTING DOORS WINDOWS CAB ACCESSORIES CONSOLE ASSY, FRONT CONSOLE ASSY, REAR CONSOLE ASSY, RH CONSOLE ASSY, LH OPERATOR SEAT MOUNTING OPERATOR SEAT ASSY, WITH AIR SUSPENSION OPERATOR SEAT ASSEMBLY, WITH AIR SUSPENSION & HEATER (OP) PLATFORM ASSY ROOF GUARD MOUNTING, FOPS II (OP) FRONT GUARD MOUNTING, FOR ROCK, TWO PIECES, FOGS (OP) FRONT GUARD MOUNTING, FOR STONES & DEBRIS, FOGS (OP) FRONT GUARD MOUNTING, FOR STONES, TWO PIECES, FOGS (OP) FRONT GUARD MOUNTING, FOR ROCK & STONES, TWO PIECES, FOGS (OP) VISOR (OP) BOOM MOUNTING BOOM MOUNTING, 2 PIECES (5.6m) BOOM MOUNTING (LR) BOOM ASSY (5.7m) BOOM ASSY, 2 PIECES (5.6m) BOOM ASSY (8.5m, LR) ARM MOUNTING ARM MOUNTING (LR) ARM ASSY (2.92m) ARM ASSY (2.4m) ARM ASSY (6.1m, LR) ARM ASSY (3.5m) BUCKET LINKAGE BUCKET LINKAGE (LR) LINK (SINGLE STOPPER) (OP) LINK (DOUBLE STOPPER) (OP) BUCKET, DUAL RADIUS (1.1m3) BUCKET, DUAL RADIUS (1.3m3) BUCKET, DUAL RADIUS (1.2m3) BUCKET, DUAL RADIUS (1.0m3) BUCKET, DUAL RADIUS (0.9m3) BUCKET, DUAL RADIUS (0.82m3) BUCKET, DUAL RADIUS (0.68m3) BUCKET, DUAL RADIUS (0.54m3) BUCKET, DUAL RADIUS (0.4m3) BUCKET, DUAL RADIUS (0.6m3, LR) BUCKET, DUAL RADIUS (0.45m3, LR) BUCKET, GENERAL PURPOSE (1.2m3) BUCKET, GENERAL PURPOSE (1.0m3) BUCKET, GENERAL PURPOSE (0.84m3) BUCKET, GENERAL PURPOSE (0.69m3) BUCKET, GENERAL PURPOSE (0.54m3) BUCKET, GENERAL PURPOSE (0.41m3, OP) BUCKET, ROCK TYPE (1.0m3) BUCKET, ROCK TYPE (0.85m3) BUCKET, DITCH CLEANING (1.3m3) BUCKET, DITCH CLEANING (0.97m3) BUCKET, DITCH CLEANING (0.45m3, LR) BUCKET, SKELETON (1.0m3) BUCKET, TRAPEZOID BUCKET, DUAL RADIUS (0.5m3, LR) BUCKET, GENERAL PURPOSE (1.3m3, LR) QUICK COUPLER ASSY (OP) QUICK COUPLER ASSY, MECHANIC (OP) BREAKER MOUNTING (B230, OP) BREAKER ASSY (B230, OP) RIPPER (OP) LOG ATTACHMENT (OP) BUCKET CYLINDER GUARD (OP) BOOM CYLINDER GUARD (OP) HYDRAULIC PUMP MOUNTING HYDRAULIC TANK ASSY UPPER FRAME HYD. PIPING, BASE UPPER FRAME HYD. PIPING, ATTACHMENT UPPER FRAME HYD. PIPING, TRAVEL&SWING UPPER FRAME HYD. PIPING, BASE, WITH DOZER BLADE UPPER FRAME HYD. PIPING, ATTACHMENT, WITH DOZER BLADE UPPER FRAME HYD. PIPING, TRAVEL&SWING, WITH DOZER BLADE UPPER FRAME HYD. PIPING, BASE, 2 PIECES BOOM UPPER FRAME HYD. PIPING, ATTACHMENT, 2 PIECES BOOM UPPER FRAME HYD. PIPING, TRAVEL&SWING, 2 PIECES BOOM (1) UPPER FRAME HYD. PIPING, TRAVEL&SWING, 2 PIECES BOOM (2) UPPER FRAME HYD. PIPING, BASE, WITH DOZER BLADE, 2 PIECES BOOM UPPER FRAME HYD. PIPING, ATTACHMENT, WITH DOZER BLADE, 2 PIECES BOOM UPPER FRAME HYD. PIPING, TRAVEL&SWING, WITH DOZER BLADE, 2 PIECES BOOM (1) UPPER FRAME HYD. PIPING, TRAVEL&SWING, WITH DOZER BLADE, 2 PIECES BOOM (2) DRAIN AND RETURN HYD. PIPING LOWER FRAME HYD. PIPING (TYPE A) LOWER FRAME HYDRAULIC PIPING, TRAVEL LOWER FRAME HYDRAULIC PIPING, DOZER PILOT HYD. PIPING, BASE (1) PILOT HYD. PIPING, BASE (2) PILOT HYD. PIPING, ATTACHMENT (1) PILOT HYD. PIPING, ATTACHMENT (2) PILOT HYD. PIPING, M.C.V. PILOT HYD. PIPING, WITH DOZER BLADE ATTACHMENT HYD. PIPING, BOOM (5.7m) ATTACHMENT HYD. PIPING, TWO PIECES BOOM (OP) ATTACHMENT HYD. PIPING, LR BOOM (8.5m OP) ATTACHMENT HYD. PIPING, ARM (2.4m) ATTACHMENT HYD. PIPING, TWO PIECES BOOM (OP) ATTACHMENT HYD. PIPING, ARM (3.5m) ATTACHMENT HYD. PIPING, LR ARM (6.1m) SINGLE ACTING HYD. PIPING, WITH PEDAL CONTROL, FRAME (OP) SINGLE ACTING HYD. PIPING, WITH PEDAL CONTROL, TWO PIECES BOOM, FRAME (OP) SINGLE/DOUBLE ACTING HYD. PIPING, WITH JOYSTICK CONTROL, BOOM (OP) SINGLE/DOUBLE ACTING HYD. PIPING, WITH JOYSTICK CONTROL, 2 PIECES BOOM (OP) SINGLE/DOUBLE ACTING HYD. PIPING, WITH JOYSTICK CONTROL, ARM (2.4m) (OP) SINGLE/DOUBLE ACTING HYD. PIPING, WITH JOYSTICK CONTROL, ARM (2.92m) (OP) SINGLE/DOUBLE ACTING HYD. PIPING, WITH JOYSTICK CONTROL, ARM (3.5m) (OP) DOUBLE ACTING HYD. PIPING, WITH JOYSTICK CONTROL, FRAME (OP) DOUBLE ACTING HYD. PIPING, WITH JOYSTICK CONTROL, HIGH FLOW, FRAME (OP) DOUBLE ACTING HYD. PIPING, WITH JOYSTICK CONTROL, FRAME (2 PIECES BOOM, OP) DOUBLE ACTING HYDRAULIC INSTALLATION, JOYSTICK CONTROLLED, TWO PIECE BOOM, HIGH FLOW, CHASSIS (OP) QUICK COUPLER HYD. PIPING, BOOM, 40-250/250-250 BAR (OP) QUICK COUPLER HYD. PIPING, ARM, 40-250/250-250 BAR (OP) QUICK COUPLER HYD. PIPING, FRAME, 40-250 BAR (OP) QUICK COUPLER HYD. PIPING, FRAME, 250-250 BAR (OP) ADDITIONAL LINE HYD. PIPING, WITH JOYSTICK CONTROL, BOOM (OP) ADDITIONAL LINE HYD. PIPING, WITH JOYSTICK CONTROL, 2 PIECES BOOM (OP) ADDITIONAL LINE HYD. PIPING, WITH JOYSTICK CONTROL, ARM (2.3m) (OP) ADDITIONAL LINE HYD. PIPING, WITH JOYSTICK CONTROL, ARM (2.92m) (OP) ADDITIONAL LINE HYD. PIPING, WITH JOYSTICK CONTROL, ARM (3.5m) (OP) ADDITIONAL LINE HYD. PIPING, WITH JOYSTICK CONTROL, FRAME (OP) ADDITIONAL LINE HYD. PIPING, WITH JOYSTICK CONTROL, FRAME (WITH DOZER, OP) ATTACHMENT GREASE LUB SYSTEM, BOOM ATTACHMENT GREASE LUB SYSTEM, 2 PIECES BOOM ATTACHMENT GREASE LUB SYSTEM, ARM (2.4m) ATTACHMENT GREASE LUB SYSTEM, ARM (2.92m) ATTACHMENT GREASE LUB SYSTEM, ARM (3.5m) ATTACHMENT GREASE LUB SYSTEM (LR) CENTRALIZED LUBRICATION SYSTEM 1 CENTRALIZED LUBRICATION SYSTEM 2 BOOM SAFETY LOCK SYSTEM (OP) ARM SAFETY LOCK SYSTEM (OP) OVERLOAD WARNING SYSTEM (WITH RELIEF VALVE, OP) OVERLOAD WARNING SYSTEM (WITHOUT RELIEF VALVE, OP) HYDRAULIC PUMP GEAR PUMP PROPORTIONAL REDUCING VALVE PUMP REGULATOR GEAR PUMP, STEERING & BRAKE MAIN CONTROL VALVE (1) MAIN CONTROL VALVE (2) MAIN CONTROL VALVE (3) MAIN CONTROL VALVE (4) SWING UNIT SWING UNIT, MOTOR SWING UNIT, REDUCTION GEAR TRAVEL UNIT (TYPE A) TRAVEL UNIT, MOTOR (TYPE A) TRAVEL UNIT, REDUCTION GEAR (TYPE A) TURNING JOINT TURNING JOINT, WITH DOZER BLADE JOYSTICK, RH JOYSTICK, LH JOYSTICK, RH (OP) JOYSTICK, LH (OP) JOYSTICK, DOZER & OUTRIGGER (OP) TRAVEL PEDAL VALVE DOUBLE ACTING PEDAL AND VALVE (OP) SOLENOID VALVE, 1 SECTION SOLENOID VALVE, 1 SECTION (REGENERATIVE VALVE) SOLENOID VALVE, 2 SECTION QUICK COUPLER VALVE (40/250) QUICK COUPLER VALVE (250/250) SOLENOID VALVE, 4 SECTION BOOM CYLINDER, RH BOOM CYLINDER, LH ARM CYLINDER BUCKET CYLINDER QUICK COUPLER CYLINDER (OP) DOZER CYLINDER, RH (OP) DOZER CYLINDER, LH (OP) ELECTRIC PARTS (1) ELECTRIC PARTS (2) ELECTRIC PARTS (3) MAIN HARNESS ENGINE HARNESS, FRAME OPERATOR CAB HARNESS OPERATOR CAB INTERIOR HARNESS BEACON LAMP MOUNTING (OP) BEACON LAMP MOUNTING, WITH LED (OP) LIGHTING GROUP, WITH HALOGEN LIGHTING GROUP, WITH LED SMARTLINK (2G, OP) SMARTLINK (4.5G, OP) CAMERA MOUNTING, REAR VIEW (OP) CAMERA MOUNTING, SIDE VIEW (OP) WARNING HORN, TRAVEL (OP) ENGINE ROCKER ARM COVER CYLINDER HEAD 1 CYLINDER HEAD 2 CYLINDER BLOCK CYLINDER BLOCK ACCESSORIES CAM SHAFT & VALVE TIMING GEAR GEAR CASE COVER FLYWHEEL HOUSING CRANKSHAFT, PISTON & FLYWHEEL POWER TAKE OFF COVER ENGINE OVERHAUL GASKET KIT CYLINDER HEAD GASKET KIT OIL PAN OIL LEVEL GAUGE OIL FILTER & COOLER OIL PUMP & STRAINER OIL & VACUUM PIPING VENTILATION SYSTEM WATER PUMP THERMOSTAT FAN & FAN BELT FAN GUARD PULLEY FUEL FEED PUMP & ELECTROMAGNETIC PUMP INJECTION PUMP GASKET FUEL INJECTION SYSTEM 1 FUEL INJECTION SYSTEM 2 FUEL INJECTION SYSTEM 3 FUEL FILTER STARTER GENERATOR ENGINE WIRING HARNESS HARNESS FIXING PARTS ELECTRIC CONTROL PARTS 1 ELECTRIC CONTROL PARTS 2 ELECTRIC CONTROL & OTHER PARTS INLET MANIFOLD EXHAUST MANIFOLD TURBOCHARGER SYSTEM EGR EGR WATER PIPING

1

2

3

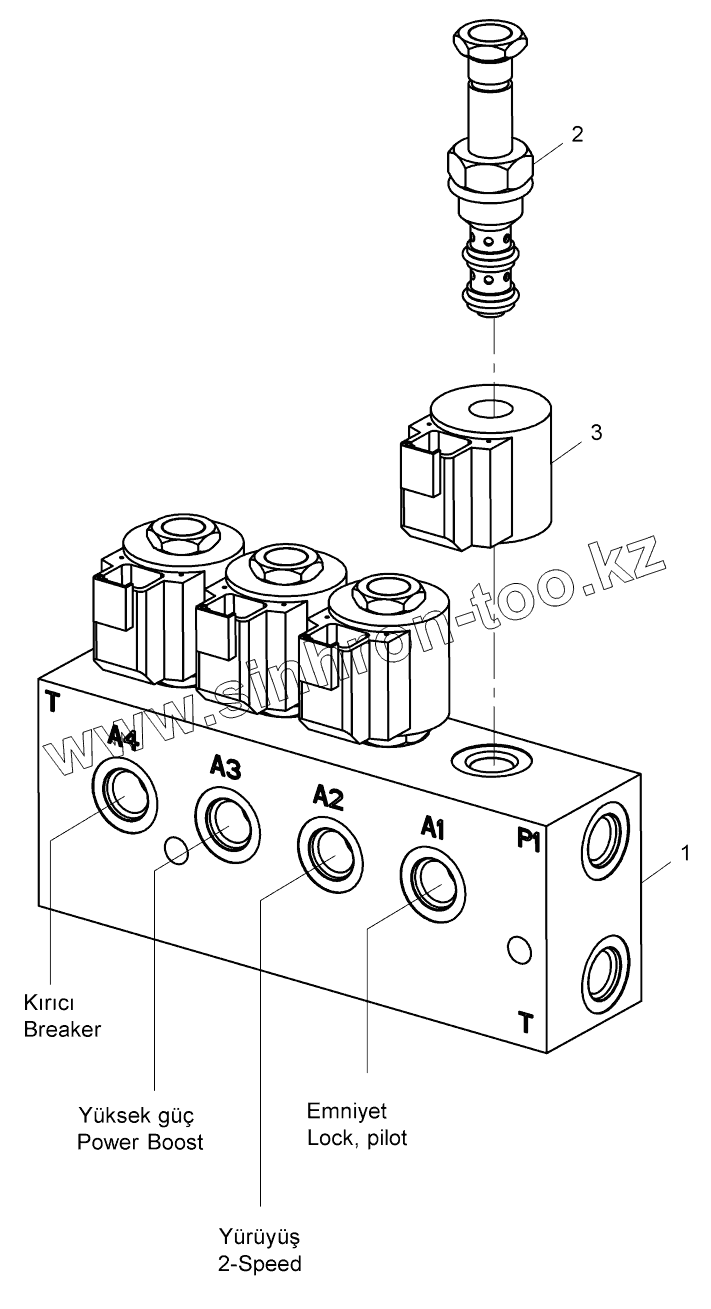

Позиция на иллюстрации	Заводской номер детали		Название детали
H343201502	H343201502		VALVE, DIRECTIONAL CTRL, SOLENOID
1	H349041014		HOUSING
2	H349041013		SOLENOID
3	H349041012		COIL

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
