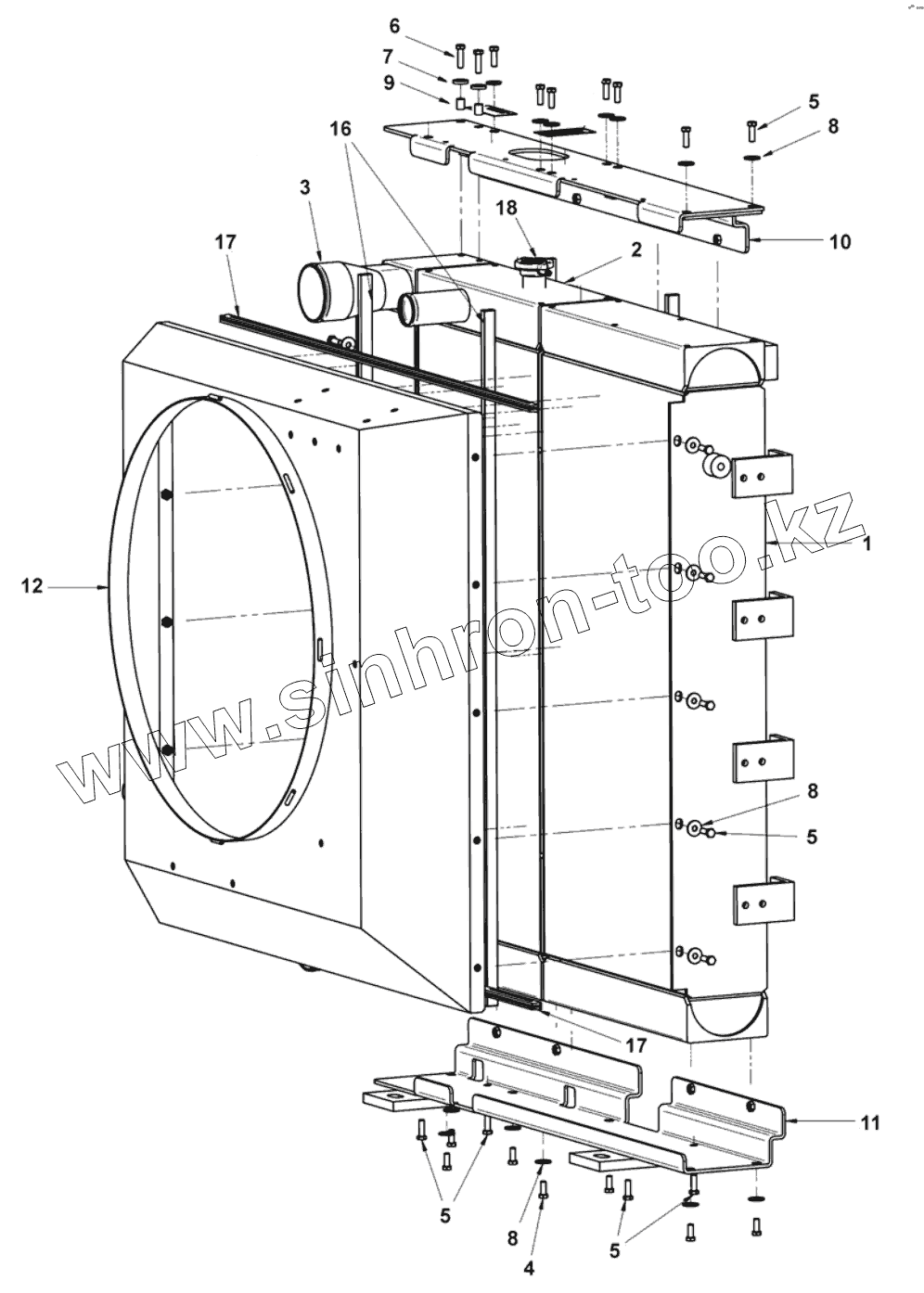

1
2
3
4
5
5
5
5
6
7
8
8
8
9
10
11
12
16
17
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
H342450103
H342450103
COOLER
1
H349061200A
OIL COOLER
2
H349061201A
WATER COOLER
3
H349061202B
INTERCOOLER
4
H349061203
BOLT
5
H349061204
BOLT
6
H349061205
BOLT
7
H349061206
NUT
8
H349061213
WASHER
9
H349061207A
SPACER
10
H349061209A
PLATE
11
H349061208A
PLATE
12
H349061215
SHROUD
16
H349061211
RUBBER PART
17
H349061212
WEATHER STRIP
18
H349061214
CAP, RADIATOR
